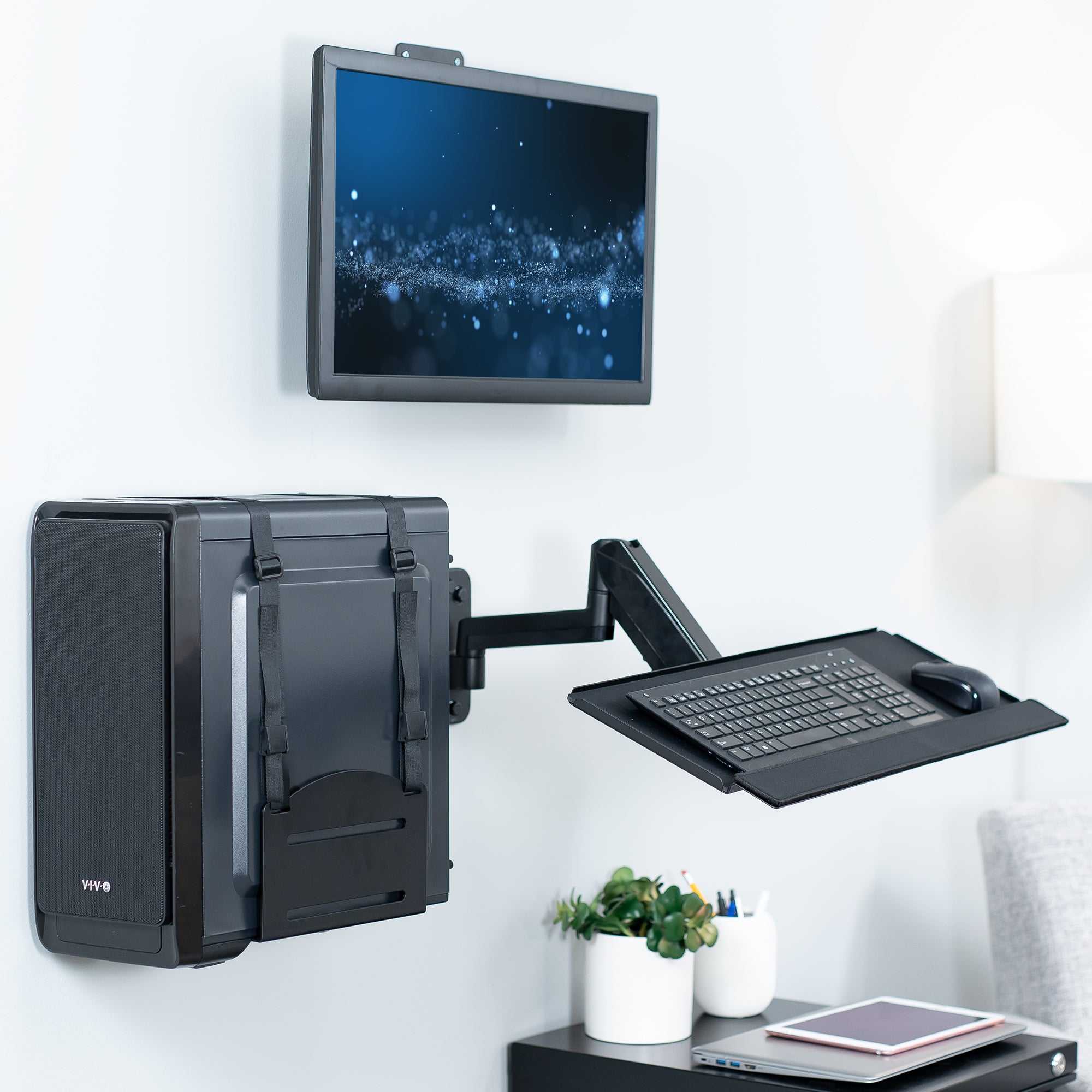

Single Monitor Wall Mount + Keyboard Tray Wall Mount + PC Wall Mount

Experience a complete wall-mounted sit-stand workstation with the Single Monitor Wall Mount + Keyboard Tray Wall Mount + PC Wall Mount (MOUNT-VWKB1P) from VIVO! Designed to make your work experience more convenient and ergonomic, this kit allows comfortable viewing and typing angles throughout the day. Our wall-mounted station allows you to switch to any position easily with its monitor sliding mechanism, screen articulation, and counterbalance tray adjustability. The sturdy PC holder can be installed in an easy-to-reach location close to your screen and keyboard. Compatible with most 17” to 32” monitors with standard VESA 75x75mm or 100x100mm hole patterns, this power kit is easy to install with all instructions and hardware provided.

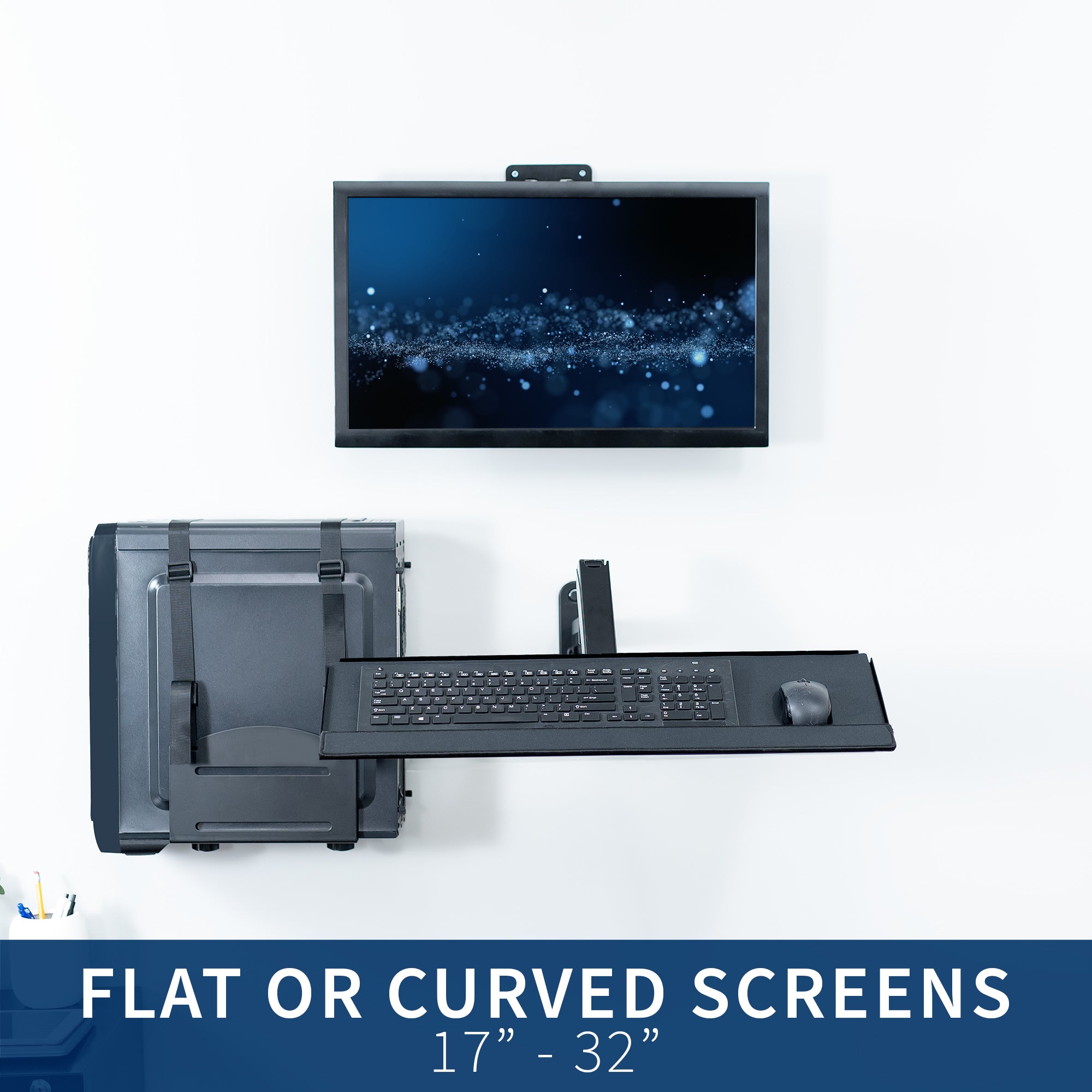

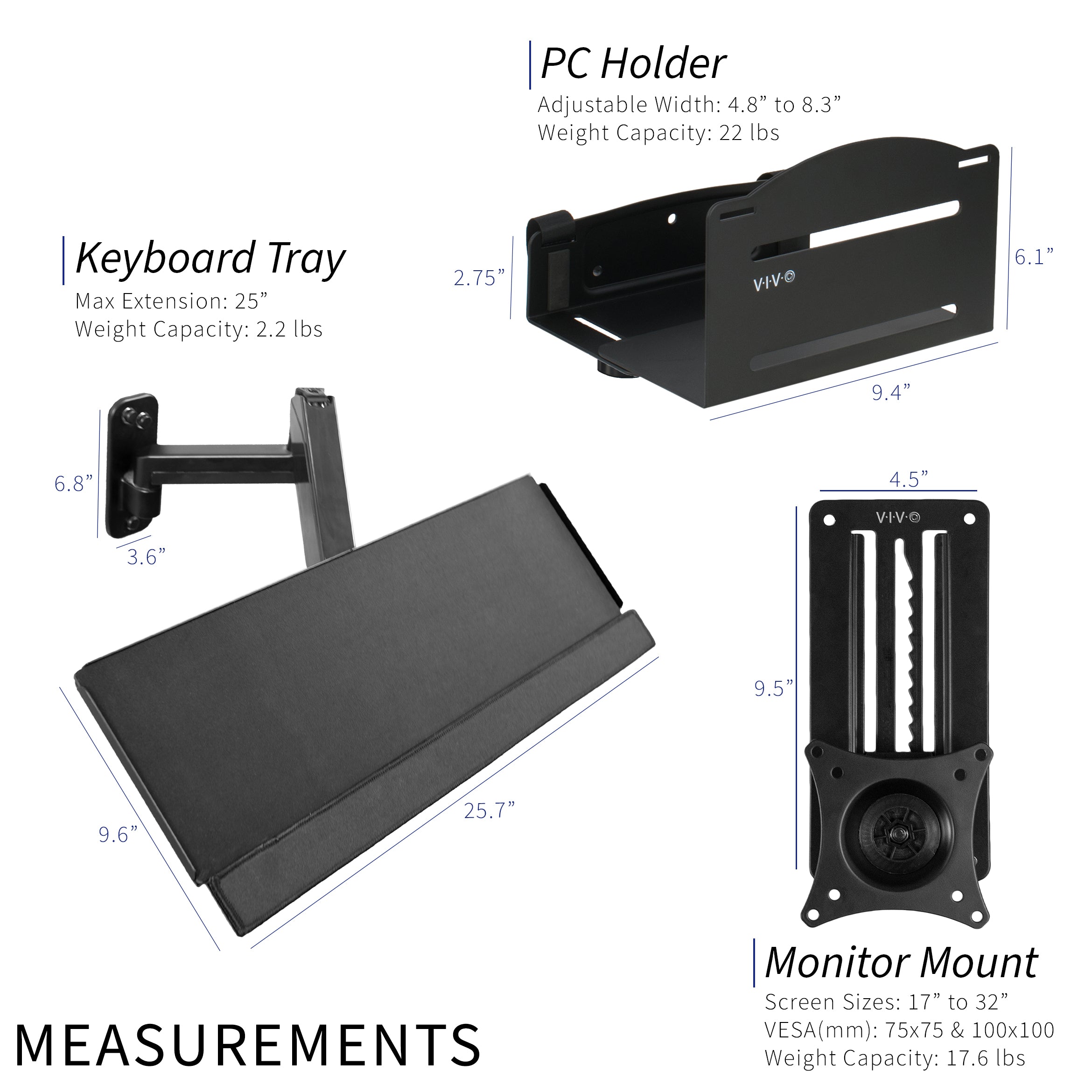

• Screen Sizes: 17” to 32”
• VESA Standard: 75x75mm and 100x100mm

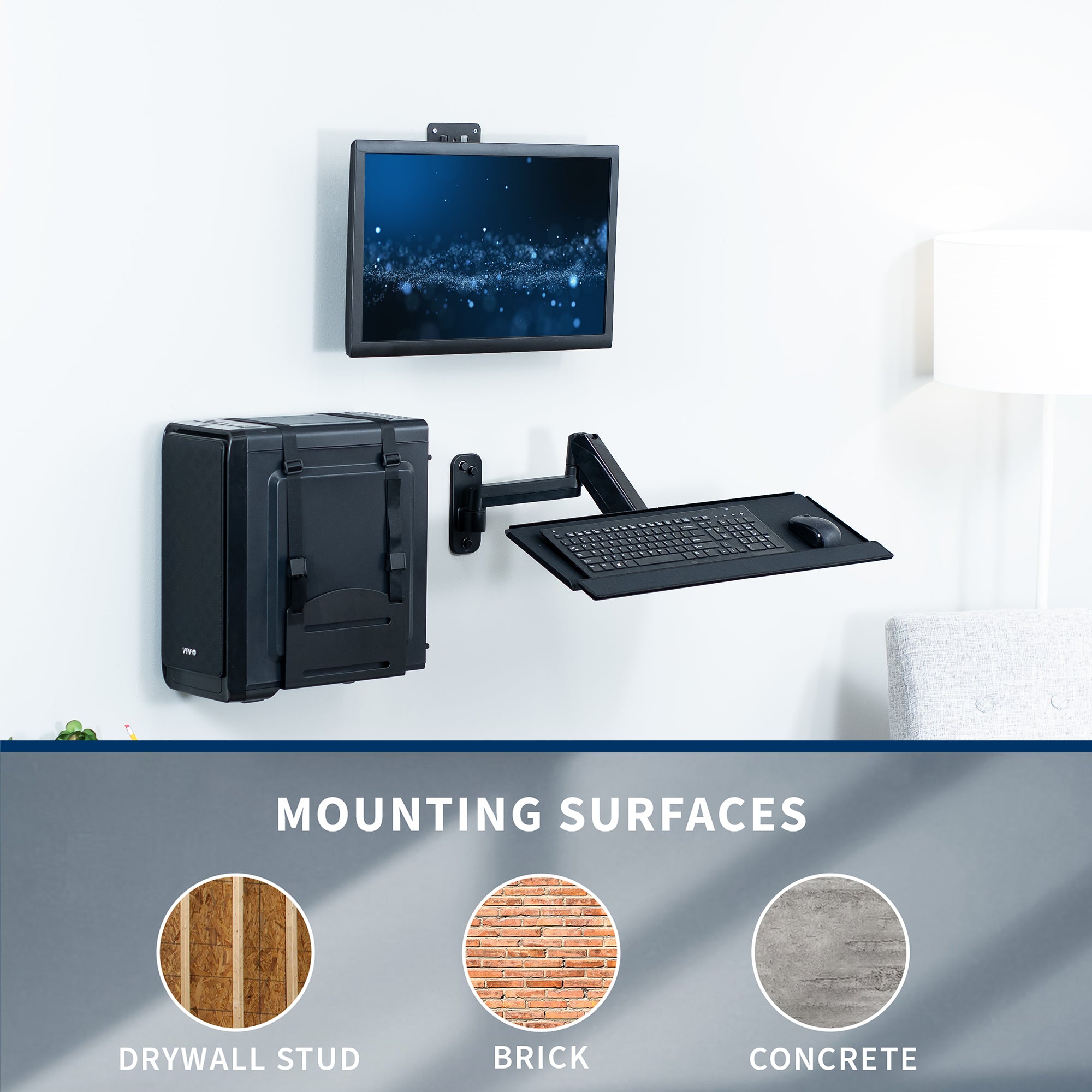

• Mounting Options: Wood Stud Installation, Brick/Concrete Installation
• Weight Capacity: 2.2 lbs (keyboard tray), 17.6 lbs (monitor mount), 22 (PC mount)

• --- Single Monitor Wall Mount ---
• Material: Steel
• Bracket Dimensions: 4.5” x 2” x 9.5”
• Screen Articulation: +10° to -10° tilt, 20° swivel, 360° rotation
• Height Adjustment Range: 6.3” (3.3” up and 3” down from center)
• Profile (distance from wall): 2”
• Screen Orientation: Portrait or Landscape

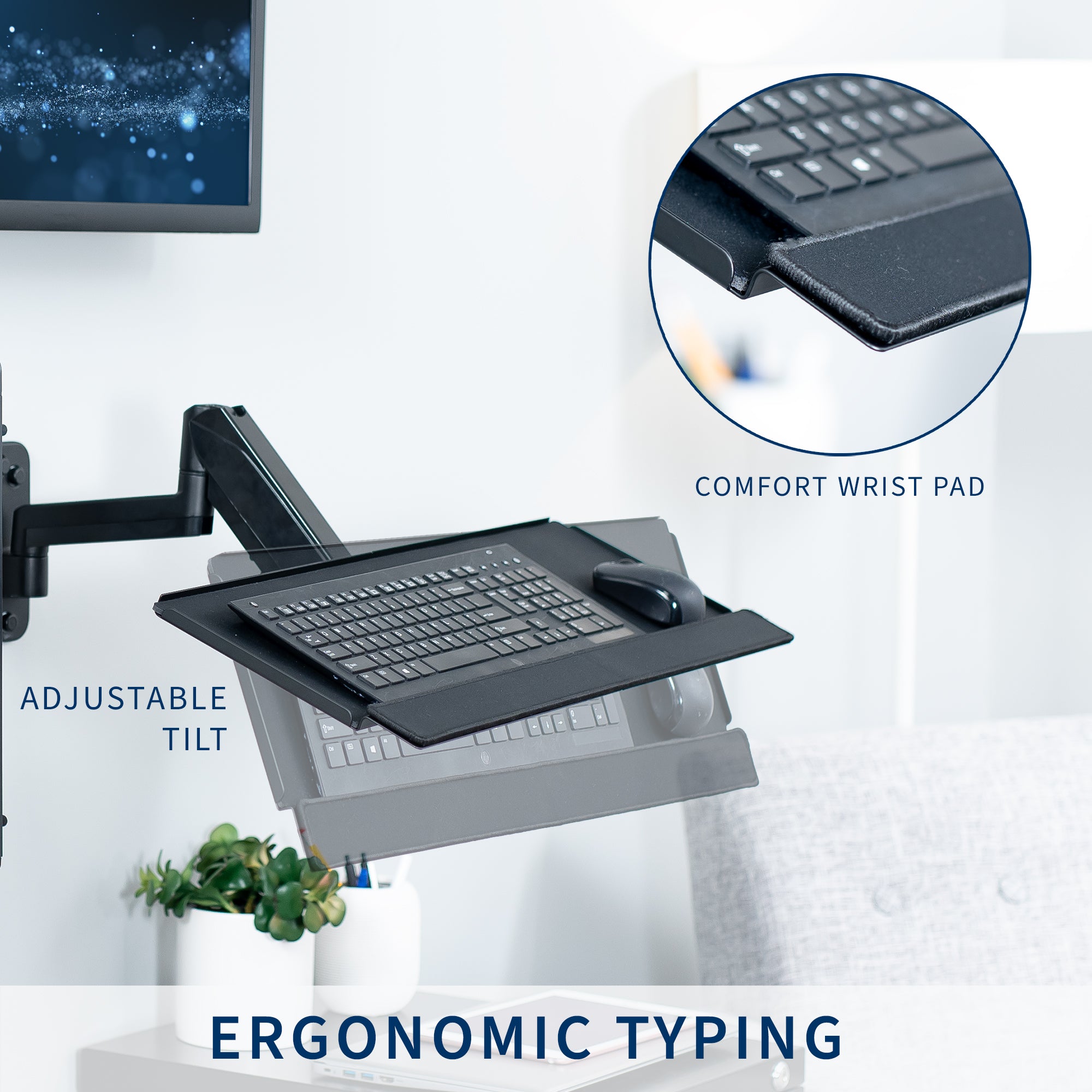

• --- Pneumatic Arm Keyboard Tray ---
• Material: Steel, Plastic, Foam
• Tray Dimensions: 25.7” x 9.6”
• Maximum Extension: 25”
• Profile (when folded): 4.5”
• Articulation: +5° to -20° tilt, 180° swivel
• Pneumatic Height Adjustment Range: 13”
• Mounting Base Dimensions: 3.6” x 6.8”

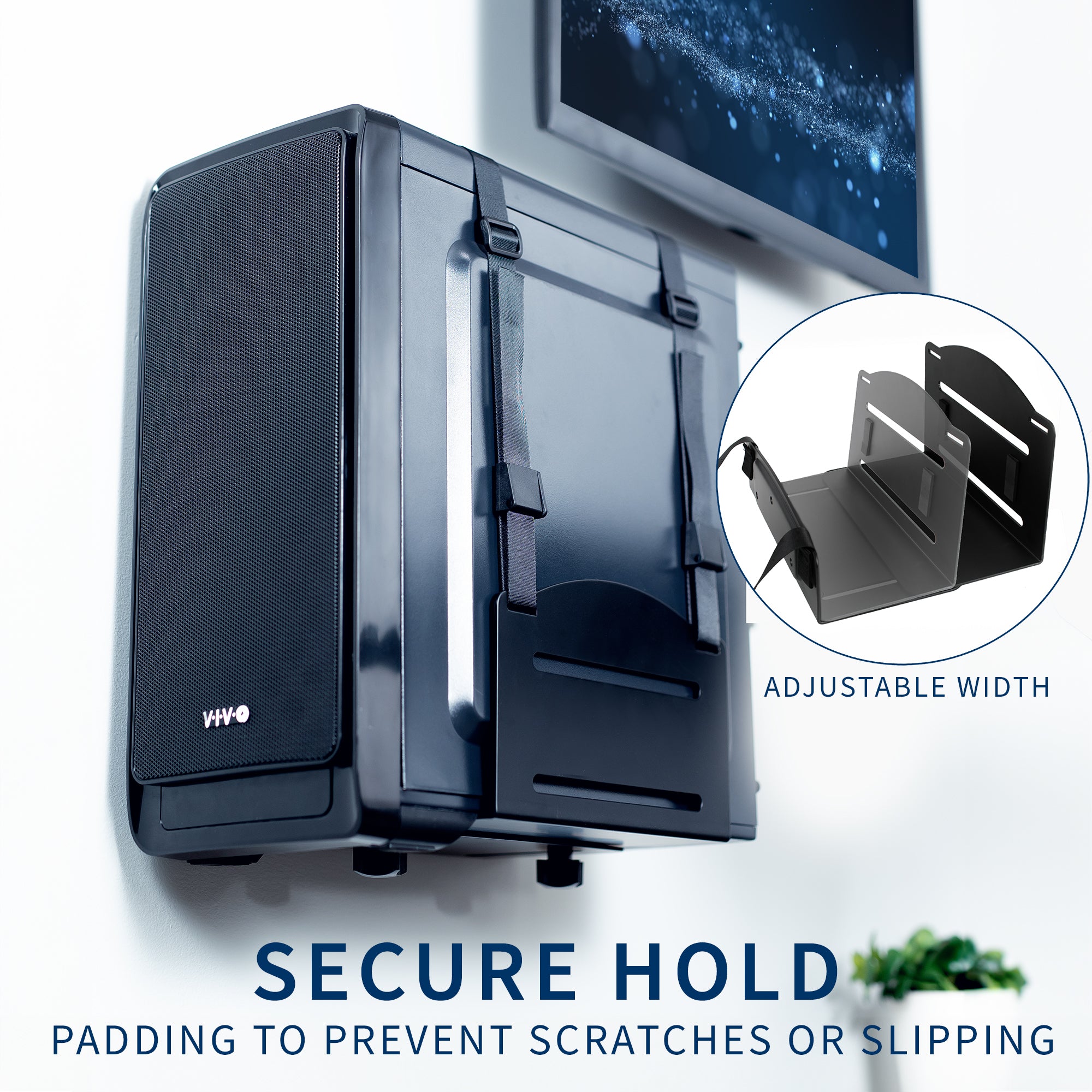

• --- PC Wall Mount ---
• Material: Steel, Nylon Straps
• Dimensions: 9.4” x (4.8” to 8.3”) x 6.1”
• Width Adjustment Range: 4.8” to 8.3”

• Assembly Manual PDF
