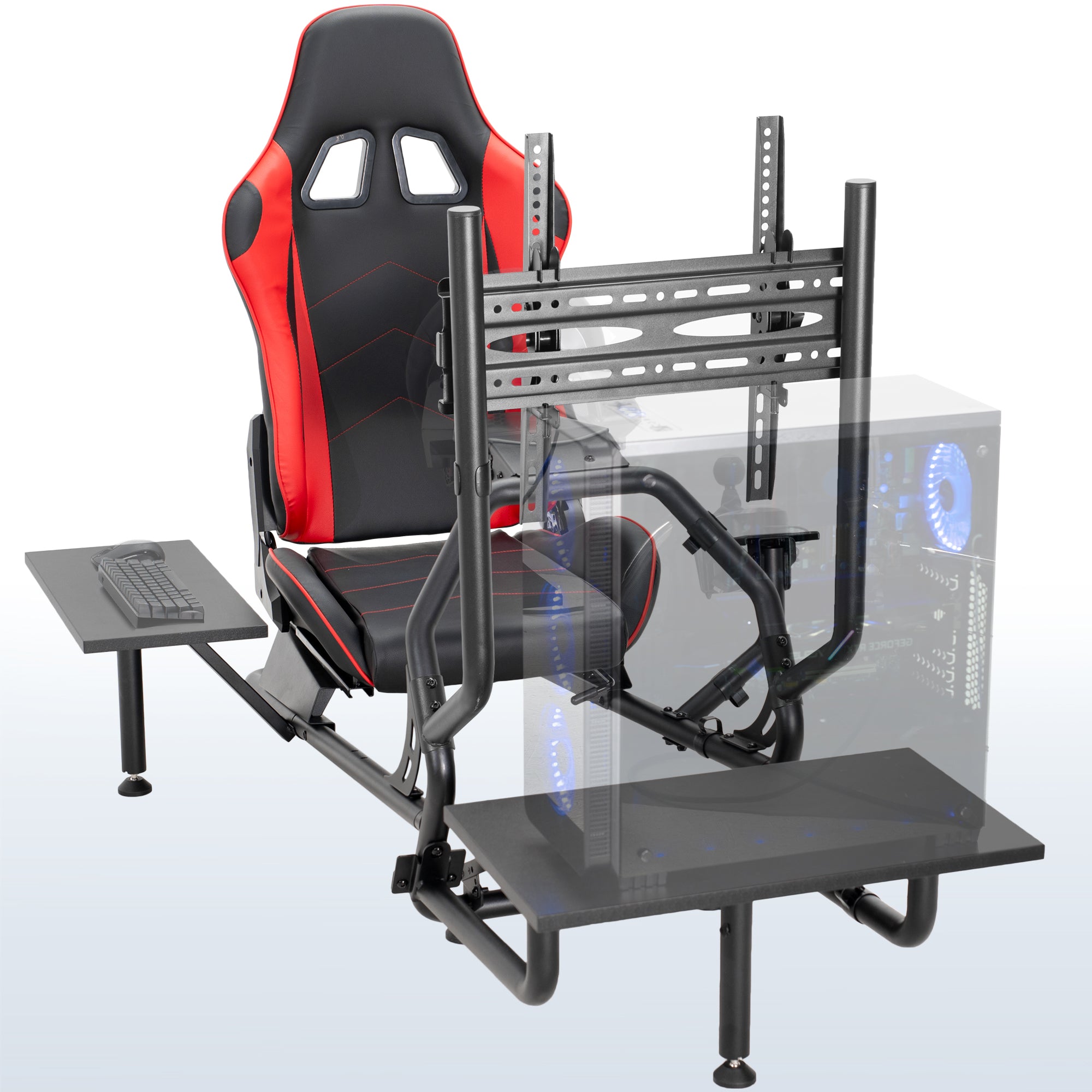

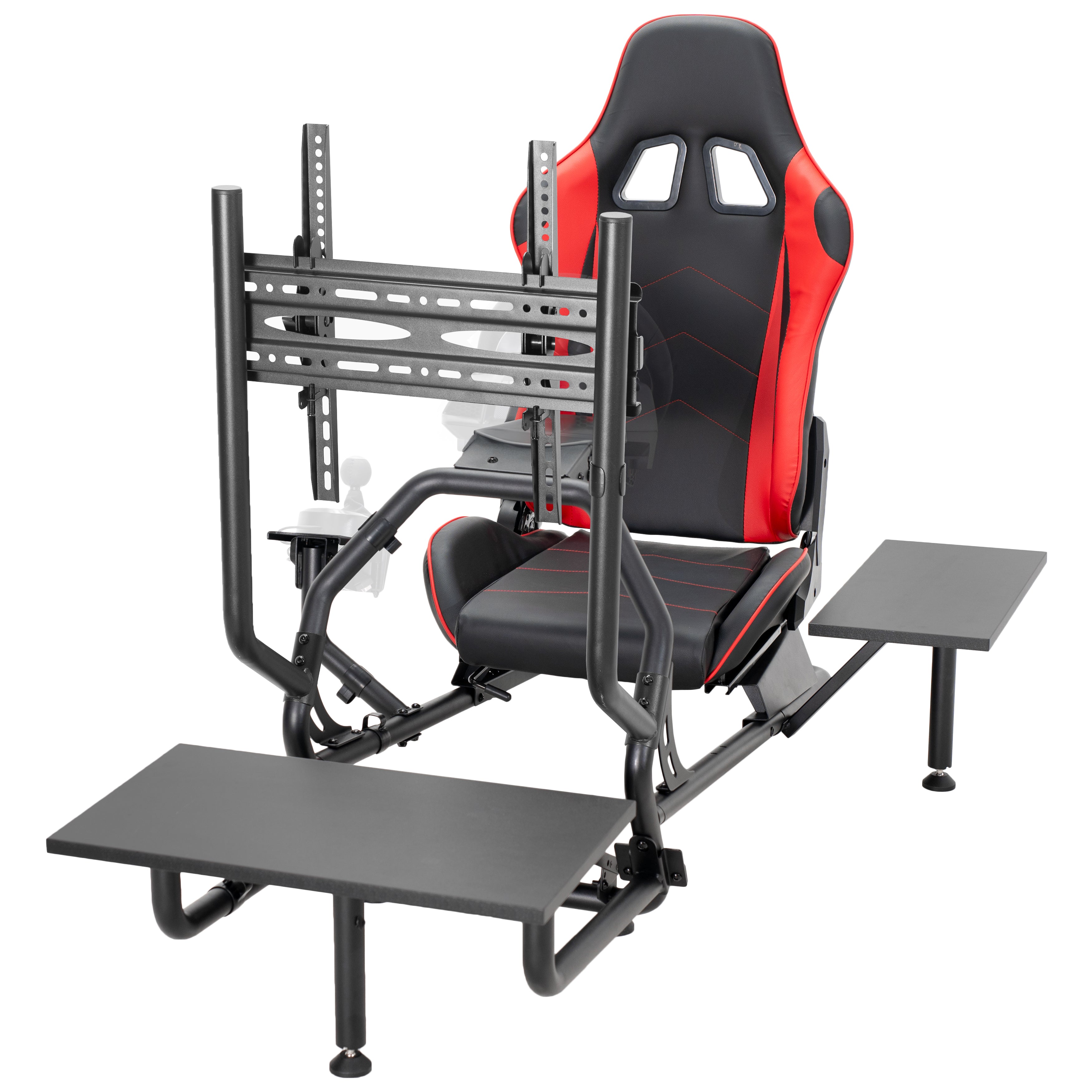

Racing Simulator Cockpit with TV Mount & Shelf Kit

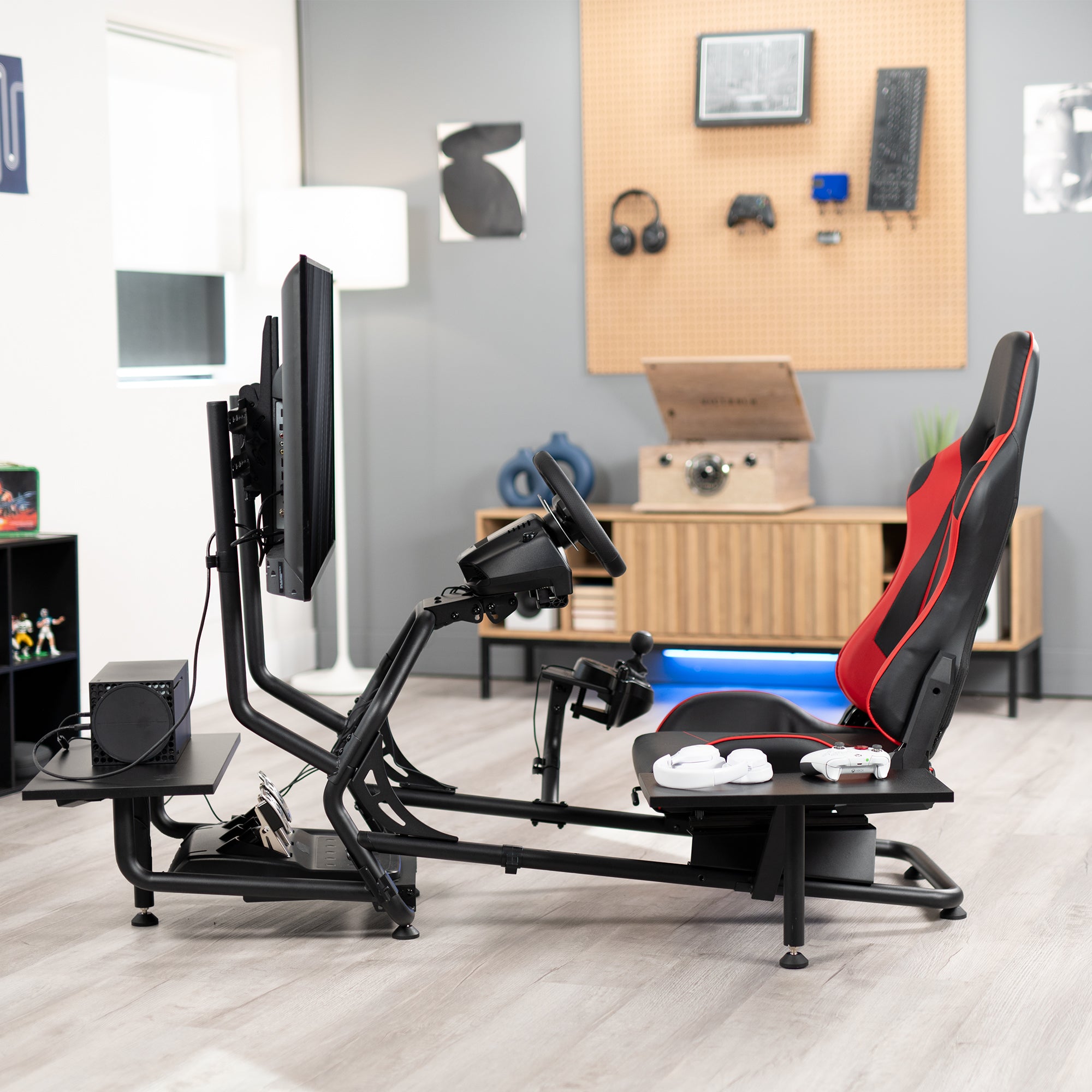

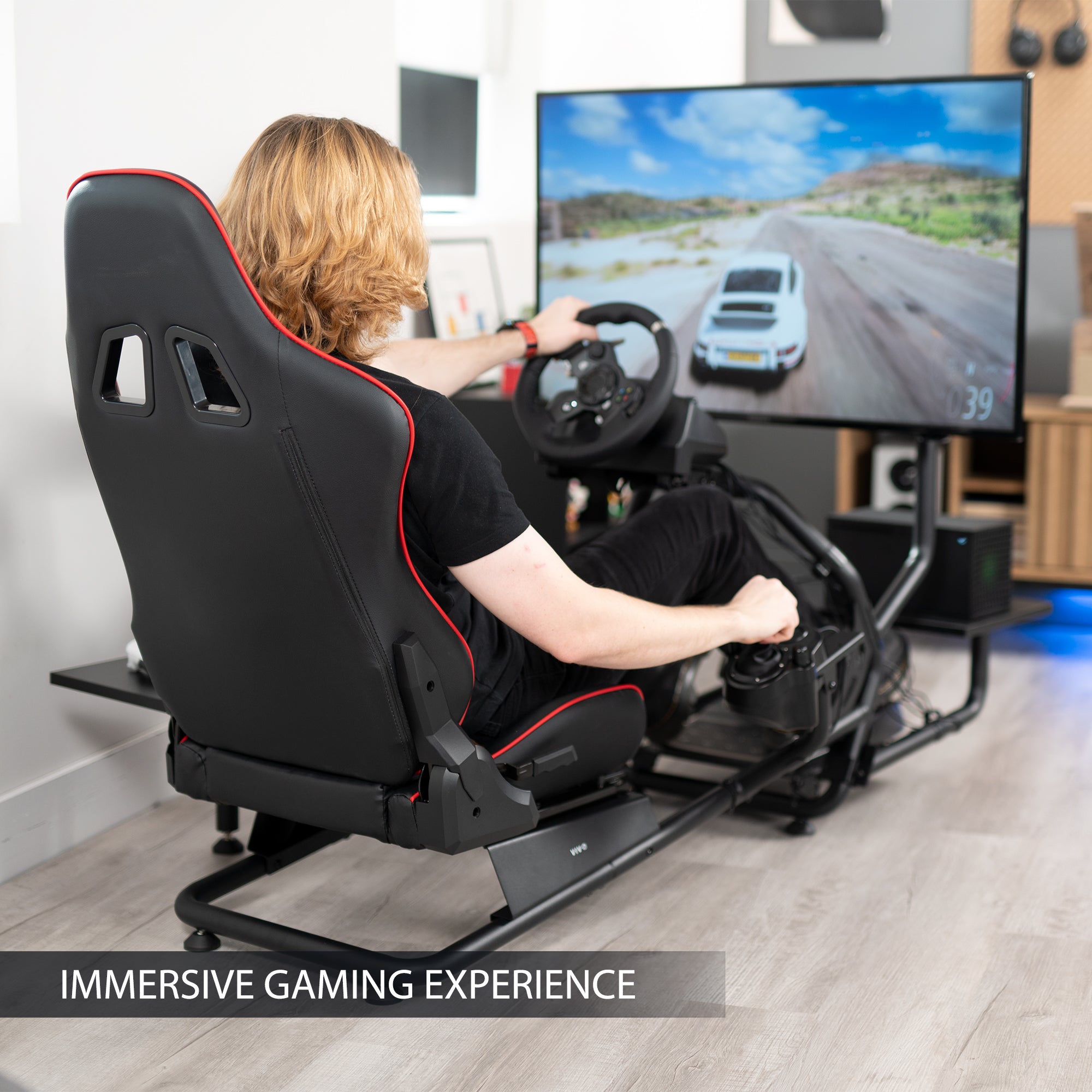

Give your gaming setup a whole new feel with the Racing Simulator Cockpit with TV Mount & Shelf Kit (STAND-KIT-RACE1BS) from VIVO! Spend your time on the racetrack in comfort with this seat designed for lumbar support and comfortable tilting angles. The solid steel frame is built for scratch resistance, security, and long-lasting use to accompany your gaming adventures for years to come. The adjustable design provides tilting capability on the wheel stand, TV mount, and chair, including forward and backward movement on the reclining seat. The single TV bracket anchors to the cockpit, making a solid mounting point for screens up to 50” in size. Add storage capability with a front-mounted PC shelf and left-side-mounted keyboard and mouse shelf that hold your gaming accessories off of the floor in an easy-to-reach location. All hardware and instructions are provided for assembly, so you can get your new simulator cockpit, TV mount, and shelves put together in no time!

• TV Mount Screen Size: 32” to 50” (flat and curved)
• VESA Compatibility: 100x100mm, 200x100mm, 200x200mm, 300x200mm, 400x200mm, 300x300mm, 400x300mm, 400x400mm

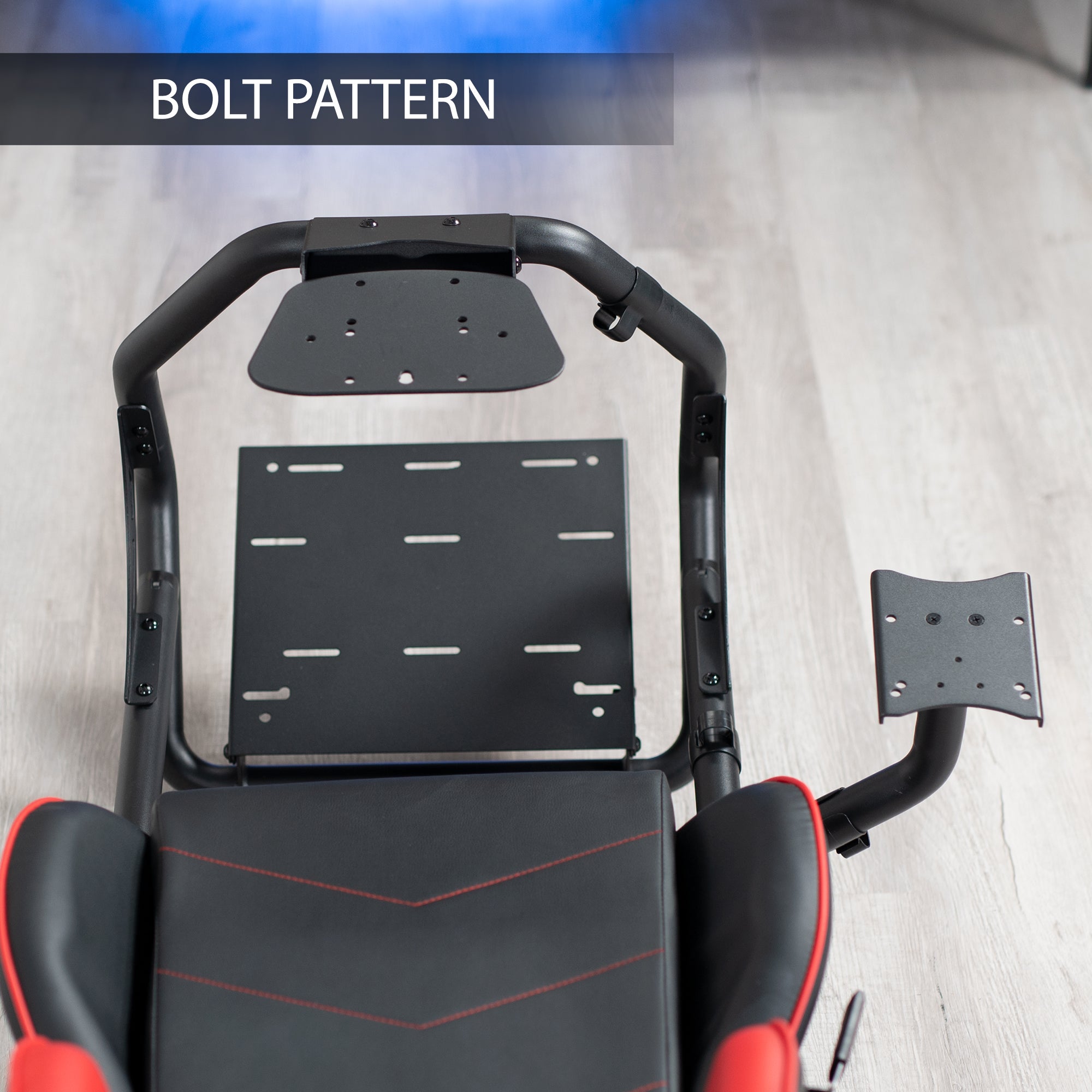

• Logitech: G25/G27/G29 wheels, G920 driving force shifter
• Thrustmaster: T300RS/T300GTE/T500RS wheels, TH8/TH8RS driving force shifter
• Fanatec: Clubsport (CS) wheel/CS Pedal/CS Handbrake/PORSCHE 911 GT2 wheel
• Gear Shift Installation: Right Hand Side
• Component Weight Capacity: 22 lbs (Wheel Mount), 77 lbs (TV Mount), 77 lbs (CPU Shelf), 17.6 lbs (Side Shelf)
• Total Weight Capacity: 220 lbs

• Material: Steel, Faux Leather, Particle Board, Plastic

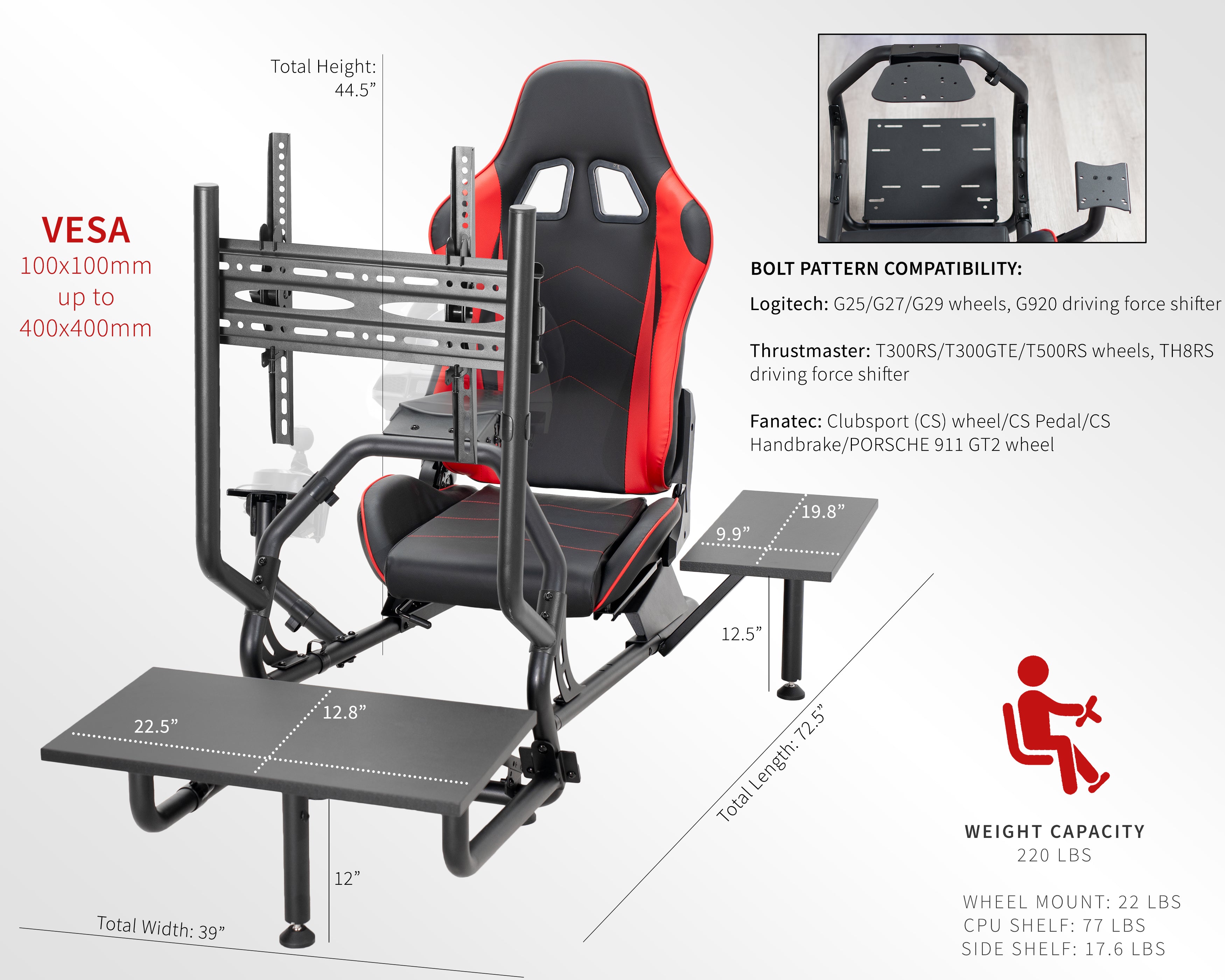

• Product Dimensions: 39” x 72.5” x 44.5”

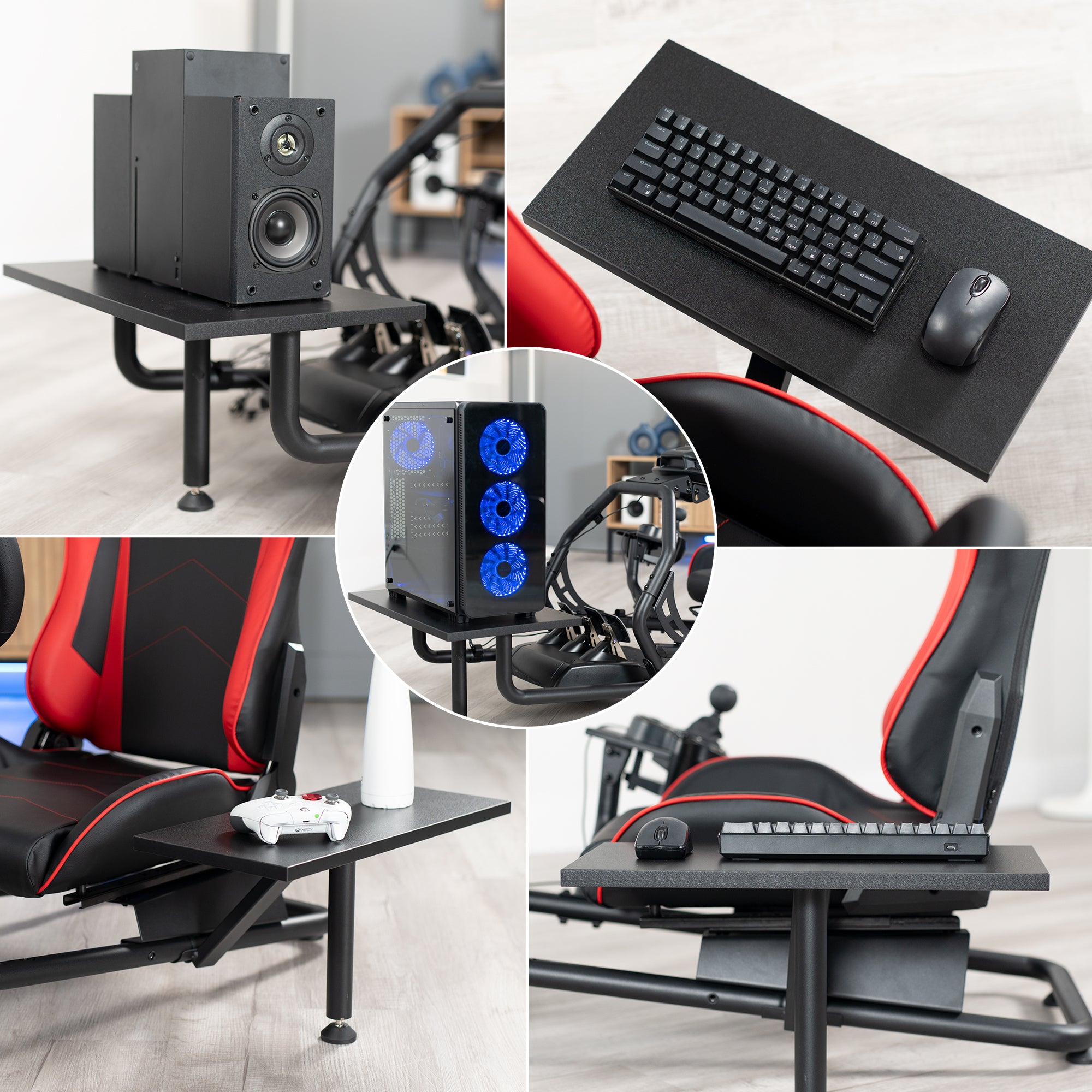

• Front CPU Shelf Dimensions: 22.5” x 12.8” x 12”
• Back of CPU Shelf to Front of Wheel Mount: 14.5”

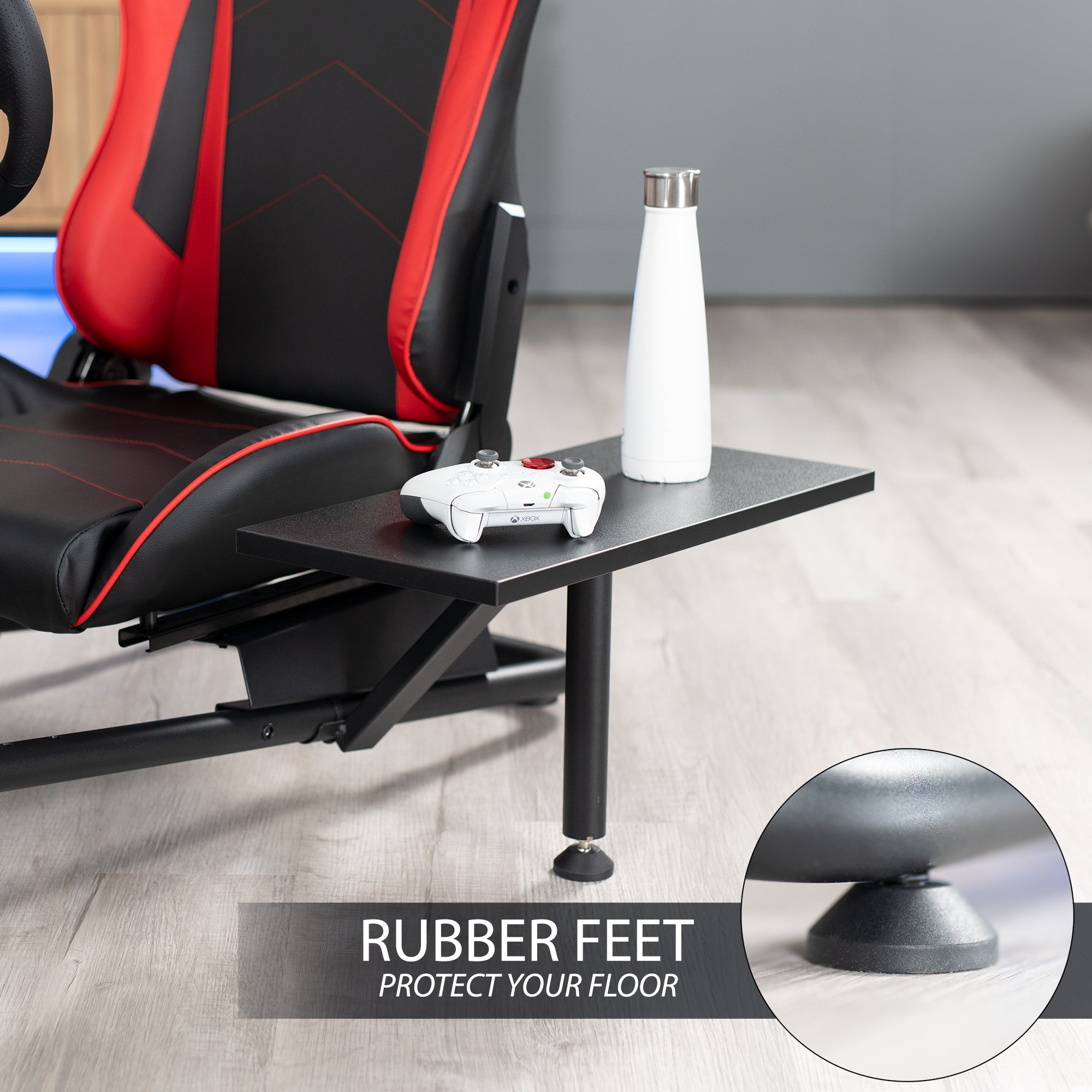

• Left-Side Shelf Dimensions: 19.8” x 9.9” x 12.5”
• Shelf Thickness: 0.75” (each)
• Seat Width: 14.5”
• Seat Gliding Track: 12.6”

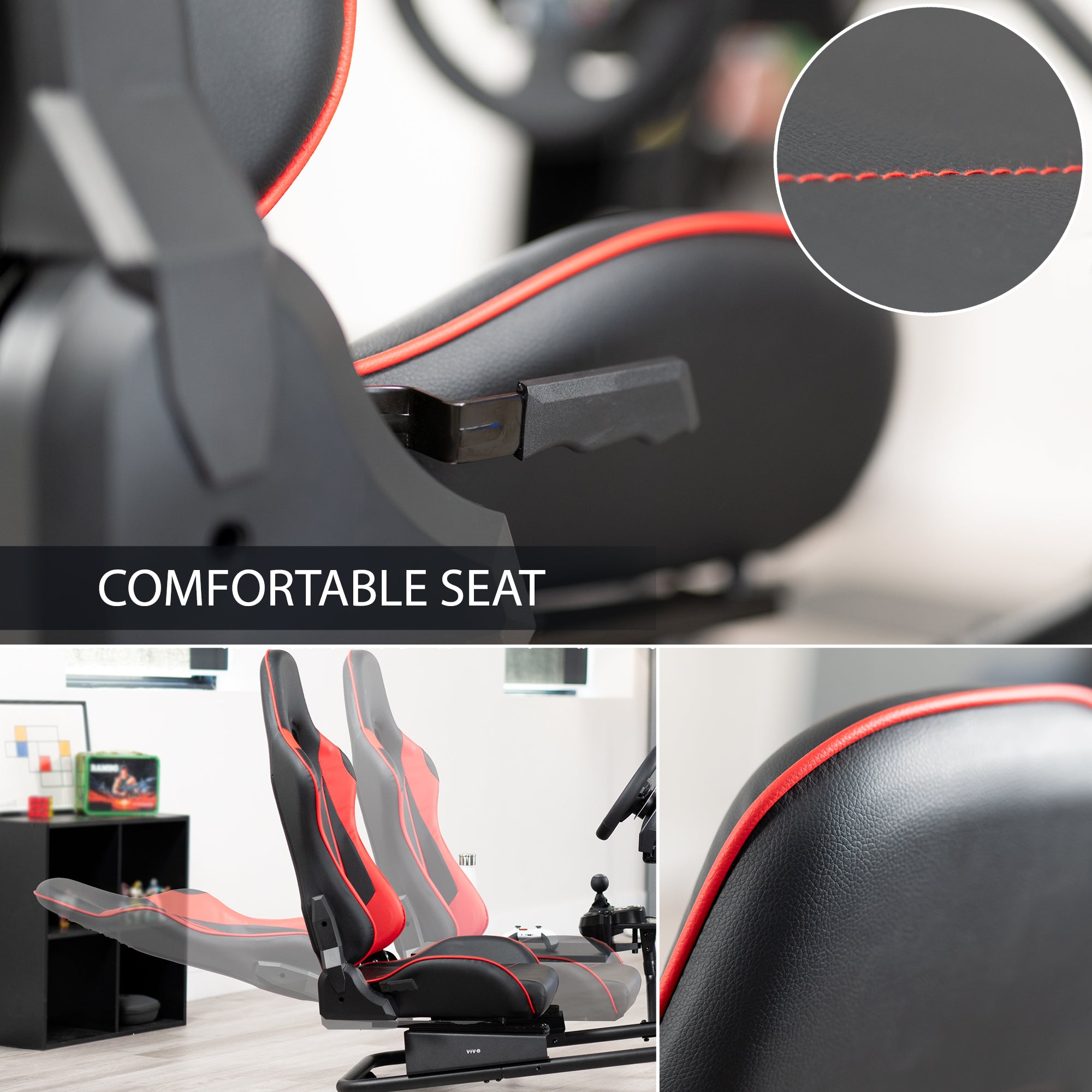

• Seat Back Tilt: 30° to 90°

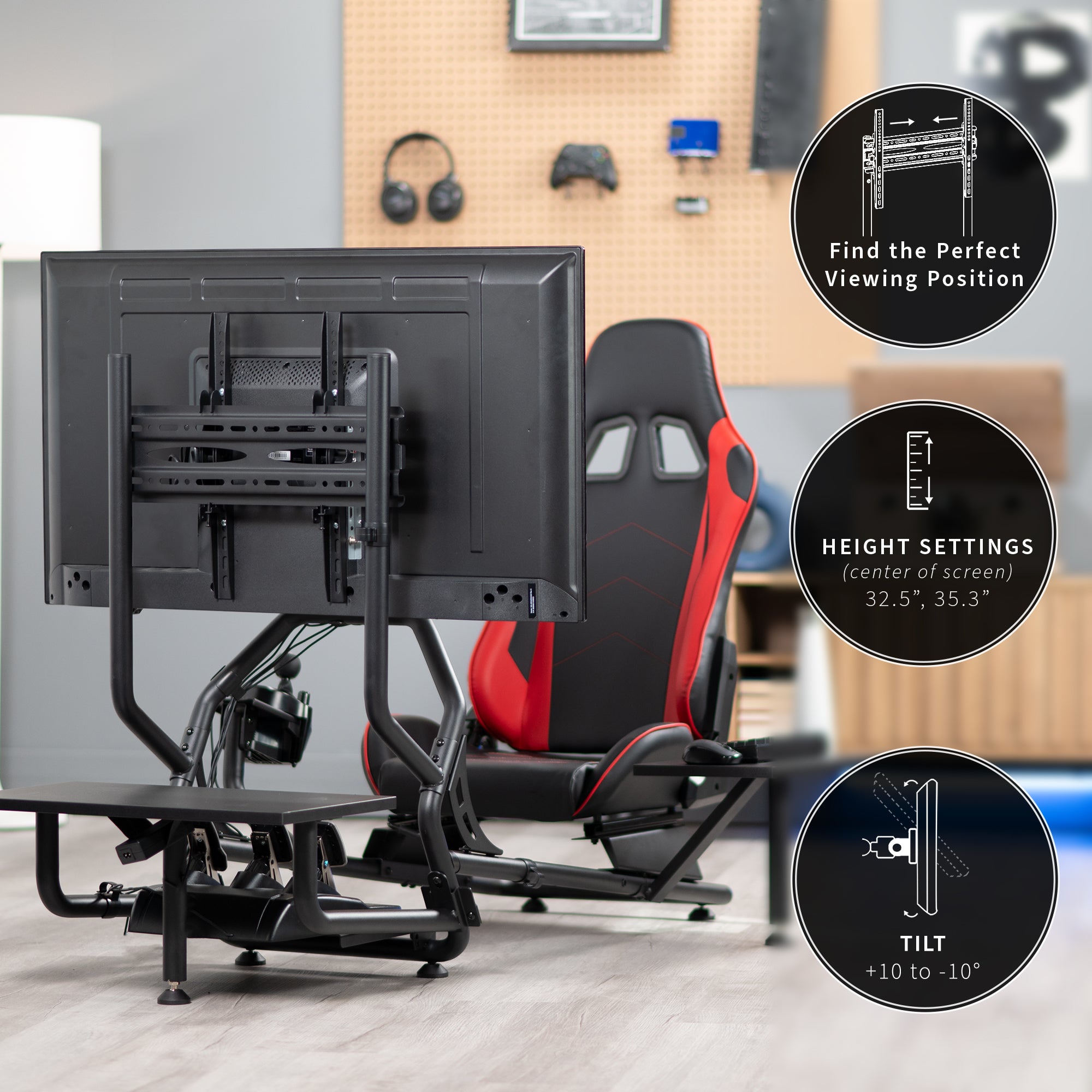

• TV Mount Height Settings: 32.5”, 35.3” (floor to center screen)
• TV Mount Tilt: +10° to -10°
• Wheel Mount Dimensions: 8.8” x 9” x 23.5”

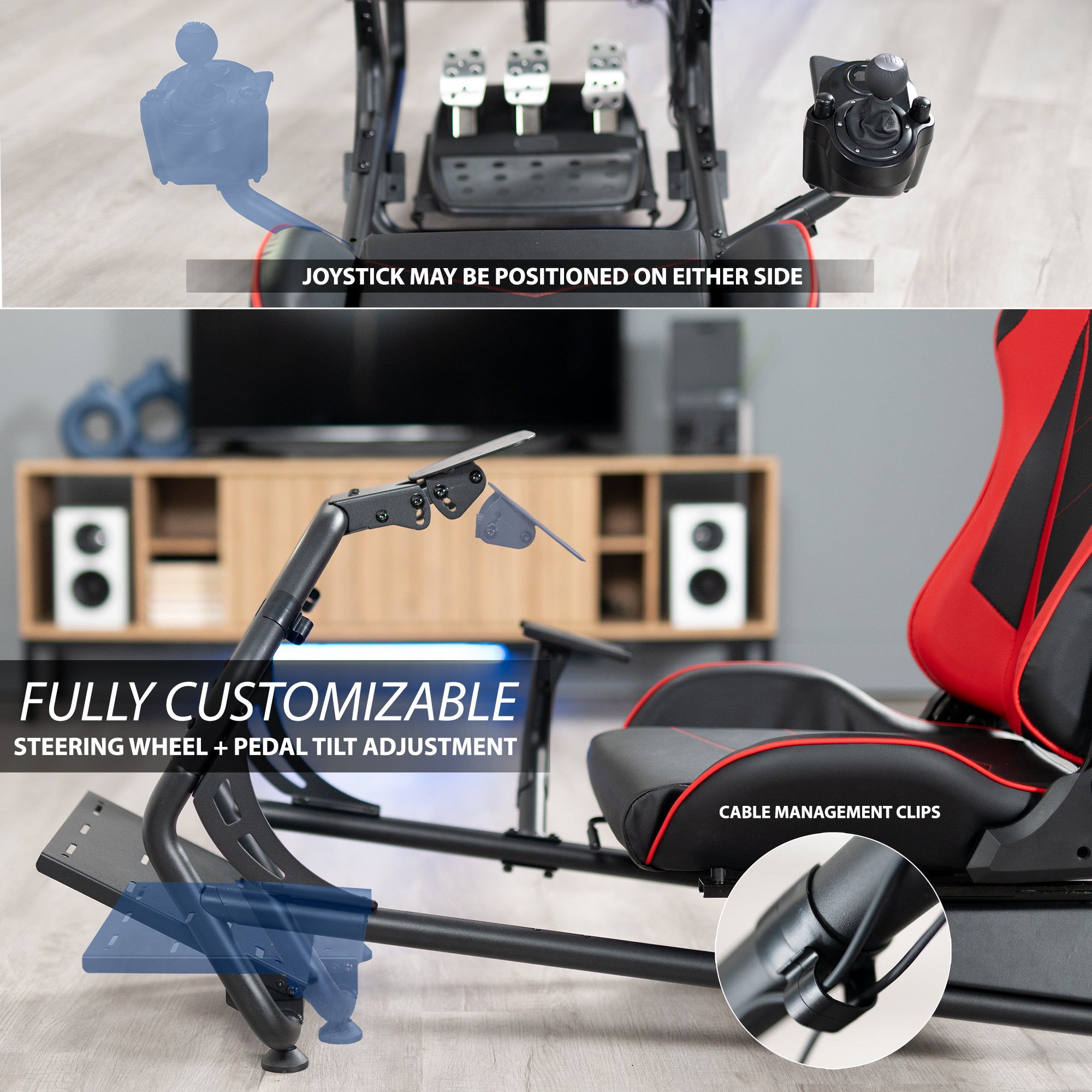

• Wheel Tilt: +10° to -20°
• Pedal Mount Tilt: 0° to +27°

• STAND-RACE1B Assembly Manual PDF
• STAND-RACE1TV Assembly Manual PDF
• STAND-RACE1SF Assembly Manual PDF
