White Electric Flip Down Drop Ceiling TV Mount

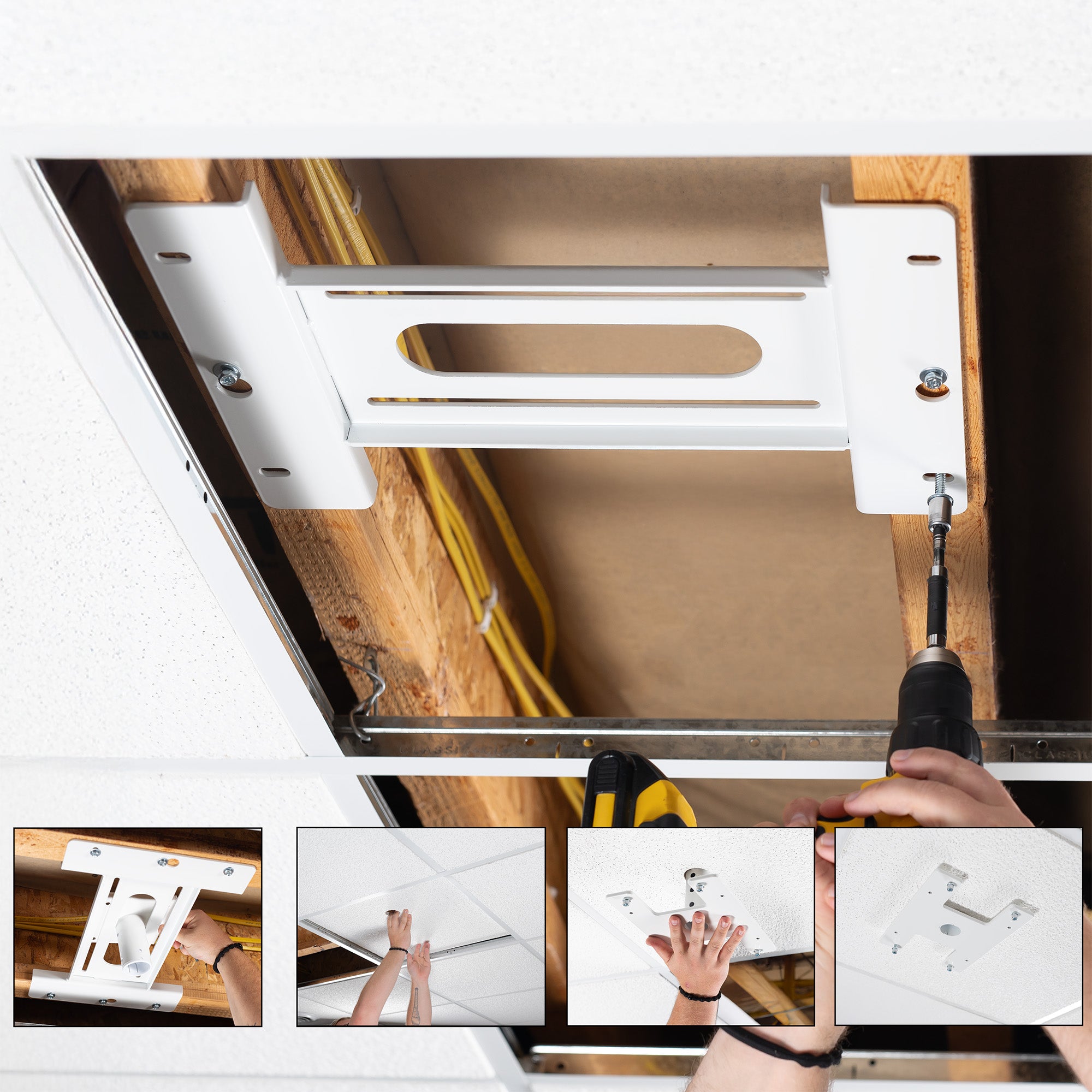

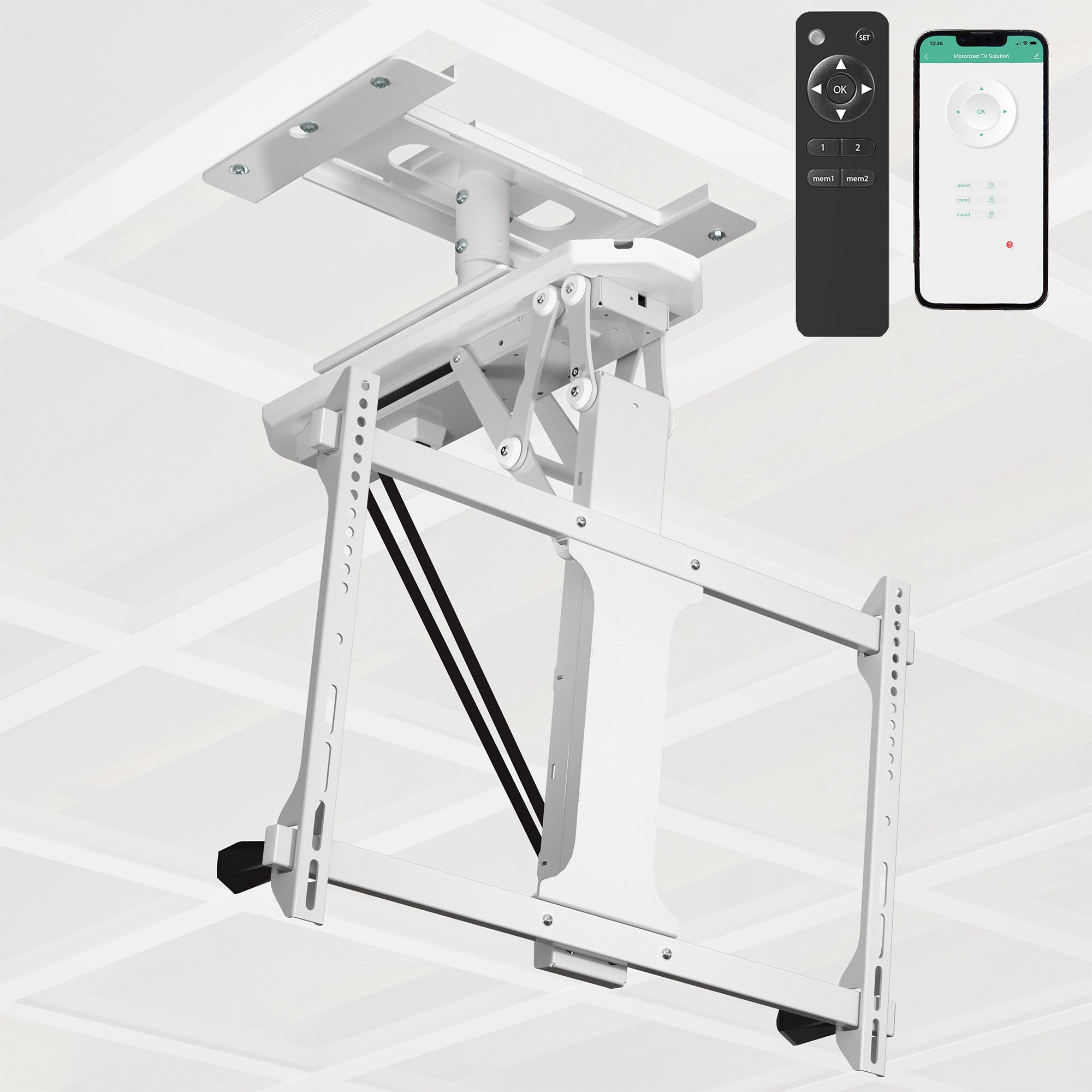

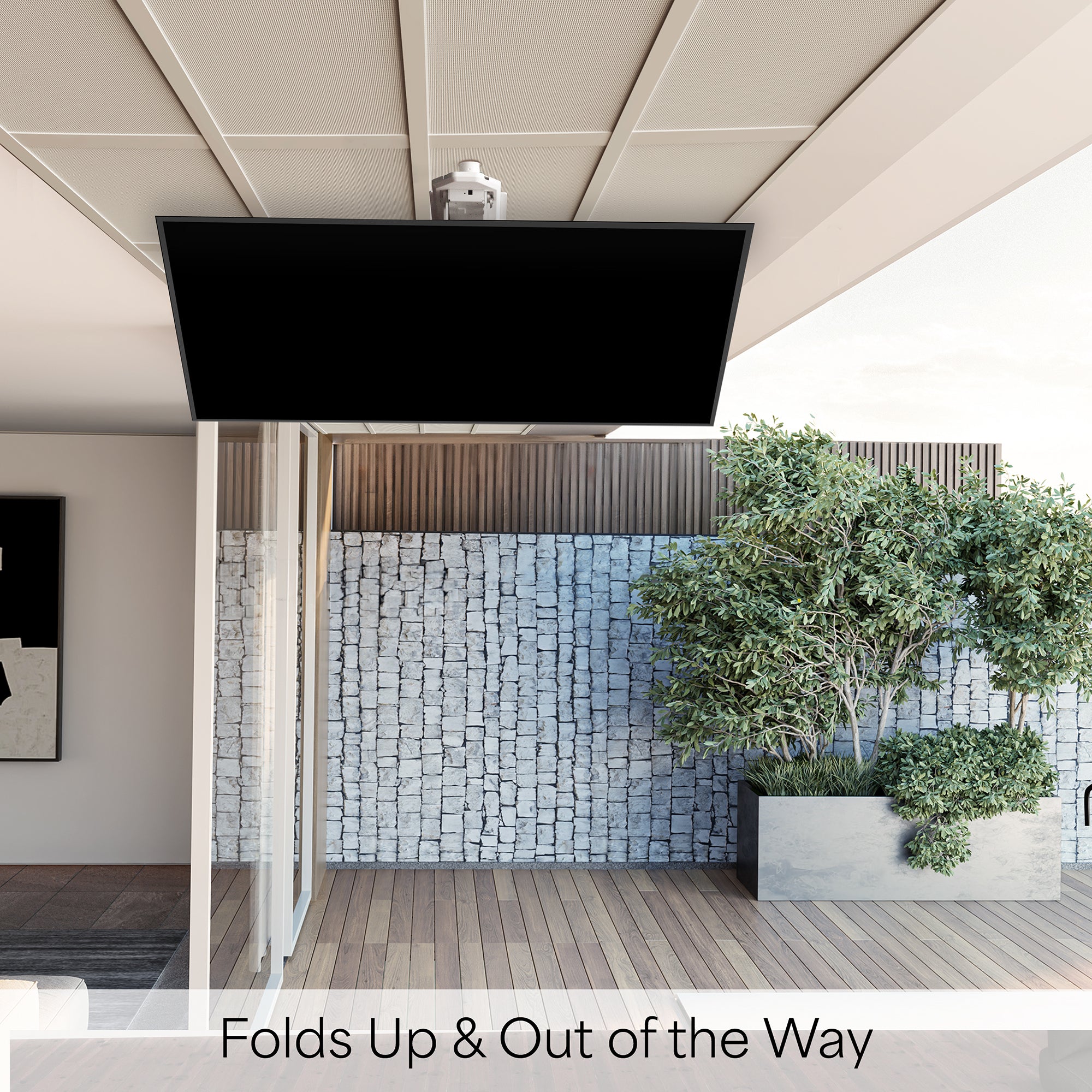

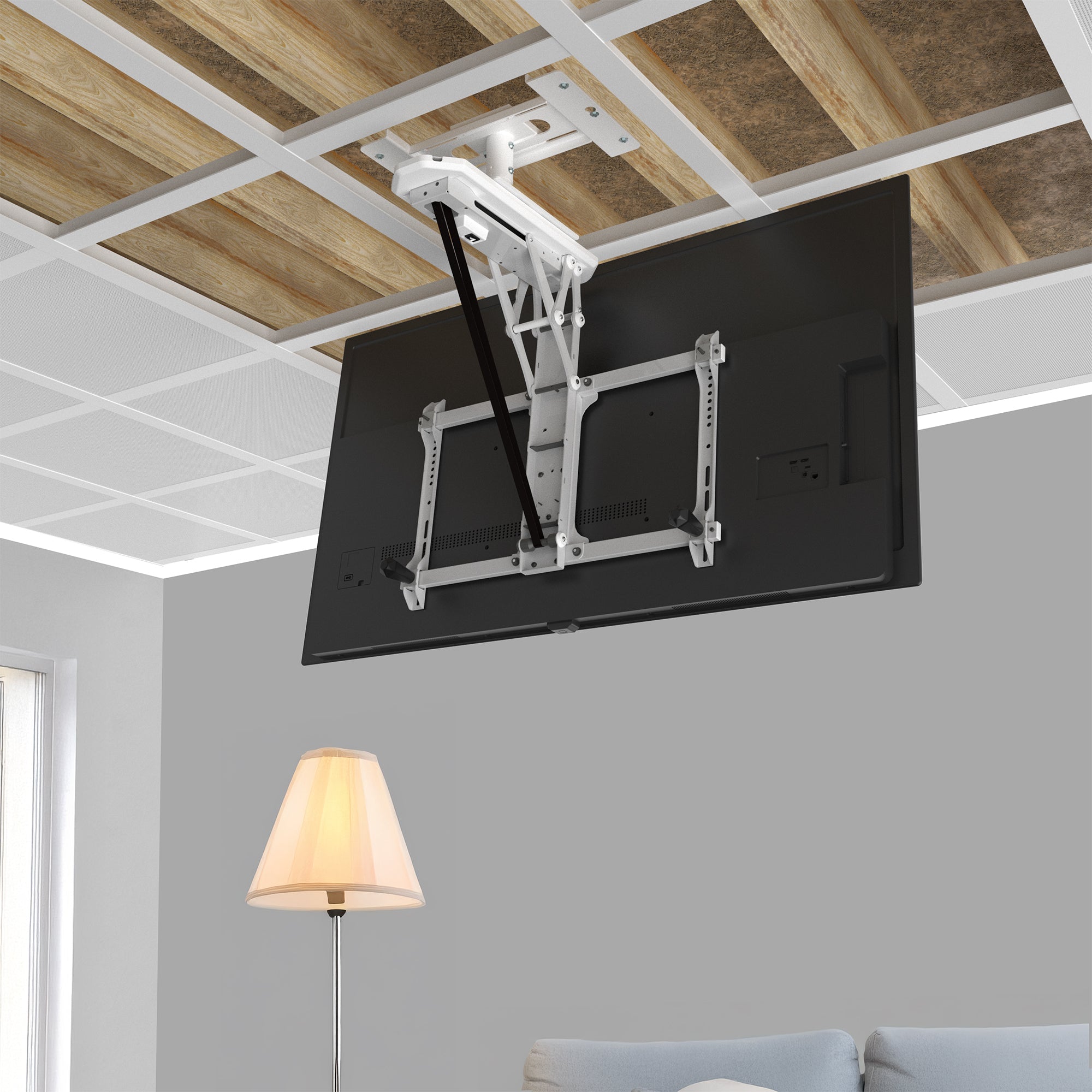

Install your compatible TV on a drop ceiling with the White Electric Flip Down Drop Ceiling TV Mount (MOUNT-KIT-FD70W1C) from VIVO! Designed to hold 32" to 70" screens with VESA patterns up to 600x400mm, this mount is ready to transform your space. The drop ceiling bracket installs to wood joists, allowing your screen to be parallel or perpendicular to the joists for the desired display. Save your preferred viewing heights with memory settings on the RF remote. You can also connect to the Tuya app, Amazon Alexa, or Google Home for app control or voice control options right from your mobile device! The convenient fold-up design, tilting 0° to -75°, creates easy storage and safety for your screen. Features include solid steel construction supporting TVs up to 77 lbs, +2° to -2° level adjustment, a removable VESA plate for easy mounting, and electric height adjustment. The modern design blends seamlessly into any home or office environment.

• Screen Size: 32" to 70"
• Screen Type: Flat and Curved

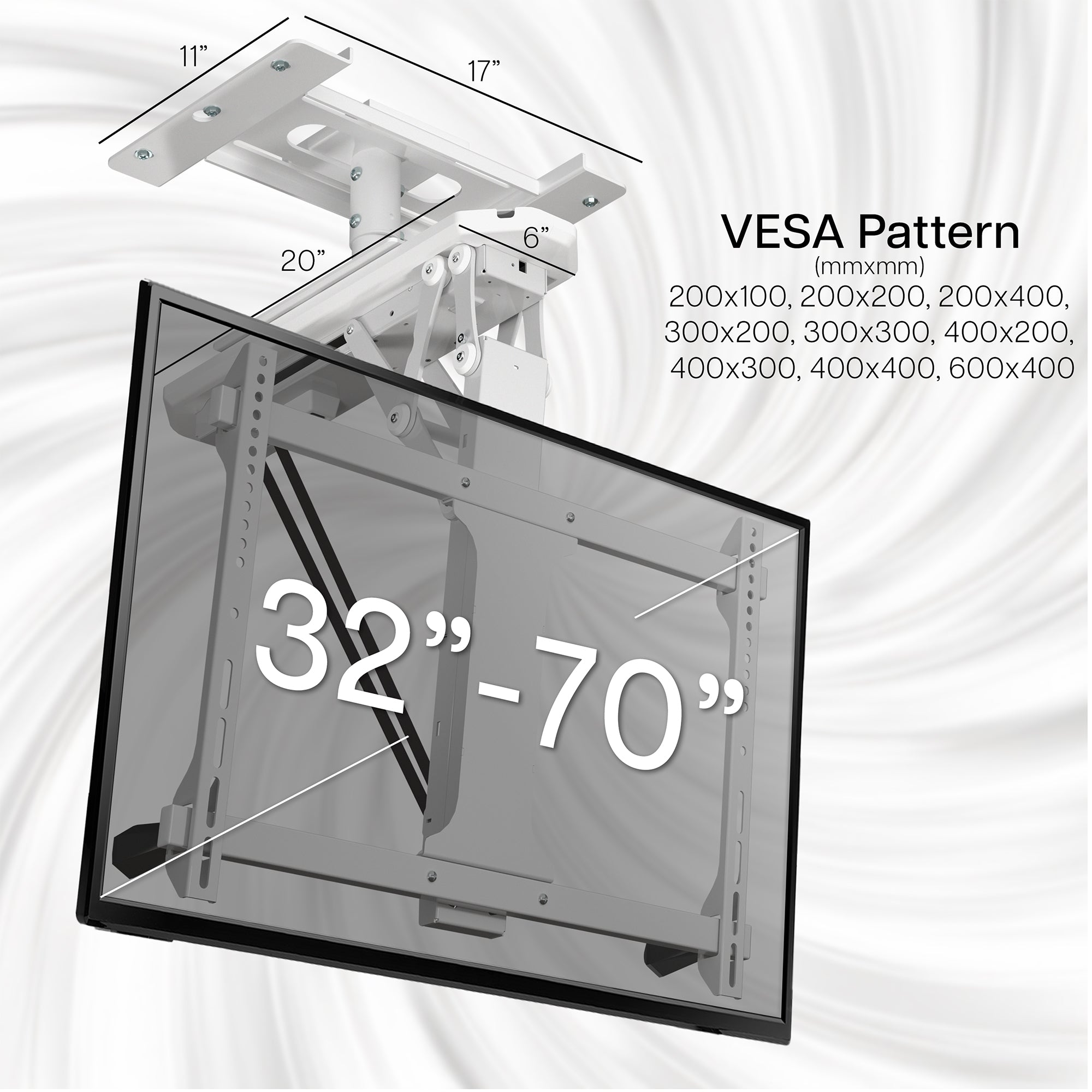

• VESA Standard (mm): 200x100, 200x200, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 600x400
• TV Weight Capacity: 77 lbs
• Total Weight Capacity: 105.6 lbs (TV + TV Mount)

• Material: Steel
• Type: Electric

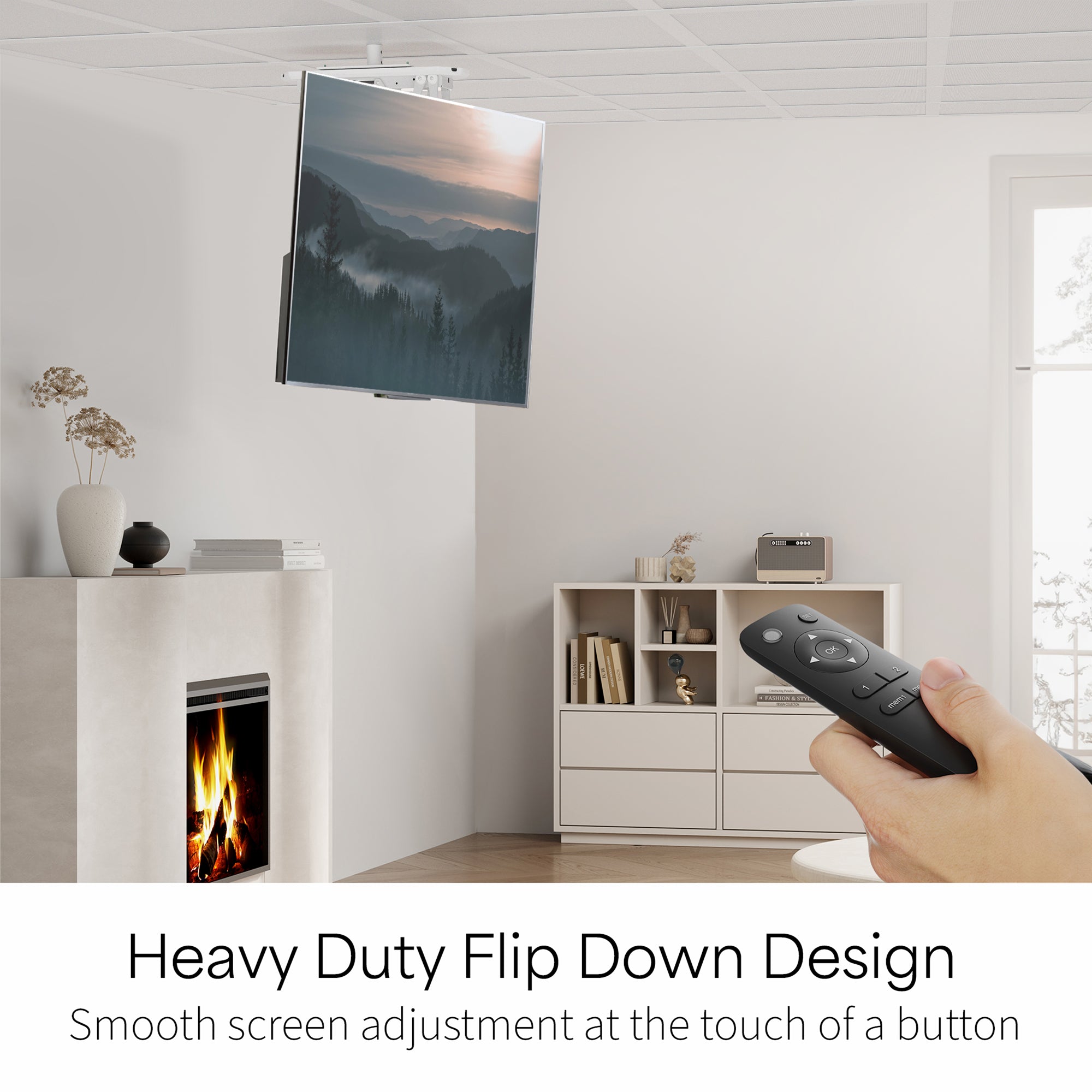

• Remote Control: Features 2 Memory Settings (3 Memory Settings with Apps)
• Drop Ceiling Mount Dimensions: 17” x 11” (middle section is 6.3”)
• Drop Ceiling Mounting Bracket Dimensions: 10.3” x 7” (connects to TV mount)
• Electric TV Mount Base Dimensions: 20” x 6”
• TV Display Options: Parallel to Joists, Perpendicular to Joists

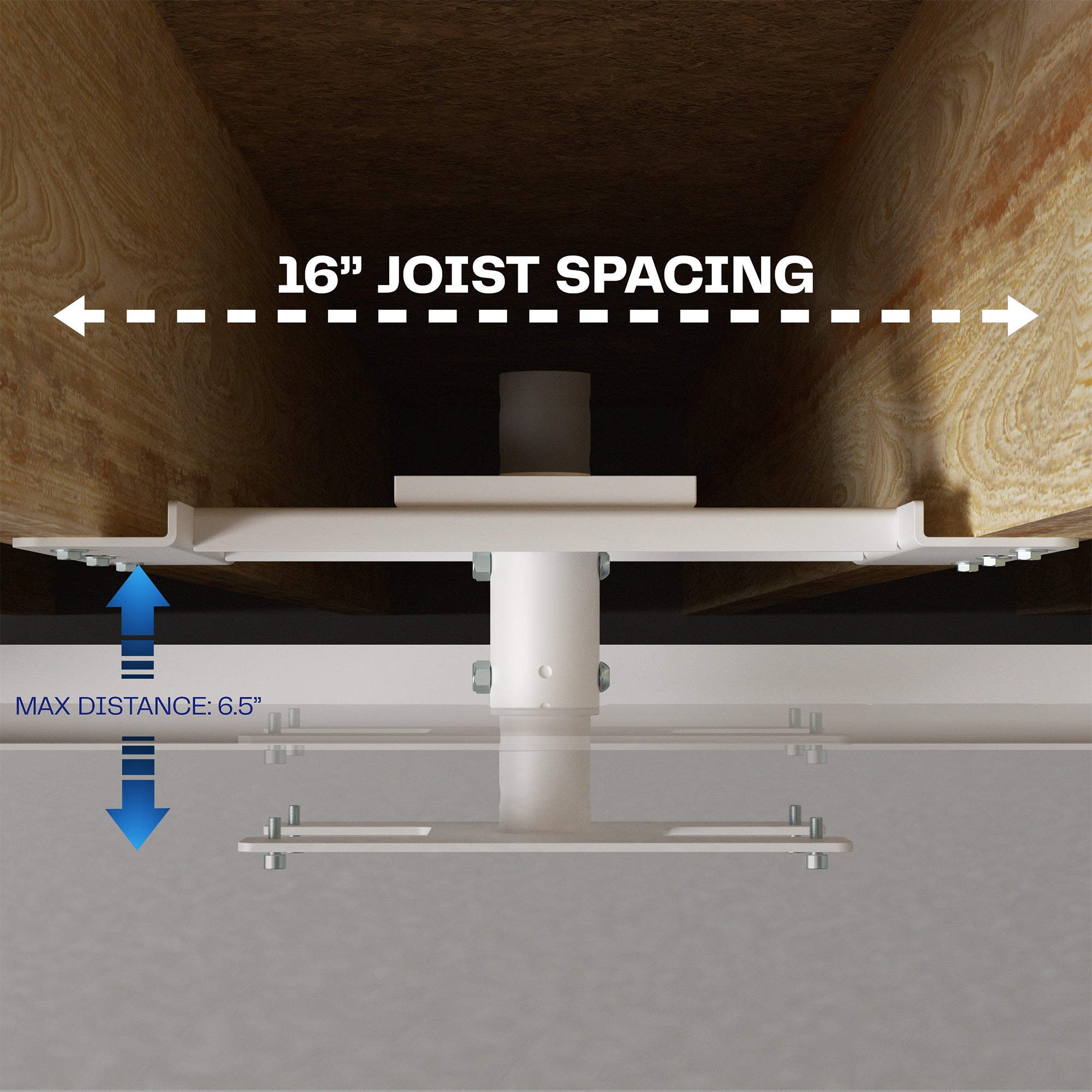

• Drop Ceiling Mount Extension from Joist (Distance from bottom of joist to bottom of mounting bracket): 3.5” to 6.5”
• Total Height Adjustment / Distance from Joist: 7.5” to 32.5” (motorized mount + drop ceiling mount)

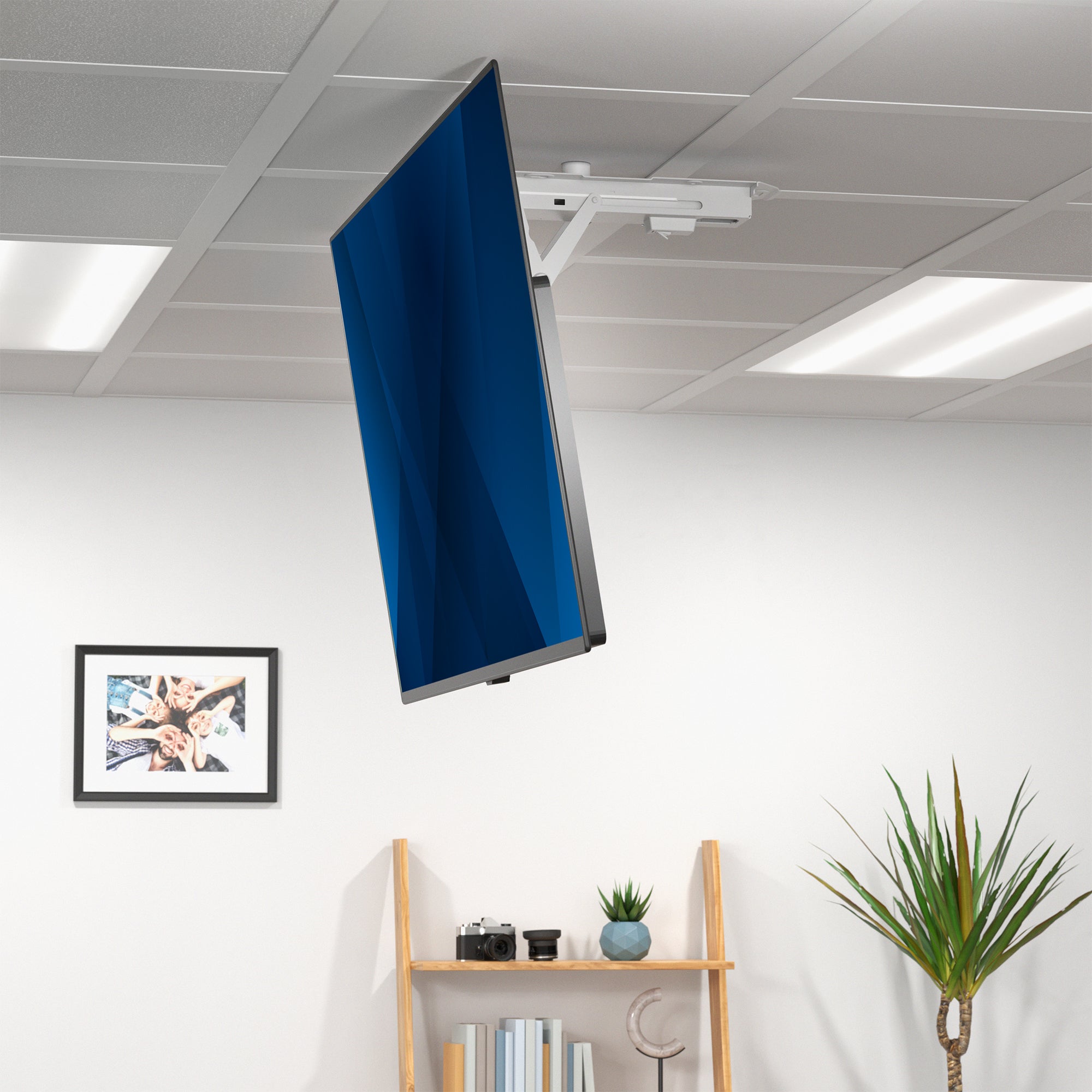

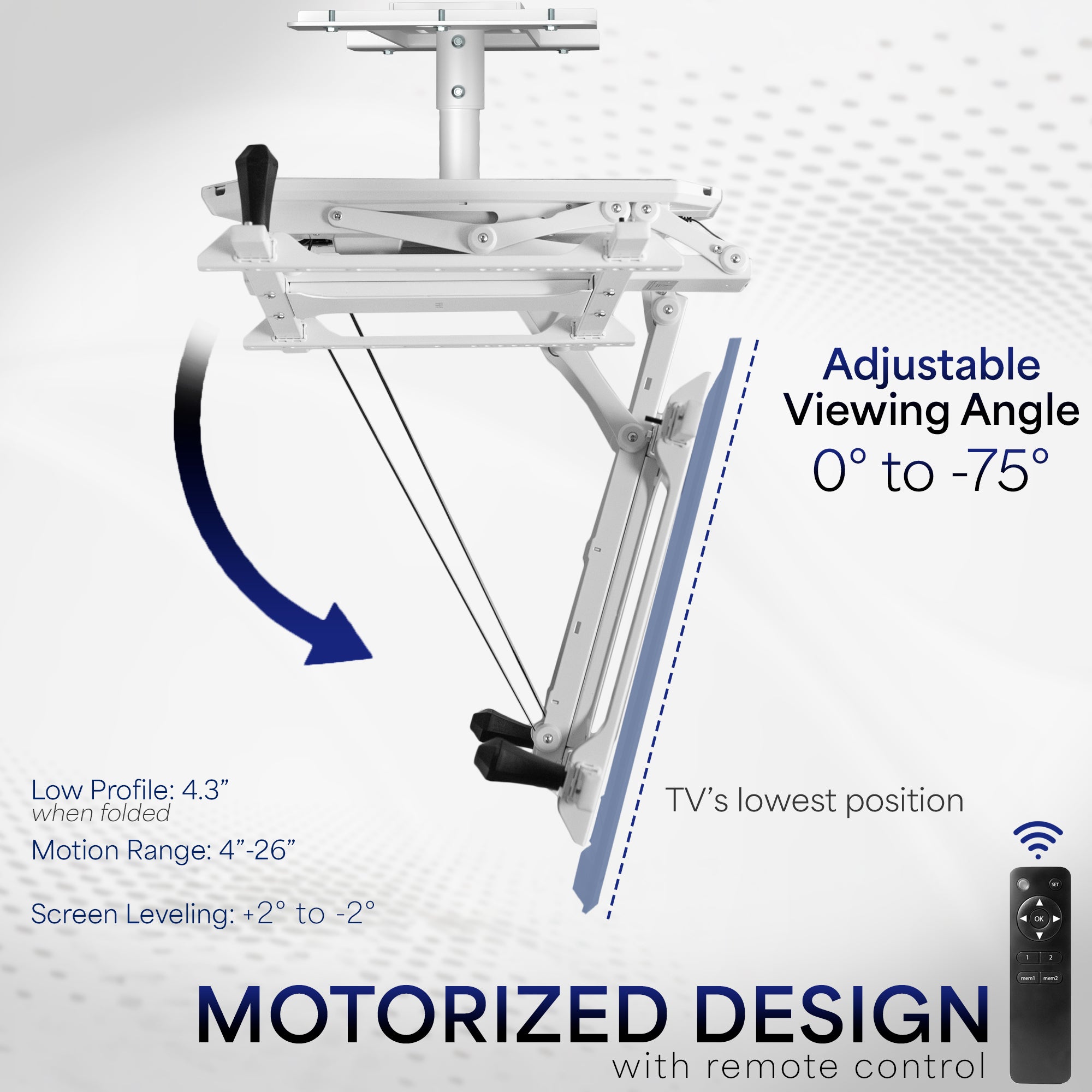

• Articulation: 0° to -75° tilt, +2° to -2° screen leveling

• Drop Ceiling Mount Assembly Manual PDF
• Electric Flip Down Ceiling TV Mount w/ Remote Control Assembly Manual PDF
