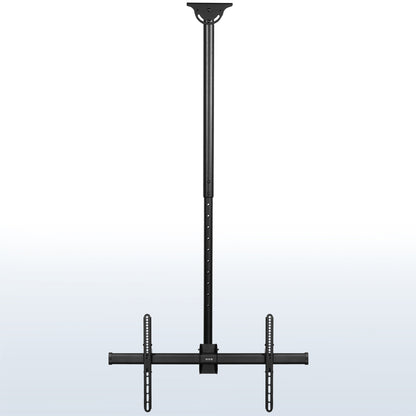

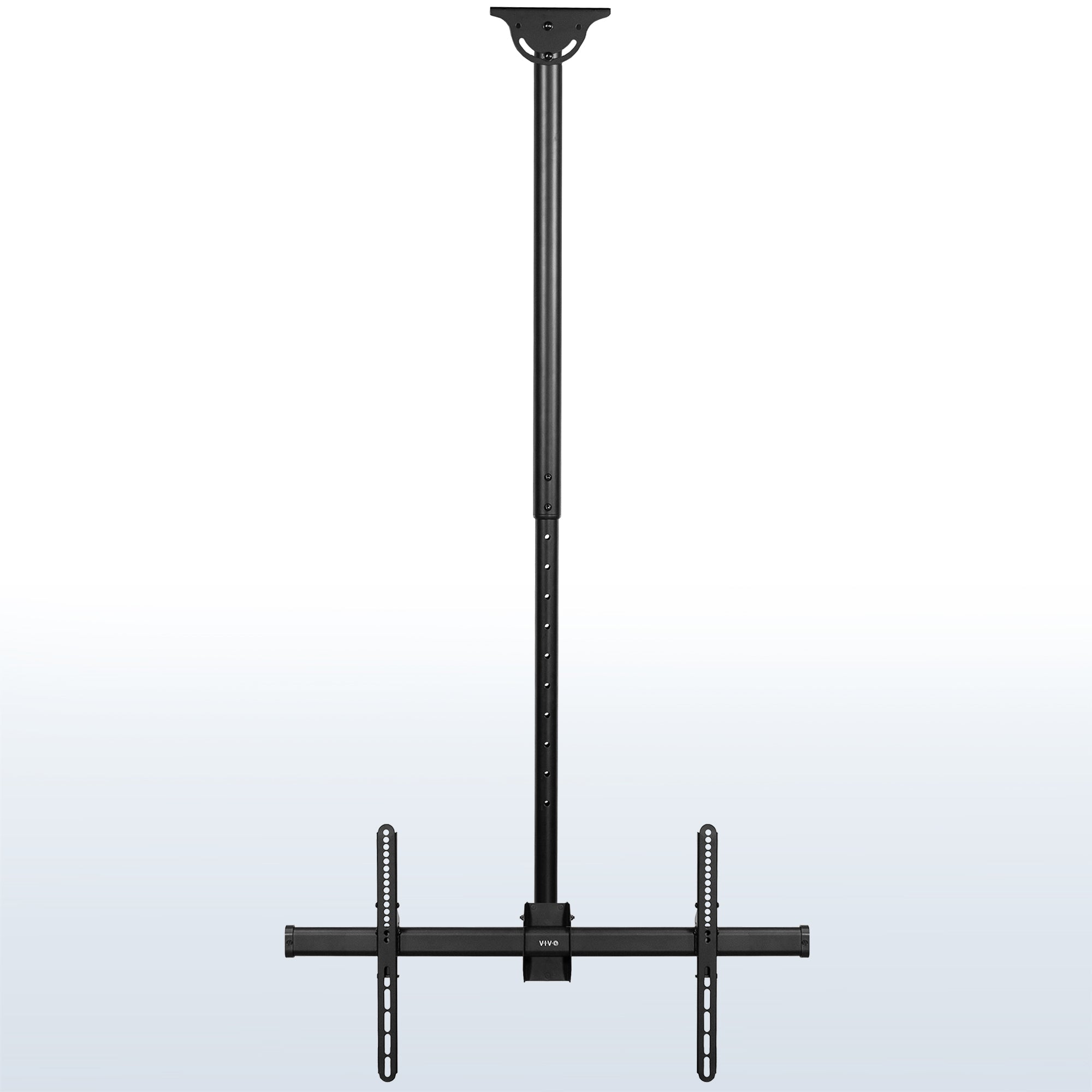

Large 37” to 90” TV Ceiling Mount with Extension Pole

Find just the right mounting solution for your vaulted ceilings with the Large TV Ceiling Mount with Extension Pole (MOUNT-VC90-5 Series) from VIVO! This durable product is compatible with most 37” to 90” TV's on the market (VESA patterns up to 800x400mm), making it ideal for both commercial and residential use. Strength-tested to support screens weighing up to 110 lbs, it will keep your valuable equipment safe and secure. The mount features tilt for glare reduction and full 360-degree swivel for flexible positioning, as well as telescoping height adjustment. All hardware and step-by-step instructions are provided for assembly and installation so you can enjoy your new TV mount in no time!

• Screen Sizes: 37” to 90” TVs
• Mounting Options: Wood Joist Installation, Concrete Installation (fits both flat and sloped ceilings)
• VESA Standard: 200x100mm, 200x200mm, 300x200mm, 400x200mm, 600x200mm, 300x300mm, 400x300mm, 600x300mm, 200x400mm, 300x400mm, 400x400mm, 600x400mm, 800x400mm
• Weight Capacity: 110 lbs

• Material: Aluminum, Steel
• Product Dimensions: 35” x 8” x (41.8” to 61.5”)
• Mounting Bracket Dimensions: 8” x 2.5”
• VESA Bracket Dimensions: 35” x 17”
• VC90-5 Height Adjustment / Extension Range: 41.8” to 61.5”
• VC90-10 Height Adjustment / Extension Range: 98.5” to 118.2”
• Mounting Bracket Tilt: up to 60° for angled/sloped ceilings
• Articulation: 0° to -25° tilt, 360° swivel, +3° to -3° screen leveling

• 5ft Pole Assembly Manual PDF
• 10ft Pole Assembly Manual PDF
