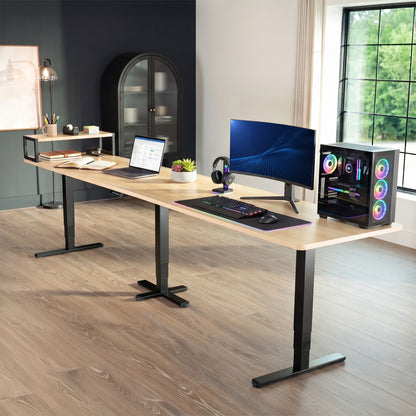

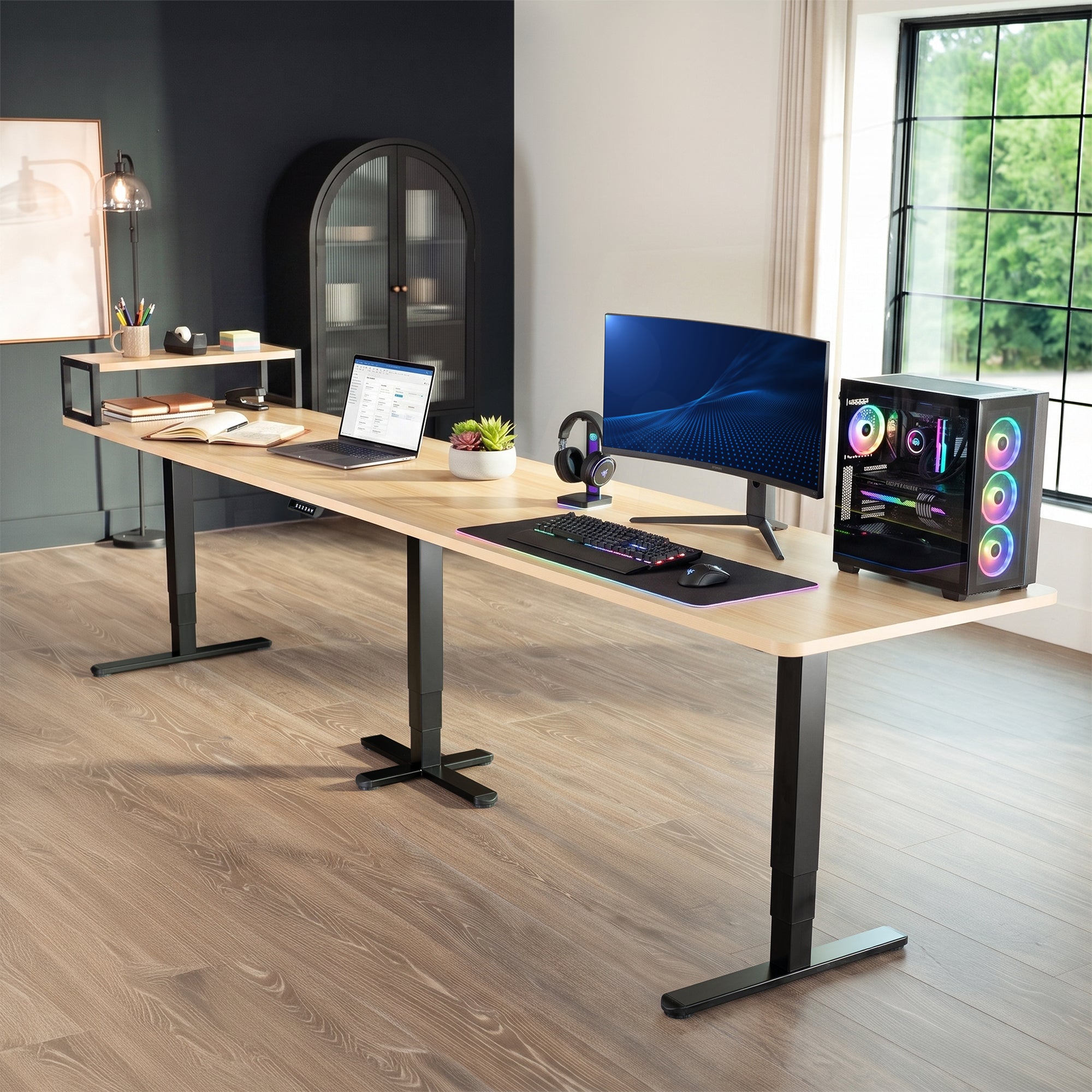

Electric 3-Leg Multi Motor Desk Frame with Memory Controller

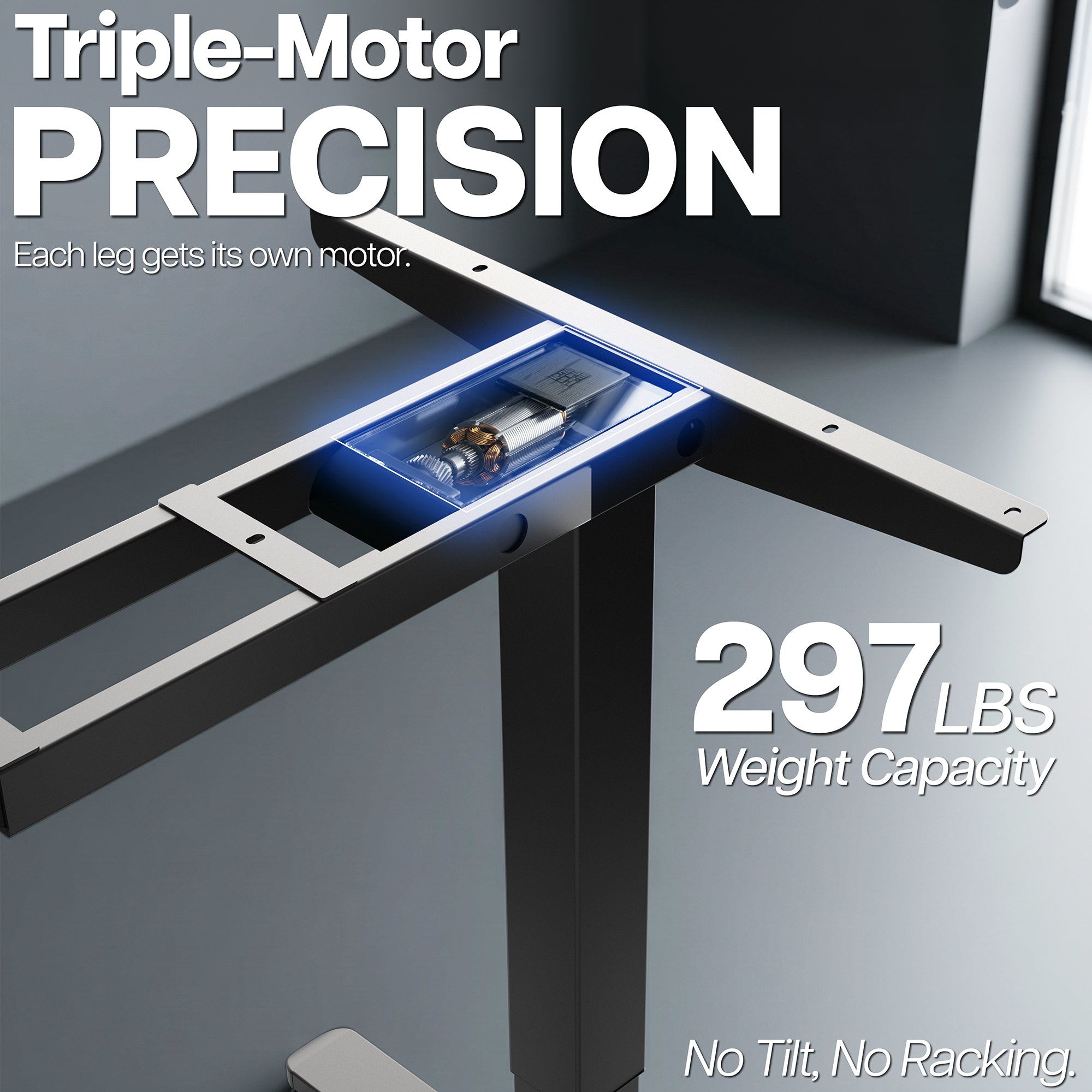

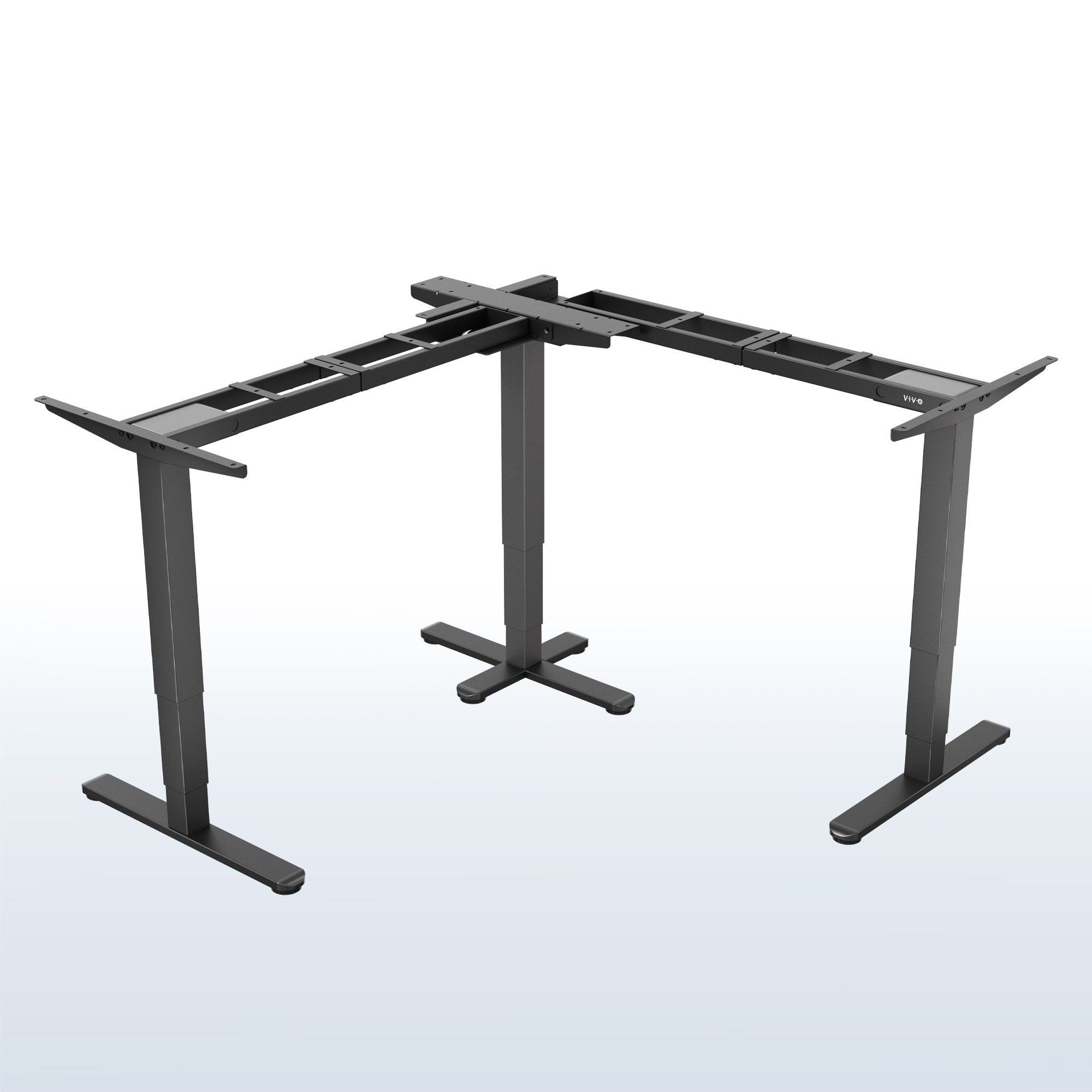

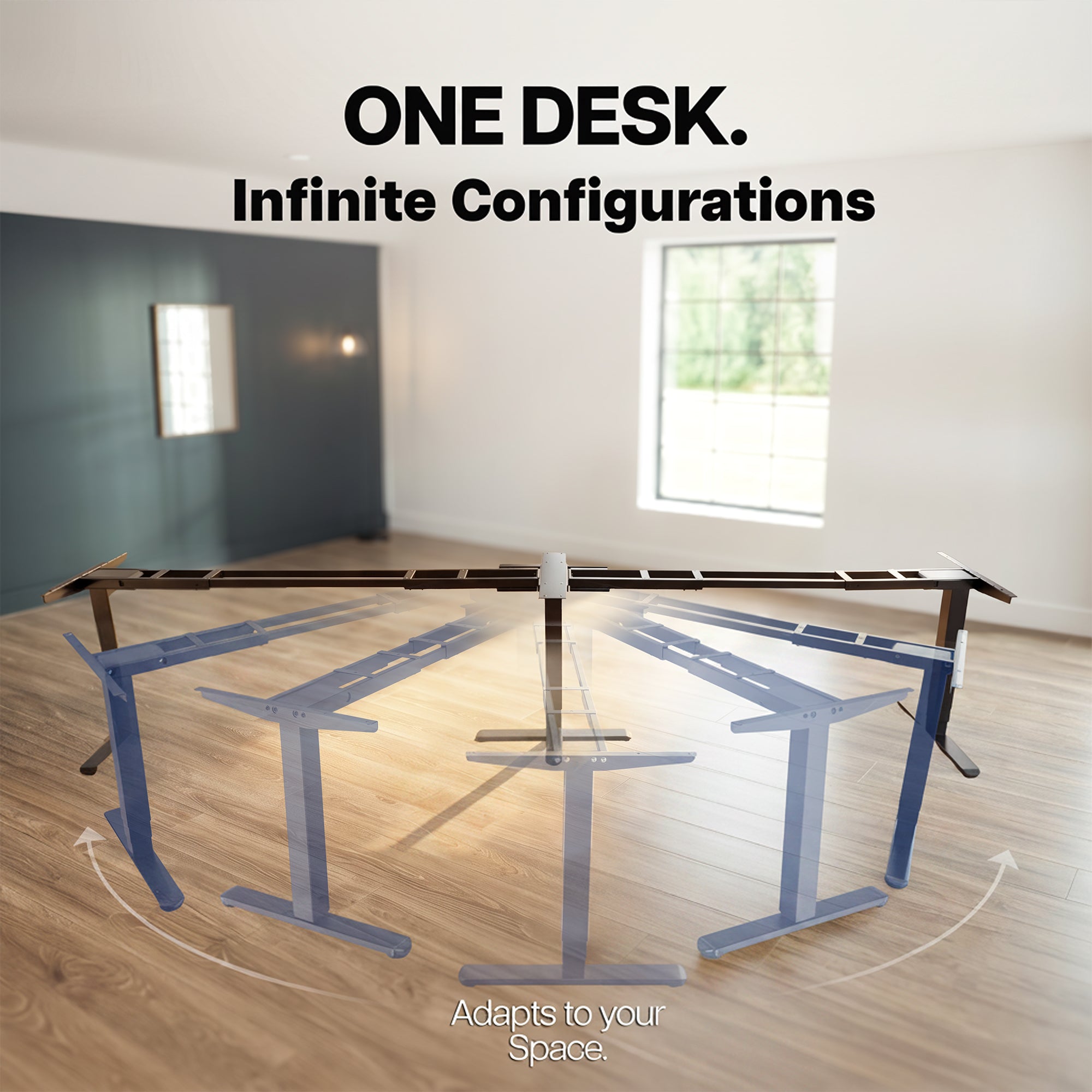

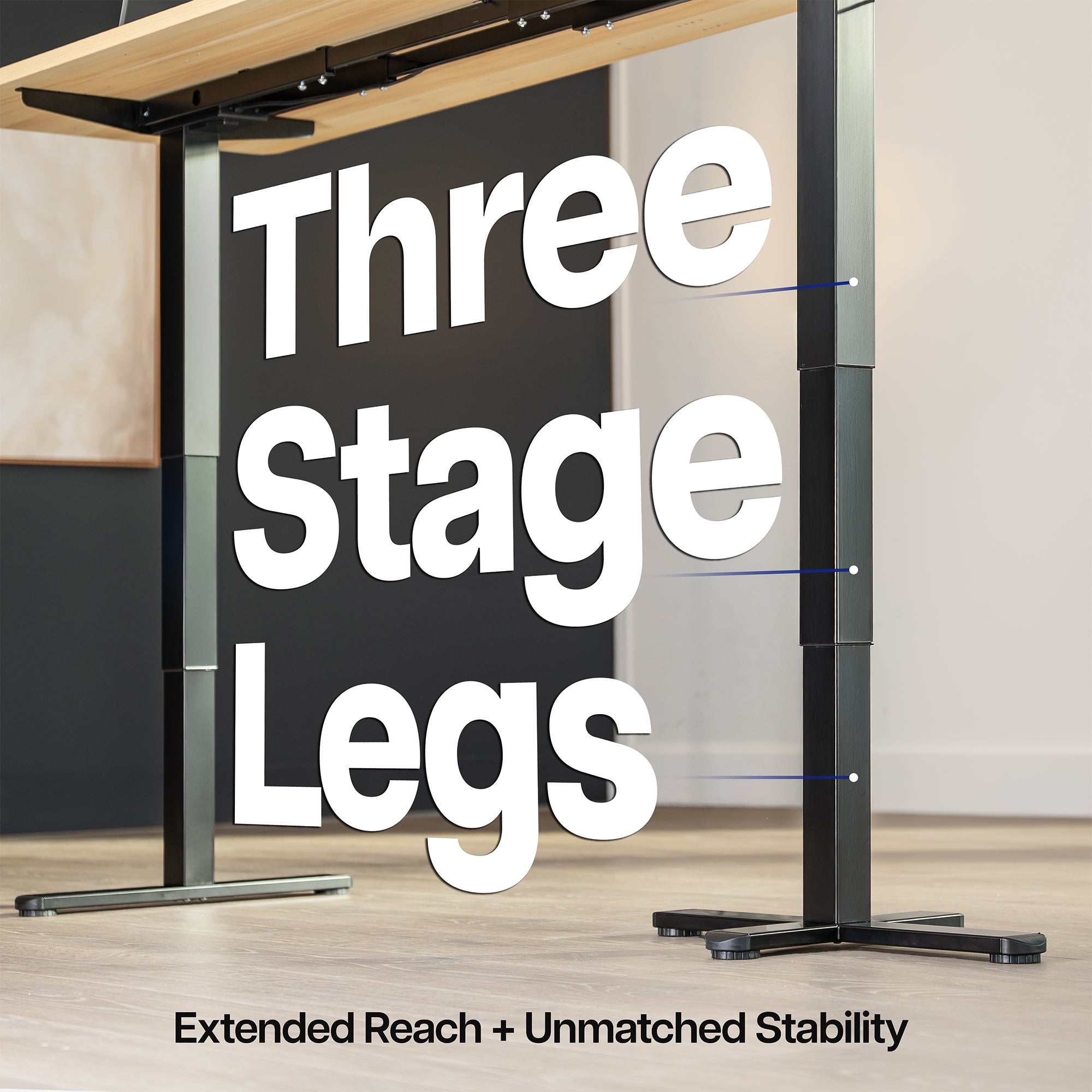

The VIVO DESK-E-300B is a triple-motor electric standing desk frame built for serious workstations without compromise on size, strength, or flexibility. Three independent motors drive the lift simultaneously from 23.6" to 49.2" at 30mm/s, and the three-leg design adds a center support point that keeps the frame rigid across the full 297 lb capacity. A push-button controller with three memory presets locks in your go-to heights so switching between sitting and standing takes seconds. The frame adapts to nearly any layout as well: in straight orientation, it extends from 87.2" to 150.2" to fit desktops up to 170" x 43". In corner orientation, it spans 49" to 80.5" in length and 42.8" to 74.3" in depth, supporting L-shaped tops up to 115" x 115" x 43". All-steel construction and a 3-part telescoping column handle the structural load, and assembly is straightforward with step-by-step instructions and all hardware included.

• Weight Capacity: 297 lbs
• Recommended Table Top Thickness: 3/4" and greater

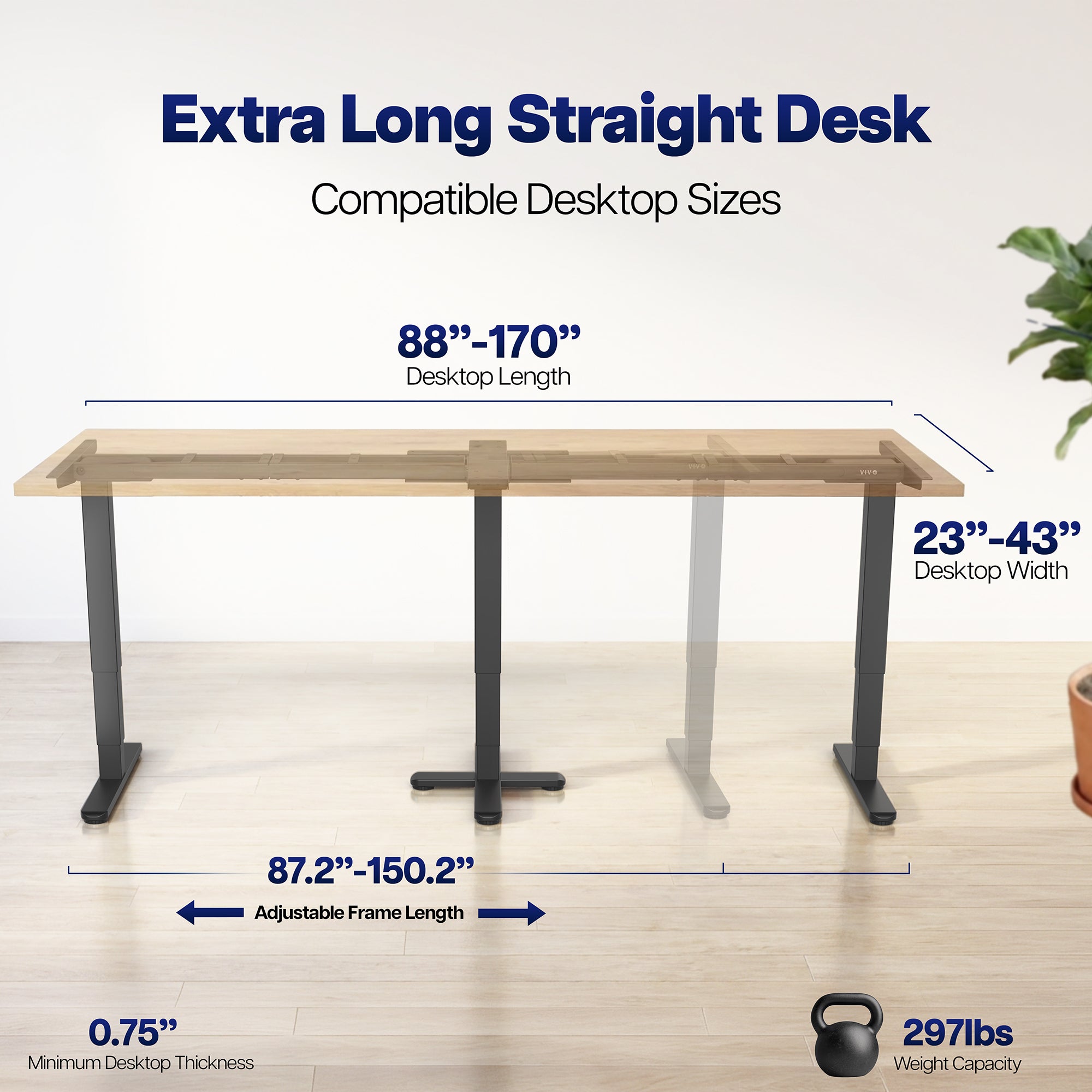

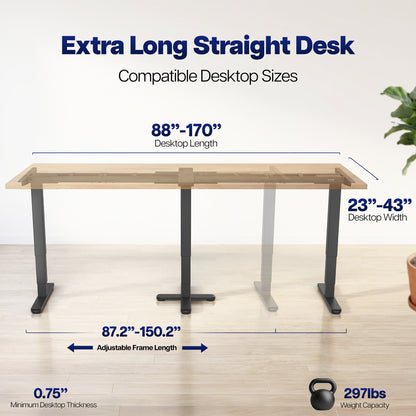

• -- Straight Orientation --
• Minimum Table Top Dimensions: 88" x 23"
• Maximum Table Top Dimensions: 170" x 43"

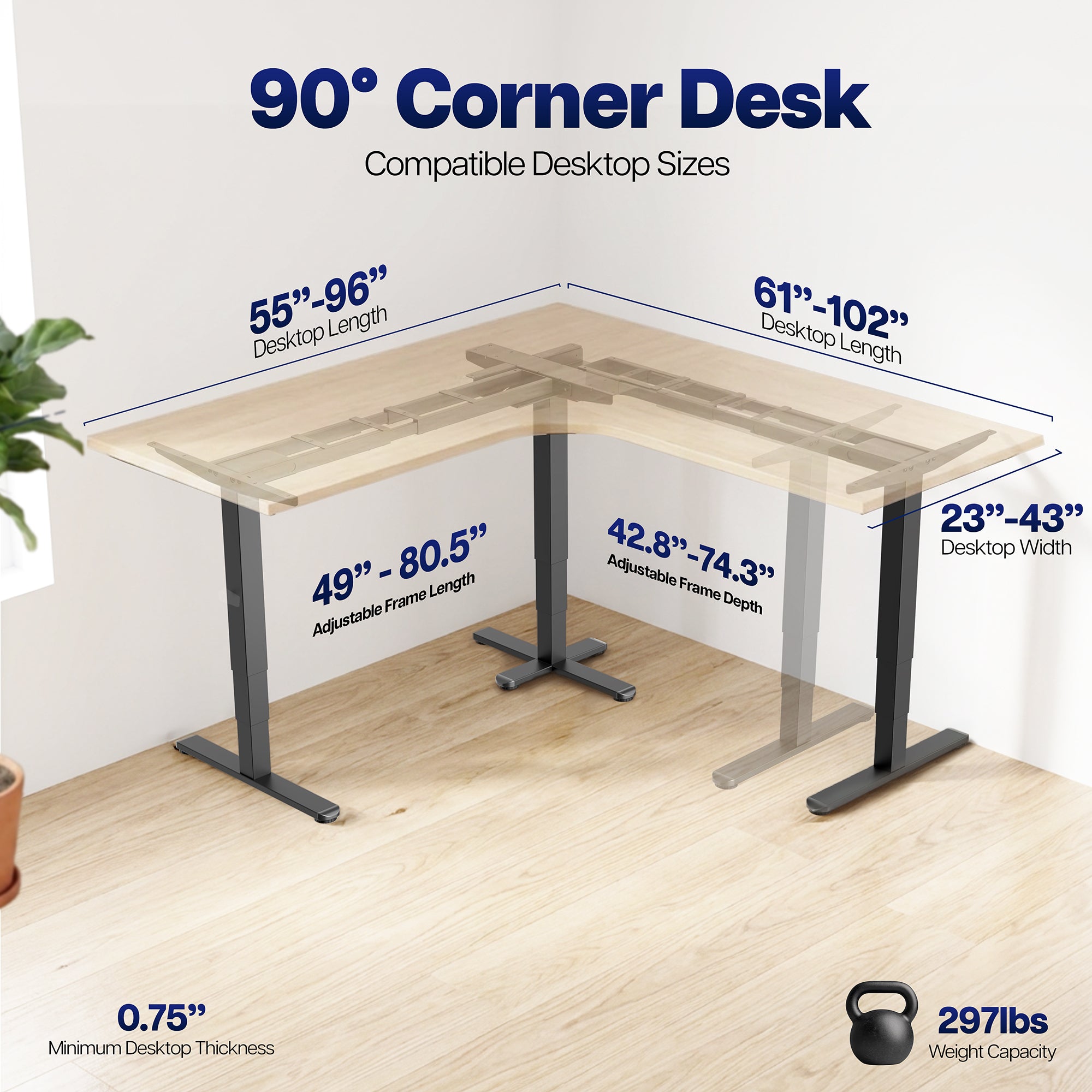

• -- 90° Corner Desktop (one side turned to 90°) --
• Minimum Table Top Dimensions: 61" x 55" x 23"
• Maximum Table Top Dimensions: 102" x 96" x 43"
• -- 90° Corner Desktop (both sides turned 45°) --
• Minimum Table Top Dimensions: 62" x 62" x 23"
• Maximum Table Top Dimensions: 115" x 115" x 43"

• Material: Steel
• Type: Electric (3 Motors)

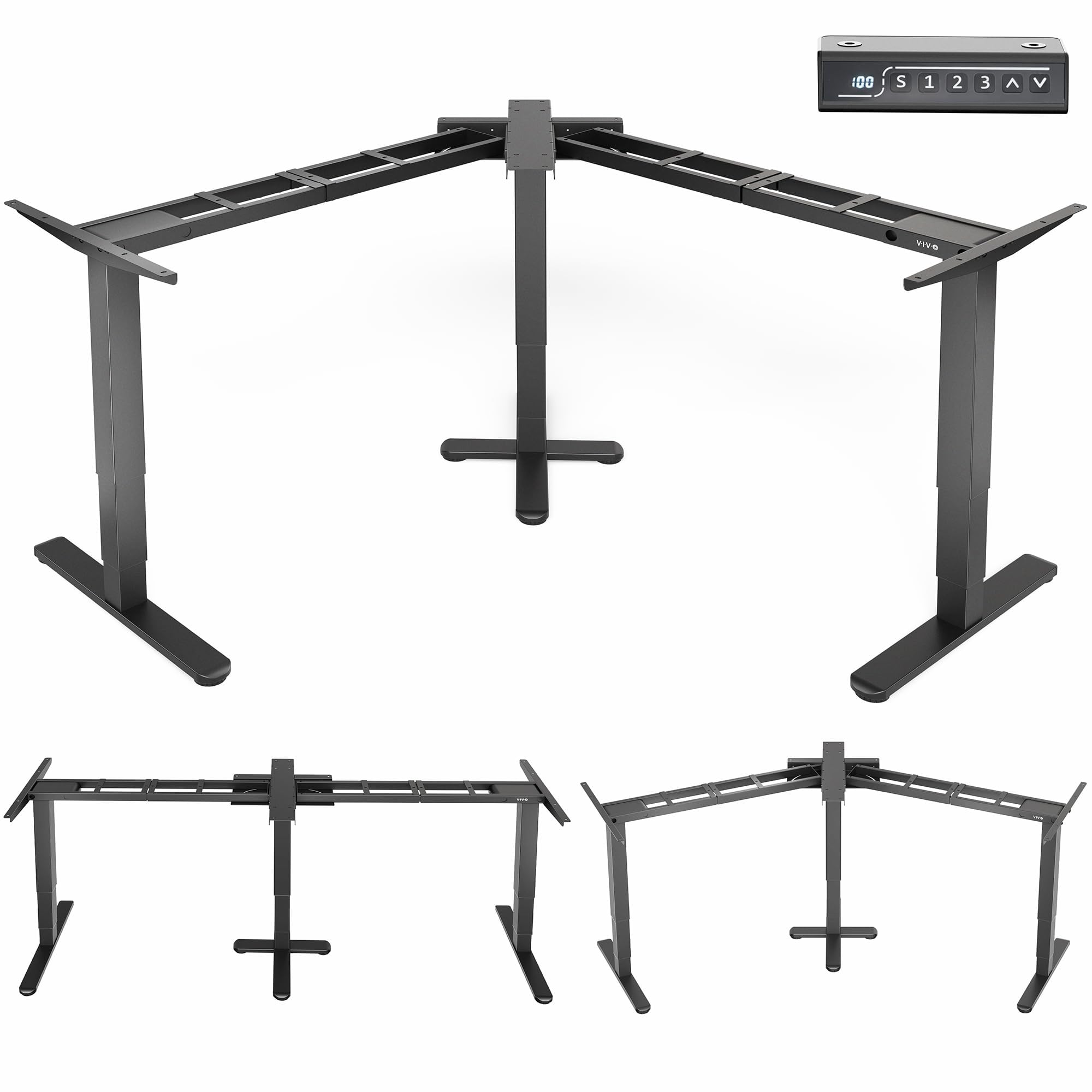

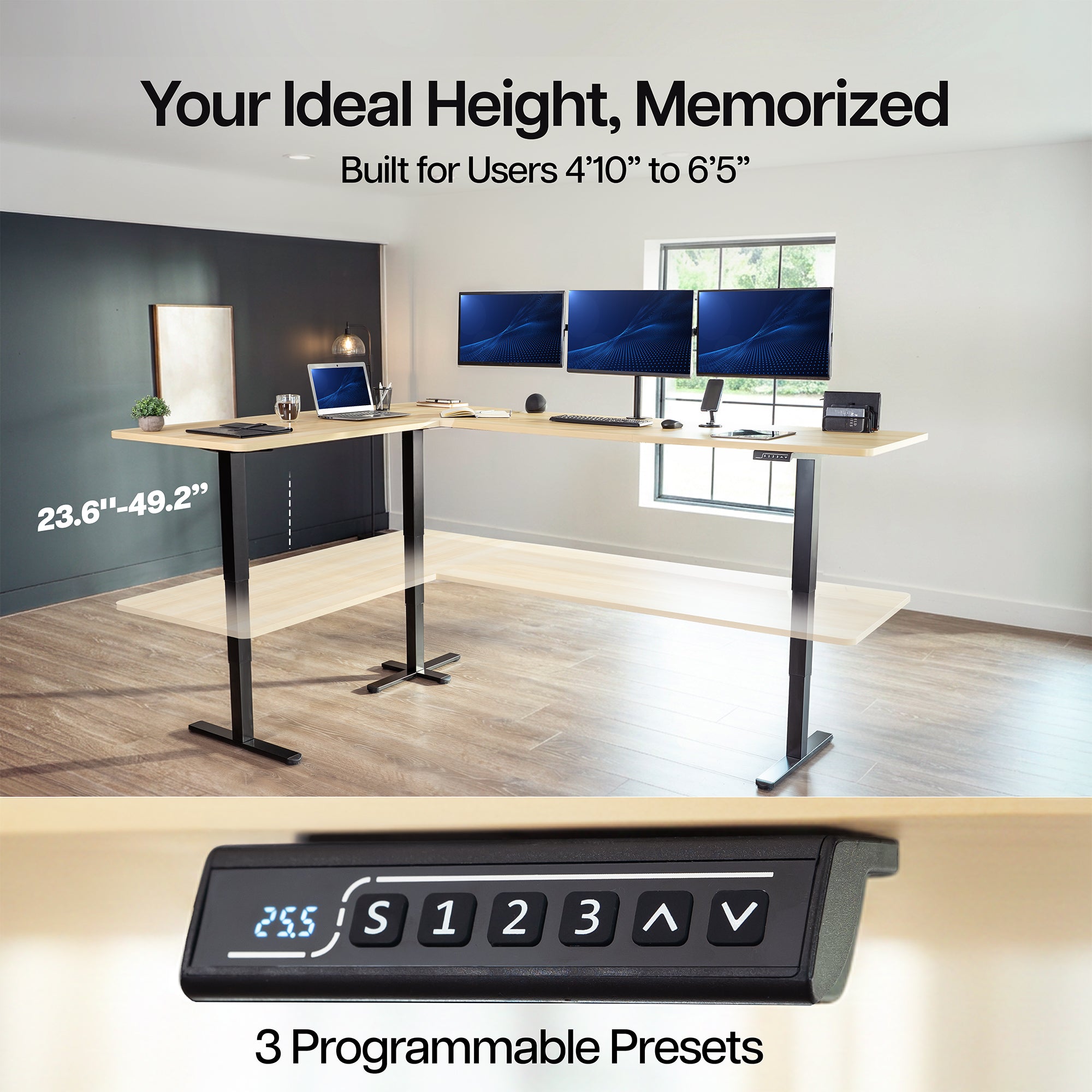

• Controller Type: Push Button (3 Memory Settings)
• Height Range: 23.6” to 49.2”
• Straight Orientation Length Range: 87.2” to 150.2”
• Corner Orientation Length Range: 49” to 80.5”
• Corner Orientation Depth Range: 42.8” to 74.3”
• Lift Speed: 1.2” per second (30mm/s)
• Power Input: 100-240VAC
• Standby Power Consumption: 0.3W

• Assembly Manual PDF
