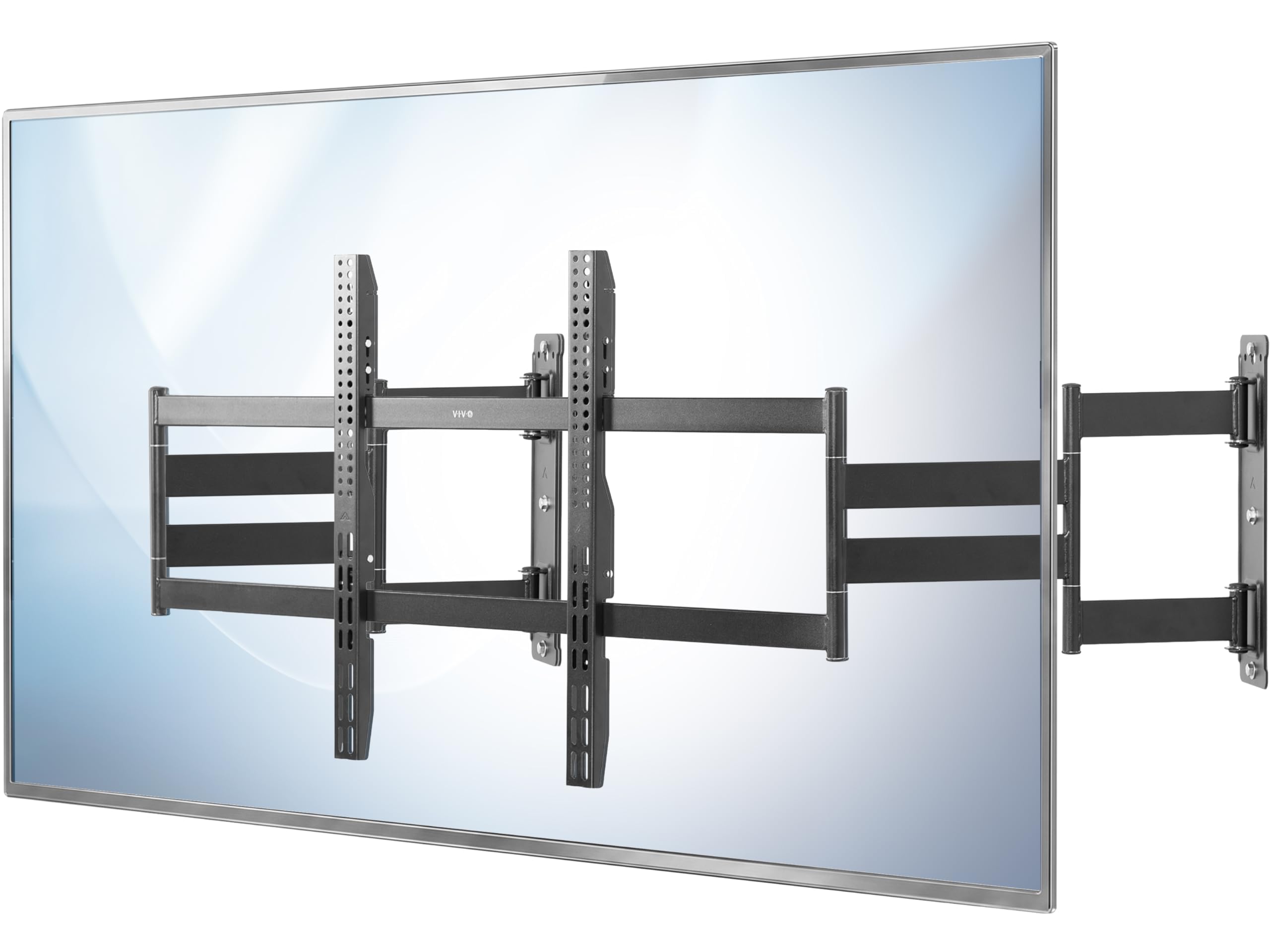

Low Profile Corner Large TV Wall Mount - 75" to 120" Screens

The VIVO MOUNT-CR120C is a heavy-duty dual arm corner TV mount built for large screens from 75" to 120" (100" max in corner configurations) and rated to hold up to 275 lbs, triple strength-tested for confidence at every install. Two independent wall brackets mount to each side of a corner wall, supporting the 43.5” x 11” main bracket arm that extends anywhere from 23.5” to 37.5” (at 28” from corner), and 40” to 44” (at 55.2” from corner). Full motion capability includes a ±20° swivel range and ±1° tilt adjustment, so you can dial in the exact viewing angle from nearly any seat in the room. The slim profile steel construction keeps the setup clean against the wall without the bulk, and built-in cable management channels route power cords out of sight for a finished look. Compatible with flat and curved screens across a wide range of VESA patterns from 75x75 up to 1000x600mm, and works on wood stud and concrete/brick walls alike, whether you're mounting flat, in an L-shaped corner, A-shaped corner, inside corner, outside corner, or offset corner. Everything except the VESA brackets arrives fully assembled, so setup is straightforward: mark your holes, mount your wall brackets, attach the VESA plate, and hang your screen. Two-person installation is recommended given the size and weight of the hardware.

• Screen Sizes: 75” to 120”
• Screen Type: Flat and Curved
• Mounting Options: Wood Stud Corner, Wood Stud Flat, Concrete/Brick Corner, Concrete/Brick Flat
• Corner Mounting: Holes should be marked within 38.4” to 55.2” from the corner
• VESA Standard: 75x75mm, 100x75mm, 75x100mm, 100x100mm, 200x100mm, 100x200mm, 200x200mm, 300x200mm, 400x200mm, 600x200mm, 200x300mm, 300x300mm, 400x300mm, 600x300mm, 200x400mm, 300x400mm, 400x400mm, 600x400mm, 800x400mm, 800x500mm, 400x600mm, 600x600mm, 800x600mm, 900x600mm, 1000x600mm
• Weight Capacity: 275 lbs

• Material: Steel
• Extension (Profile): 23.5” to 37.5” (at 28” from corner), 40” to 44” (at 55.2” from corner)
• Wall Bracket Dimensions: 3.9” x 15.5” (each)
• Main Bracket Dimensions: 43.5” x 11”
• VESA Bracket Height: 24.6”
• Articulation: +1° to -1° tilt, +20° to -20° swivel, 0.79° screen leveling
• Total Product Dimensions: 43.5” x 24.6” x 19.5”

• Assembly Manual PDF
