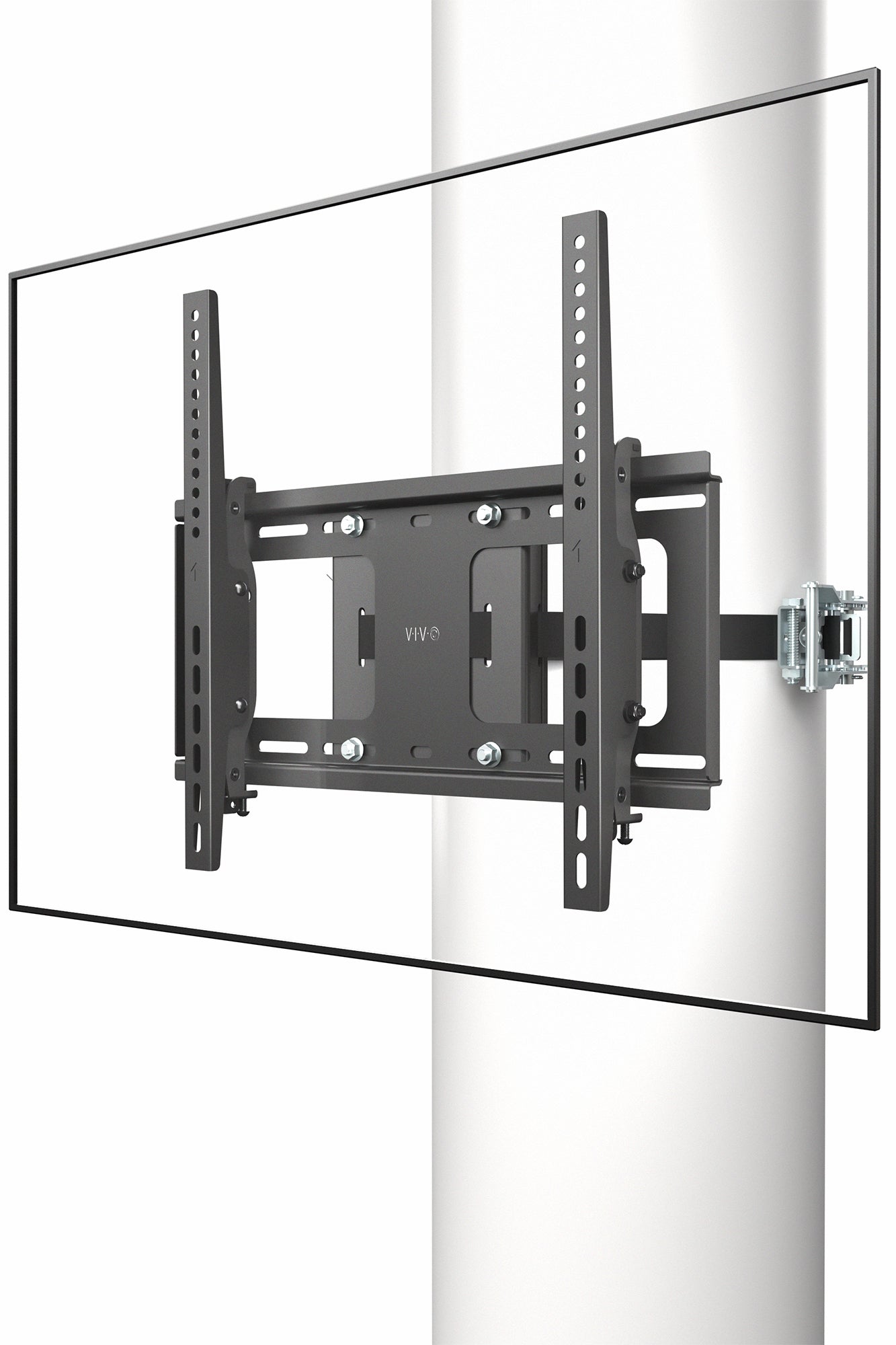

Strap-On Full Motion Round and Square Column TV Mount - 40" to 86" Screens

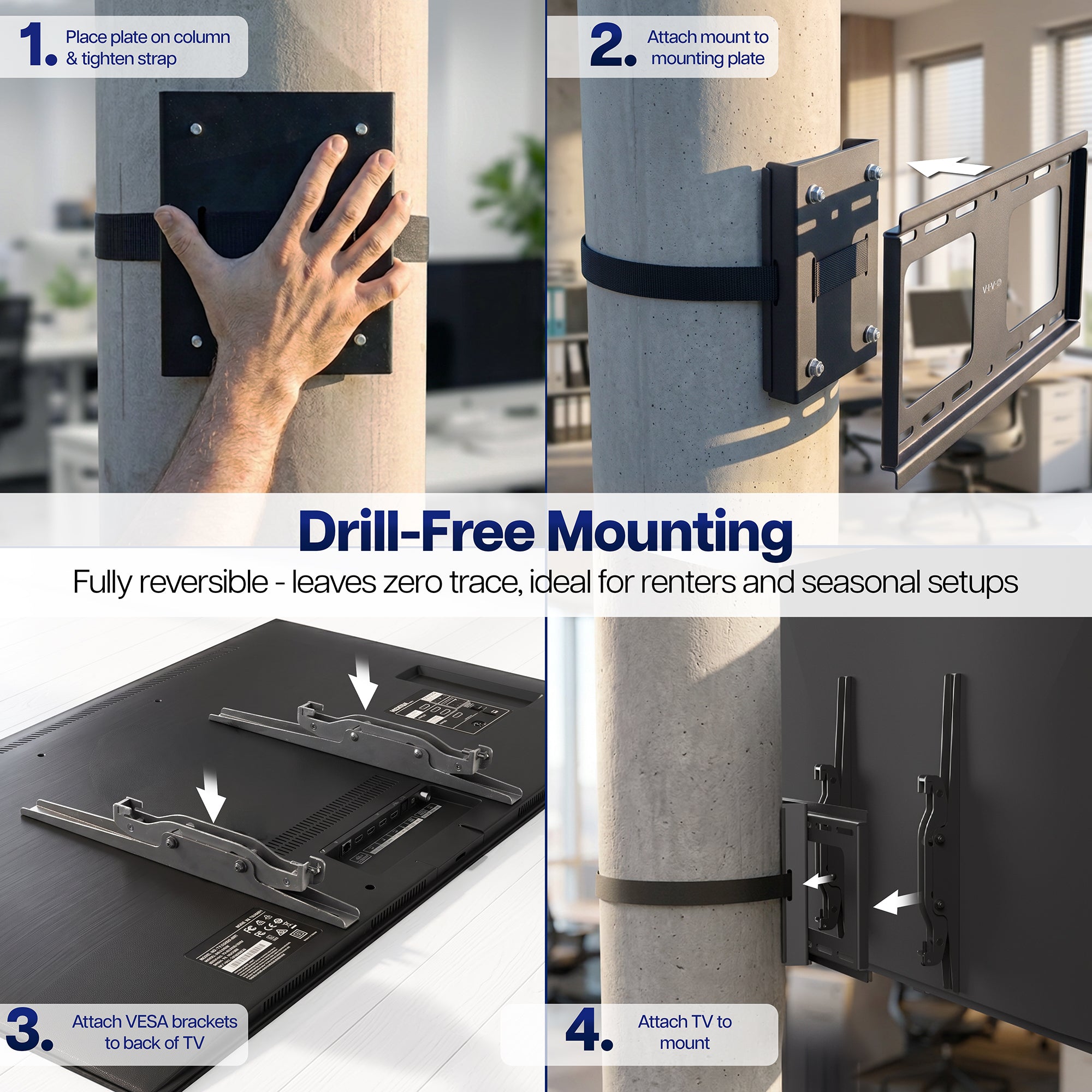

Mount your TV on an exposed column, post, or pillar without drilling a single hole. The VIVO MOUNT-GTM86 uses a heavy-duty fabric strap (55.5") that wraps securely around circular, rectangular, square, beam, hexagonal, or triangular columns up to 18" in diameter and 67.5" in perimeter, making it a perfect fit for entertainment spaces. Features +8° to -9° of tilt so you can lock in the perfect viewing angle and cut down on glare no matter where you're seated. Compatible with screens from 40" to 86" and VESA patterns up to 400x400mm, the mount attaches to large columns with the strap, wood stud, or concrete and brick. The aluminum and steel construction keeps the profile slim at 3.8”, and it can hold up to 132 lbs with ease. Step-by-step instructions and all hardware are included. Not designed for horizontal bar installation or outdoor use.

• Screen Sizes: 40” to 86”
• VESA Standard: 75x75mm, 100x100mm, 200x100mm, 200x200mm, 300x200mm, 400x200mm, 300x300mm, 400x400mm
• Mounting Options: Pole (Strap-On), Wood Stud, Concrete/Brick

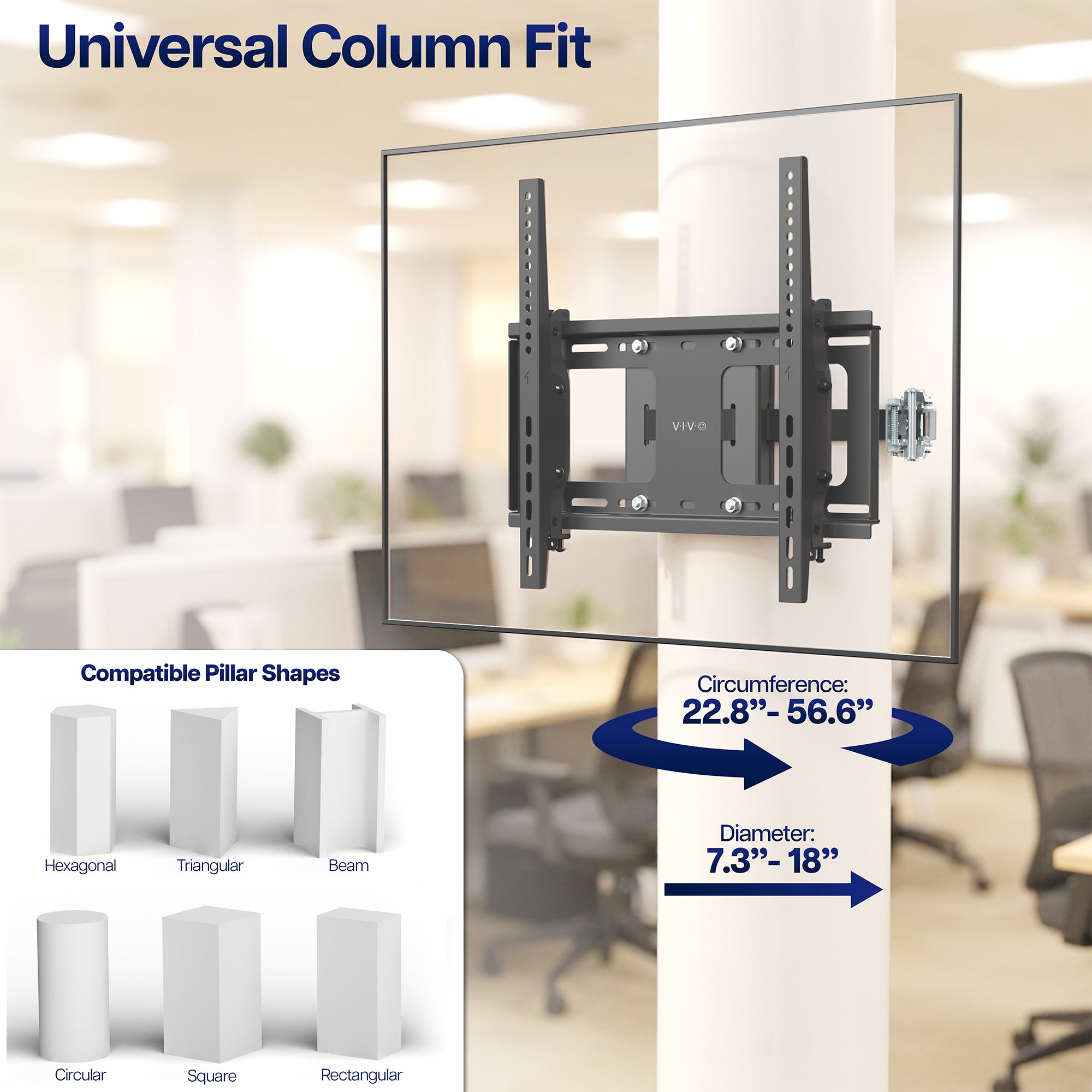

• Pillar Shape: Circular, Rectangular, Square, Beam, Hexagonal, Triangular
• Minimum Flat Side Length: 7” (Bracket Width)
• Maximum Perimeter: 67.5”
• Compatible Circumference: 22.8” to 56.6”
• Compatible Diameter: 7.3” to 18”
• Weight Capacity: 132 lbs

• Material: Aluminum, Steel, Plastic, Fabric
• Profile: 3.8”

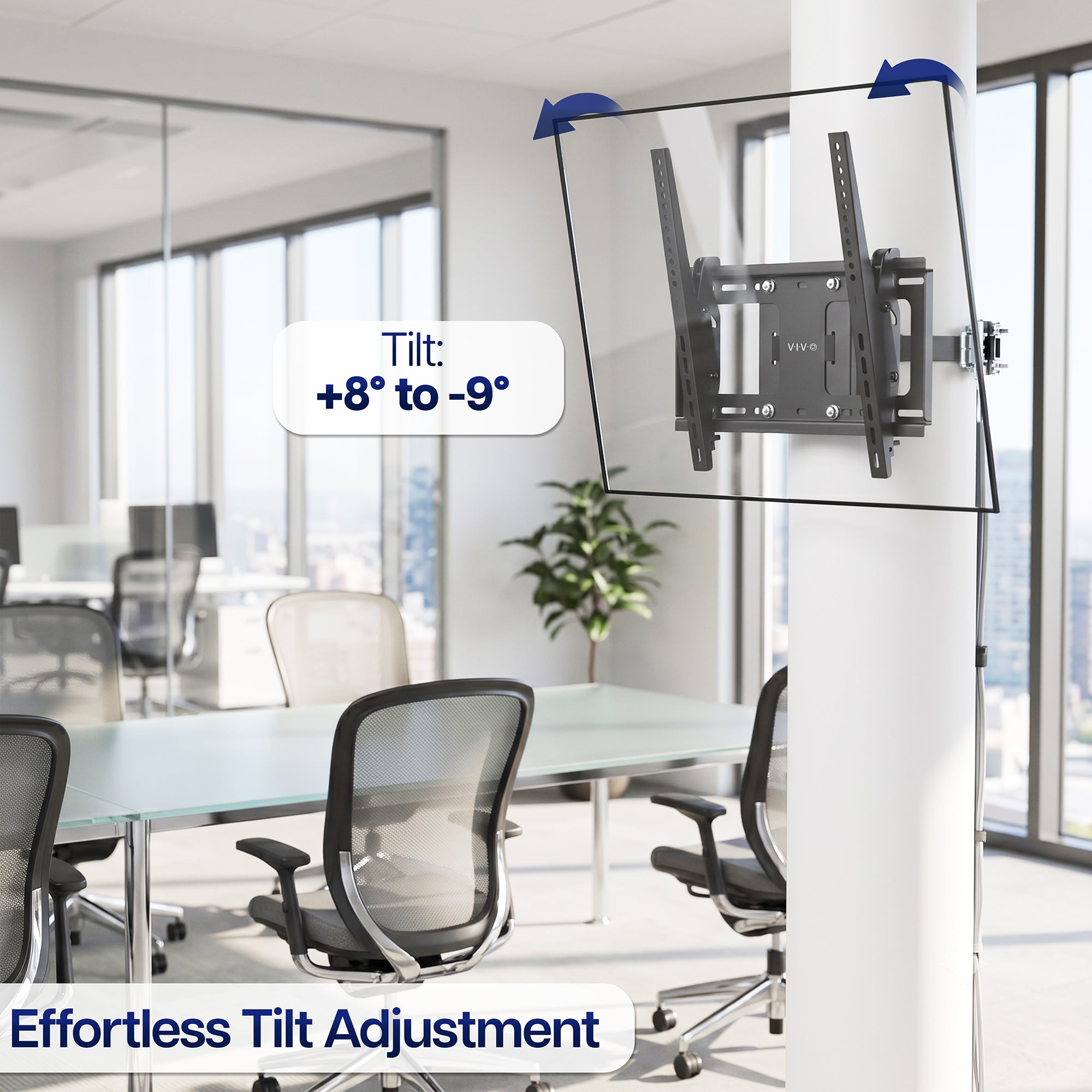

• Tilt: +8° to -9°

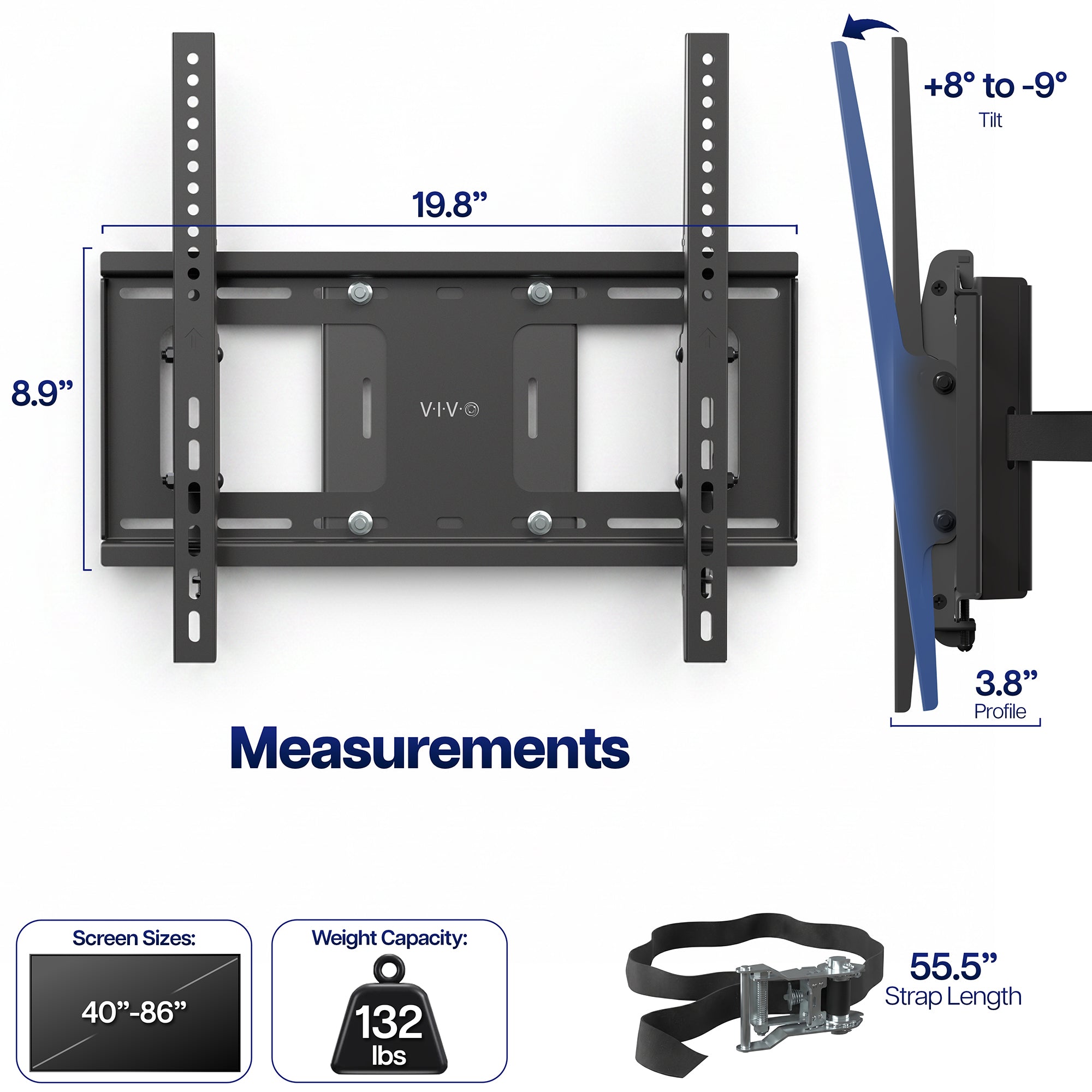

• Mounting Plate Dimensions: 19.8” L x 8.9” H
• Mounting Plate Thickness: 0.8”

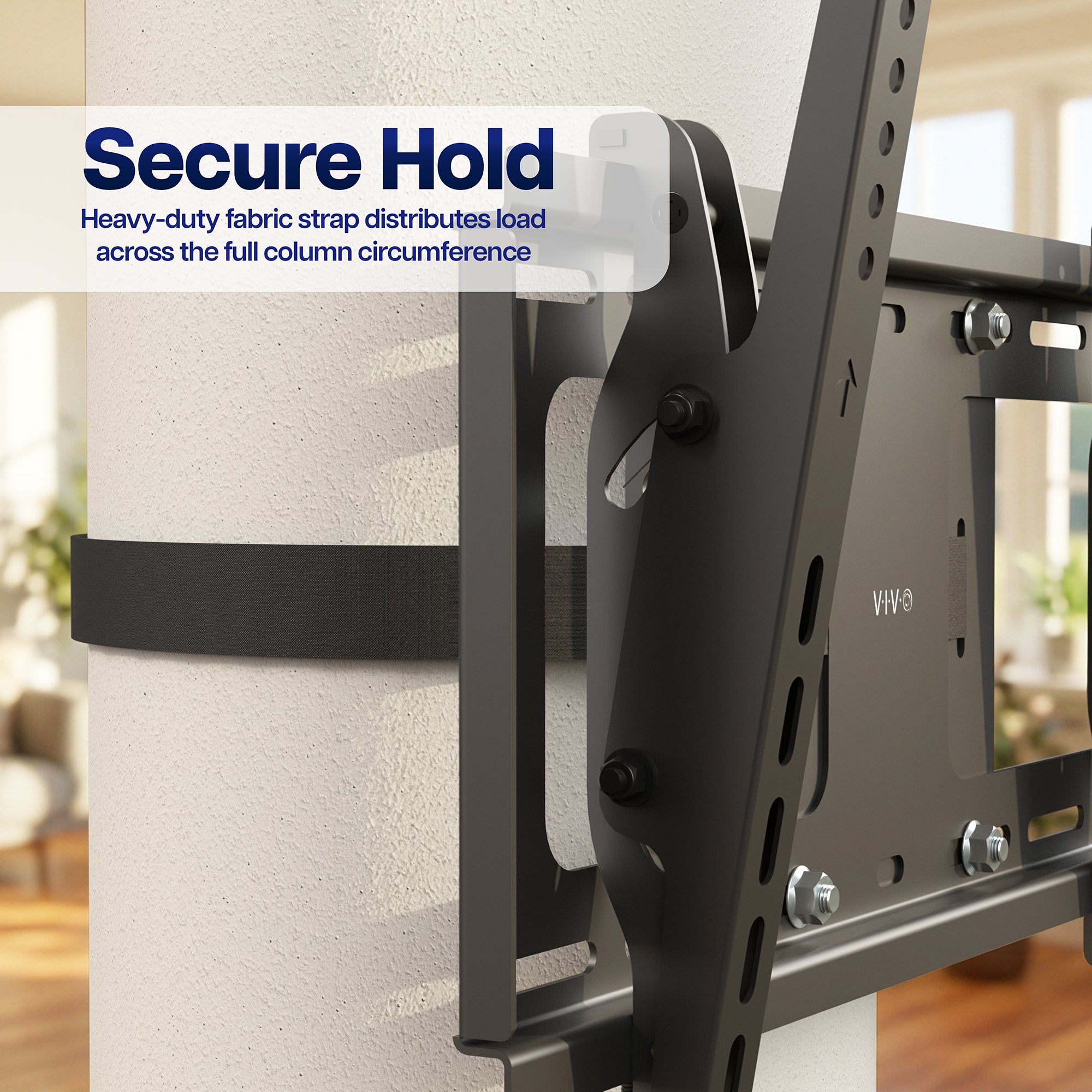

• Strap Length: 55.5”
• Total Product Dimensions: 19.8” x 3.8” x 8.9”

• Assembly Manual PDF
