Manual Flip Down / Swivel Ceiling TV Mount - 40" to 70" Screens

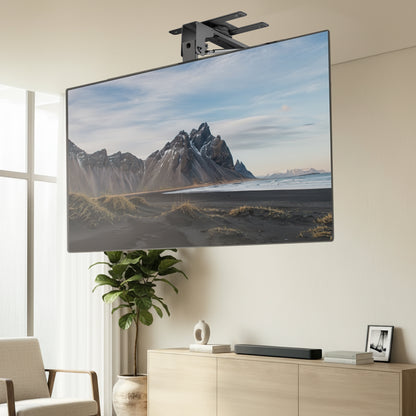

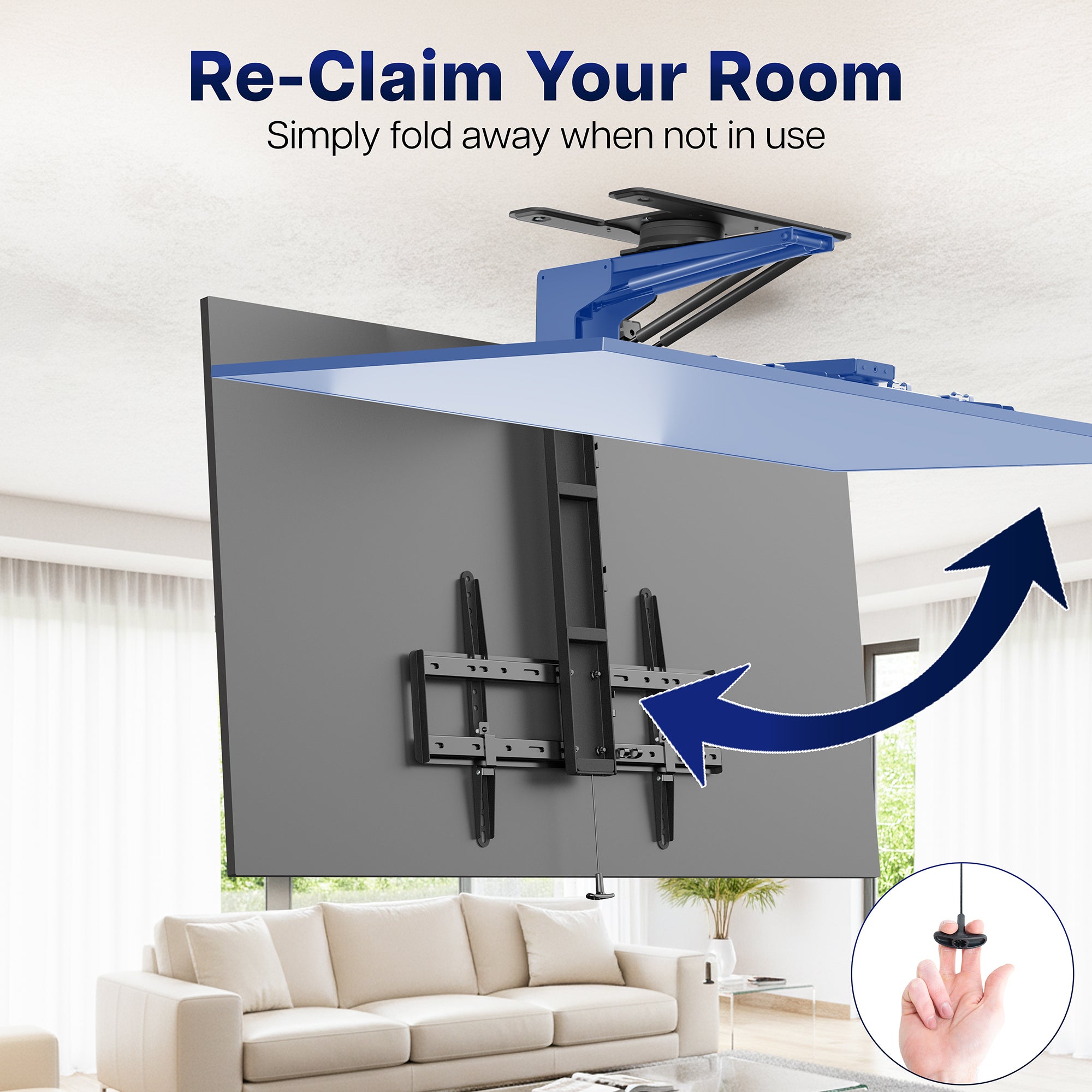

The VIVO Manual Flip Down and Swivel Ceiling TV Mount (MOUNT-M-FD70S) offers an exceptional solution for maximizing space saving by discreetly stowing your television when not in use. Constructed from durable solid steel, this mount features a modern aesthetic suitable for various environments. It is designed to accommodate most 40" to 70" flat or curved screens with a weight capacity of up to 77 lbs, and it is compatible with both flat and pitched ceilings. Effortlessly adjust your screen with a simple pull of the cord. The mount offers versatile movement, including 0° to -90° tilt, a full 360° swivel, and accurate screen leveling for the best viewing angles and to minimize glare. When retracted, the mount maintains a low profile, projecting only 10.25" from the ceiling. Installation is facilitated by the inclusion of necessary hardware and instructions, and integrated clips ensure effective cable management. The mount comes with all the hardware and instructions you'll need for installation.

• Screen Sizes: 40” to 70”

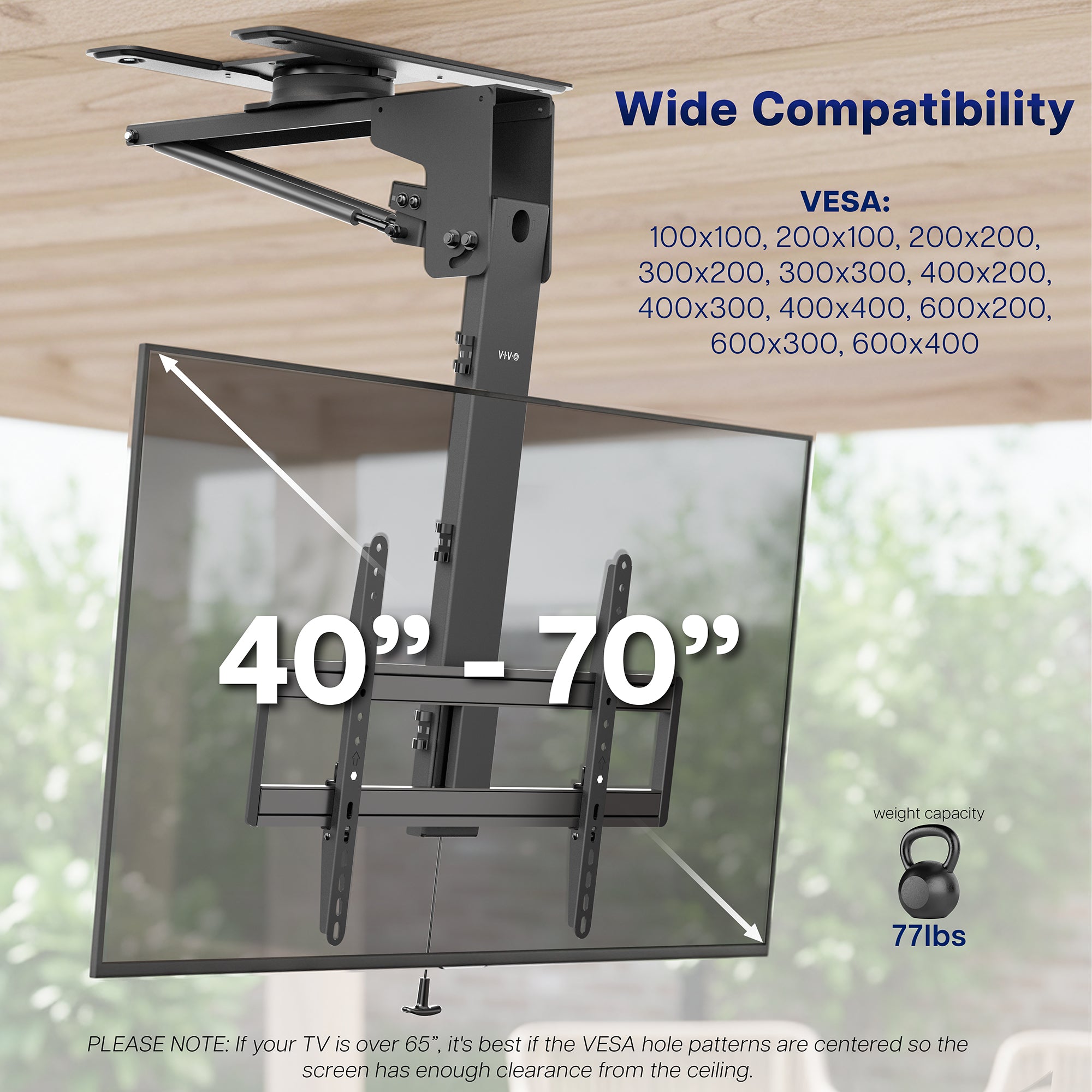

• VESA Standard: 100x100mm, 200x100mm, 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 600x200mm, 600x300mm, 600x400mm

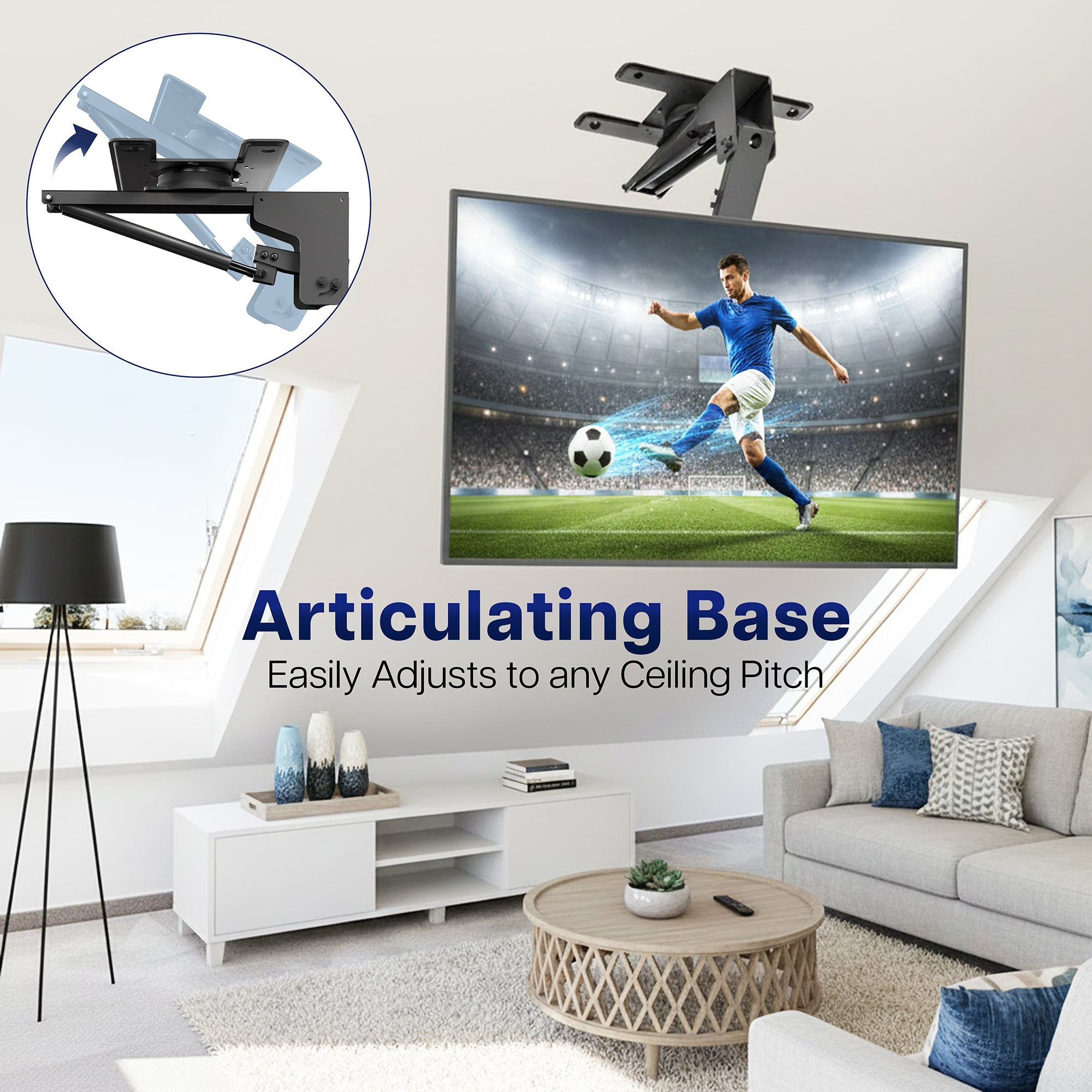

• Ceiling Types: Flat and Pitched Surfaces
• Screen Types: Flat and Curved
• Weight Capacity: 77 lbs
• PLEASE NOTE: If your TV is over 65”, it's best if the VESA hole patterns are centered so the screen has enough clearance from the ceiling.

• Material: Steel
• Mount Type: Manual

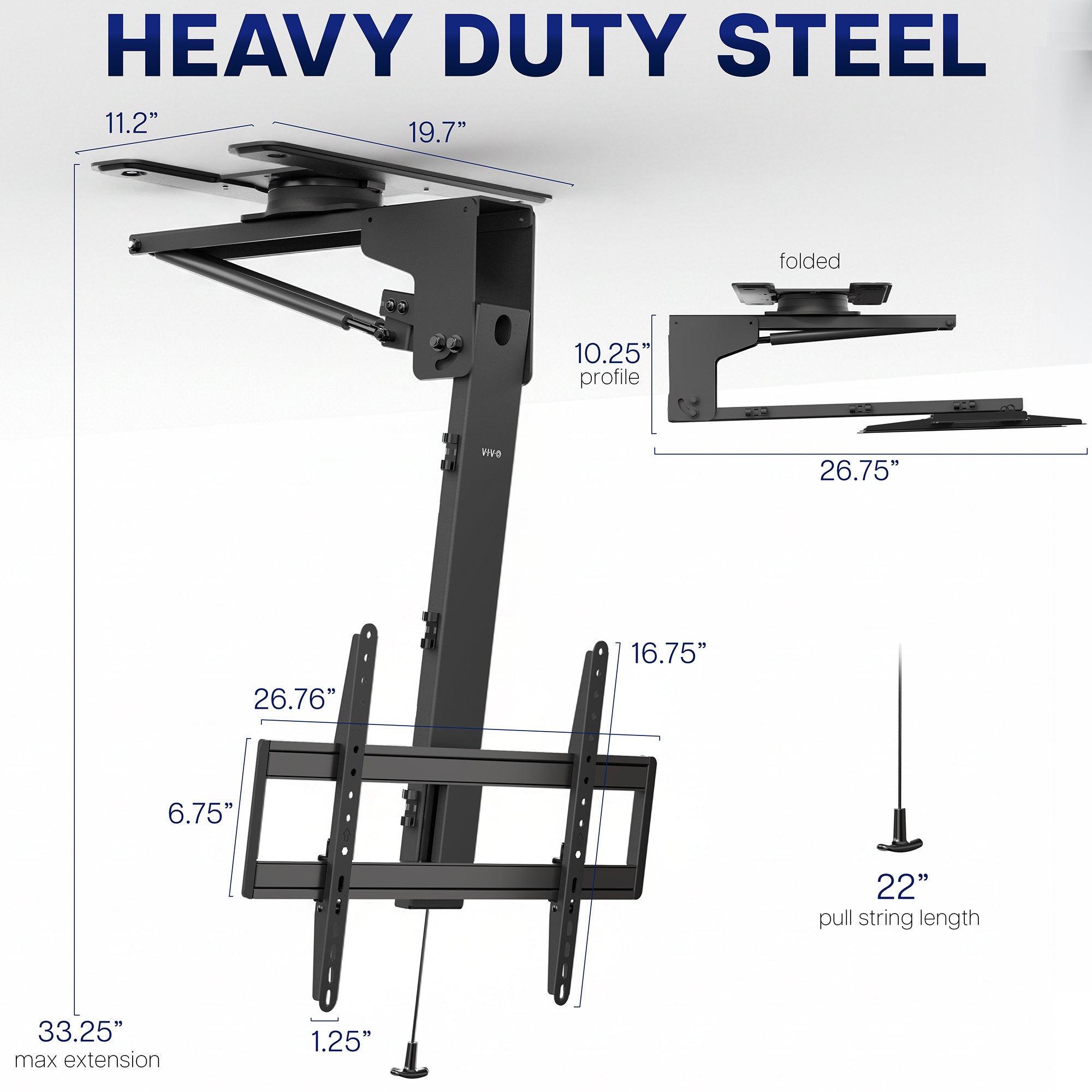

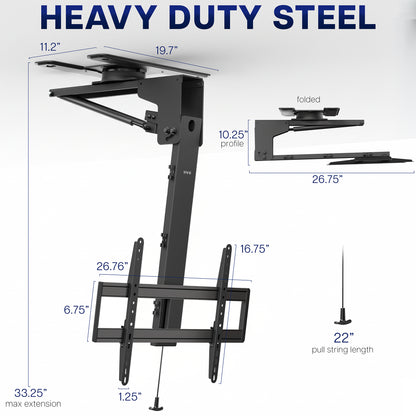

• Total Dimensions: 33.25” L x 26.75” W x 21.75” H
• Folded Dimensions: 10.25” L x 26.75” W x 21.75” H
• Profile: 10.25” (when folded)

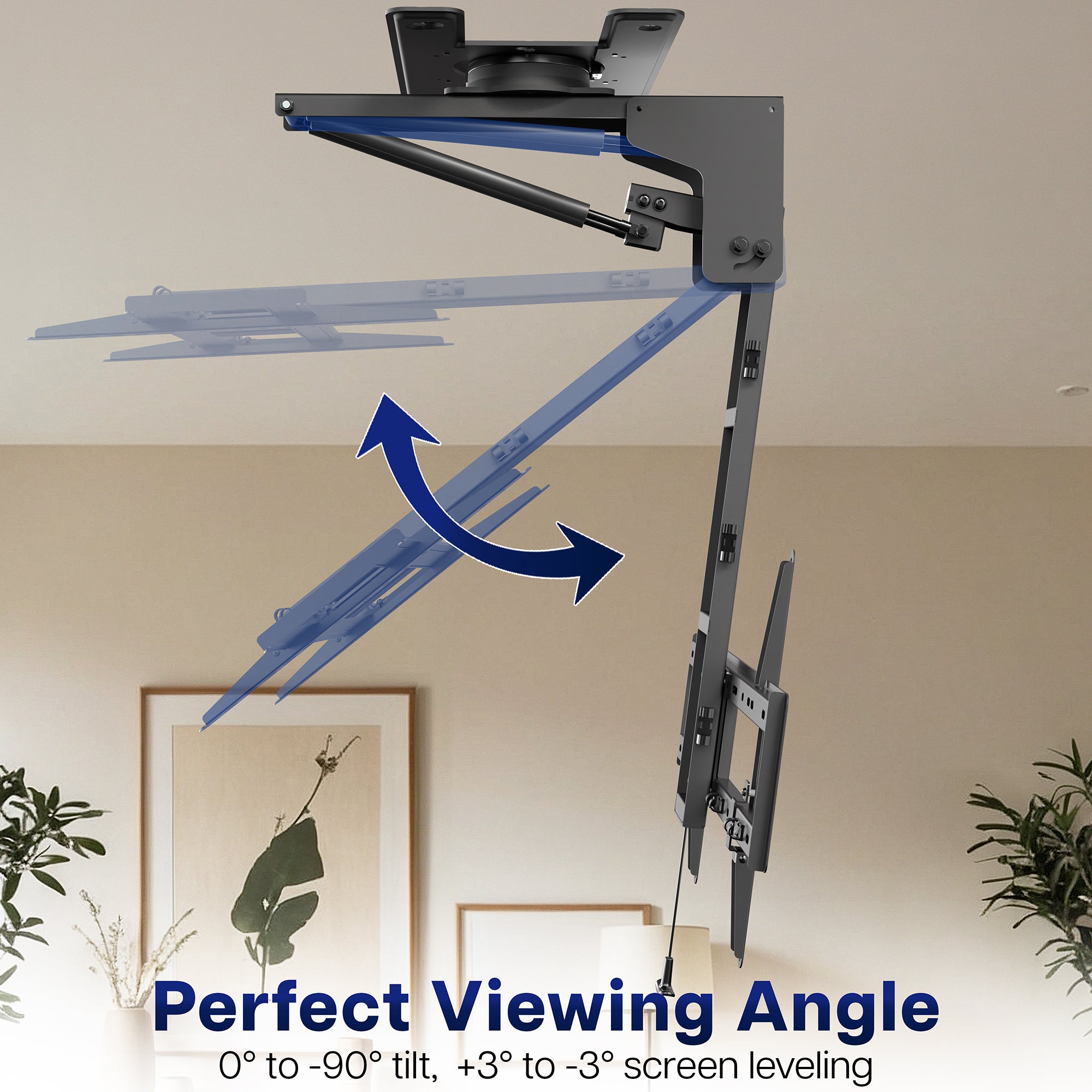

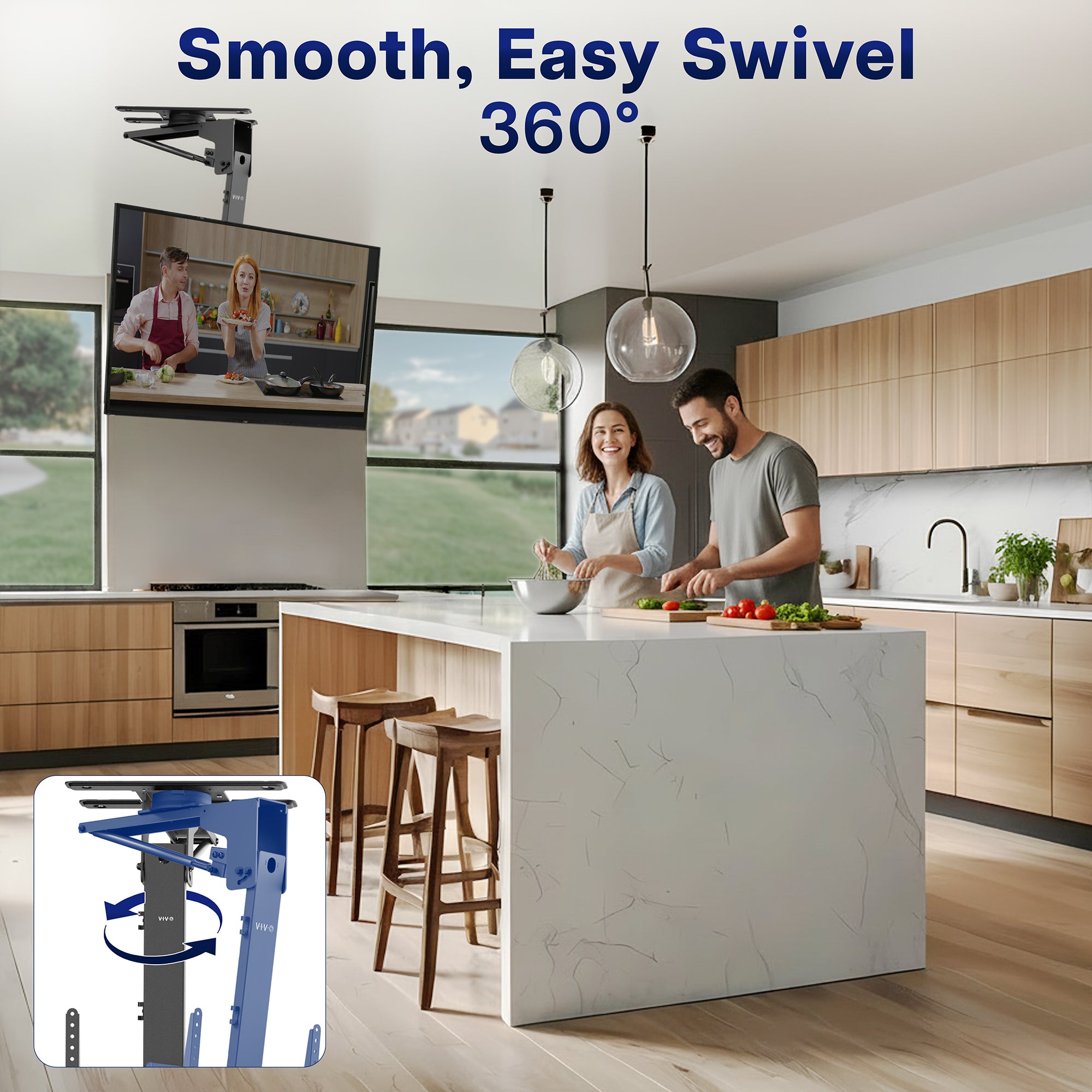

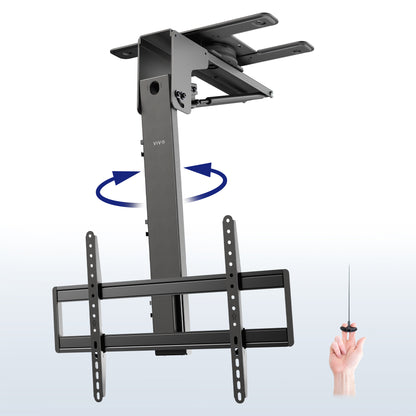

• Articulation: 0° to -90° tilt, 360° swivel, +3° to -3° screen leveling
• Distance From Ceiling: 8.3”, 29.5” (center of mounting plate)

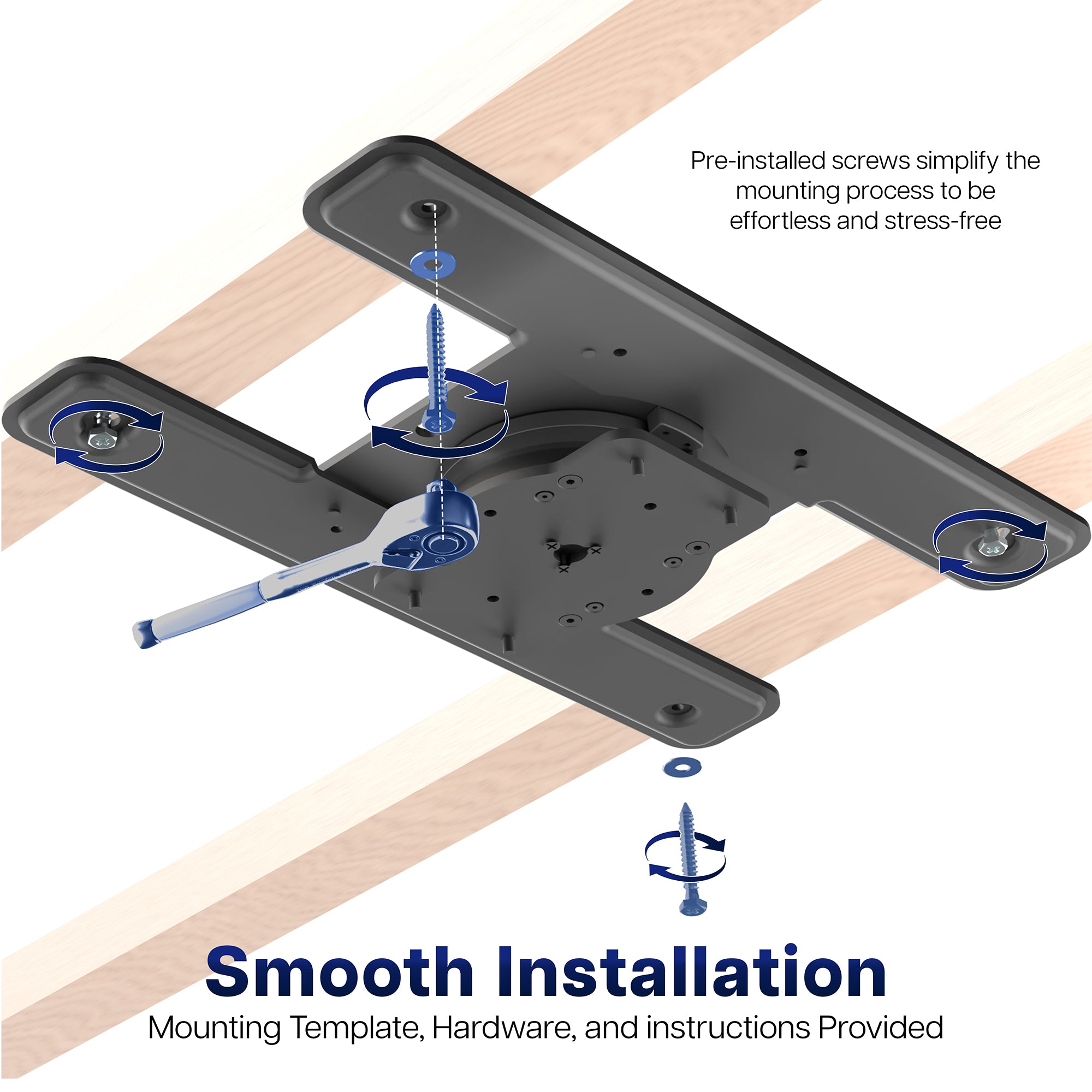

• Ceiling Mount Dimensions: 19.7” L x 11.2” W (includes mounting brackets)
• Mounting Plate Dimensions: 6.75” L x 26.75” H
• VESA Bracket Dimensions: 16.75” x 1.25”
• Product Weight: 35.2 lbs

• Assembly Manual PDF
