Single Monitor Pegboard Panel Mount

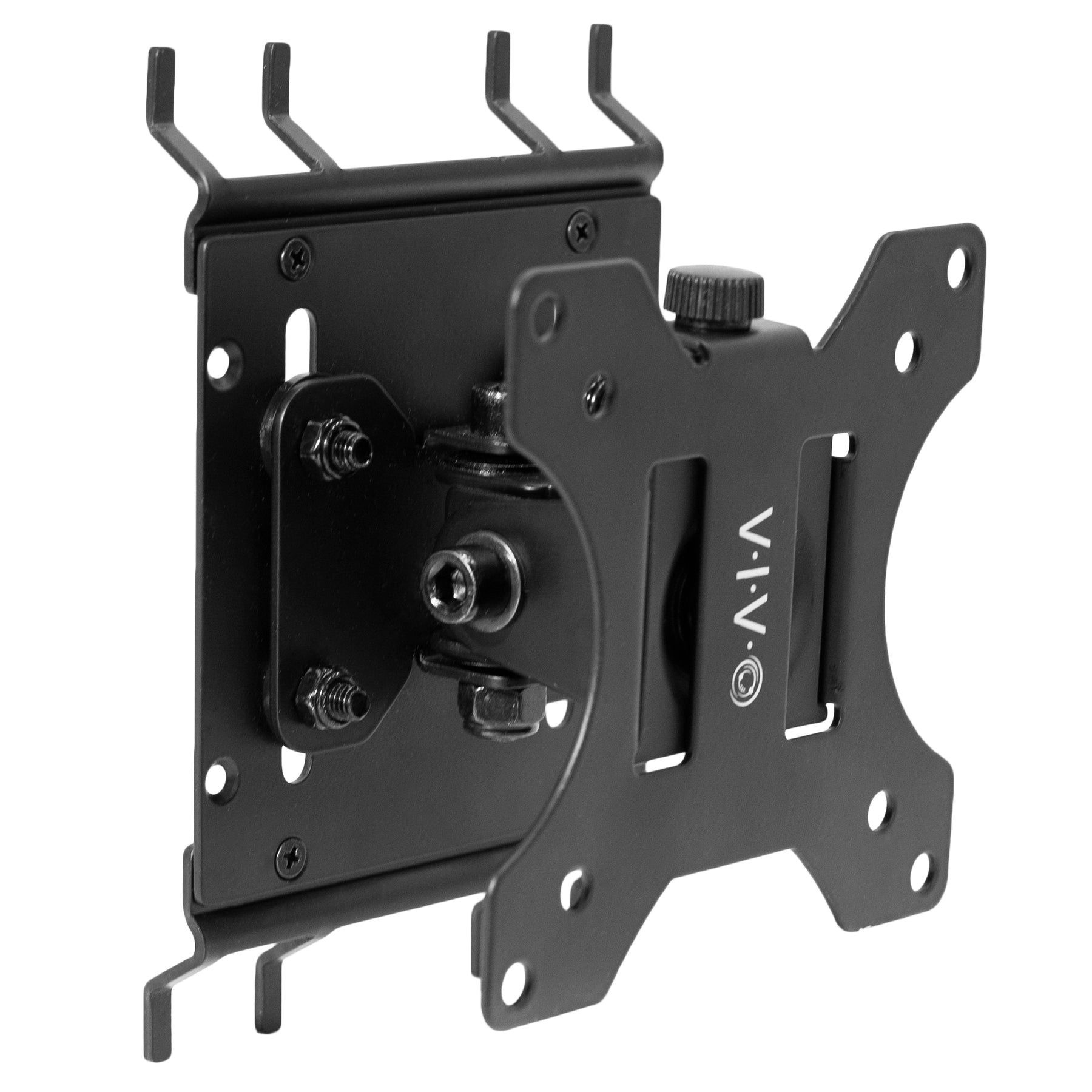

Expand your screen mounting capability with the Single Monitor Pegboard Panel Mount (MOUNT-PB1) from VIVO! Whether you have a clamp-on desk pegboard divider or a freestanding pegboard panel, if it doesn’t exceed 0.25” in thickness and has 1” hole spacing, you can install this monitor mount anywhere on the pegboard! The solid steel bracket holds 1 screen up to 32” in size and 17.6 lbs in weight with VESA 75x75mm or 100x100mm hole patterns. Once your screen is secured in place, the mount also features tilt and swivel capability for comfortable viewing angles. We provide all the hardware and simple 4-step instructions for assembly, and a removable VESA plate makes mounting and unmounting your screen a fast and easy process.

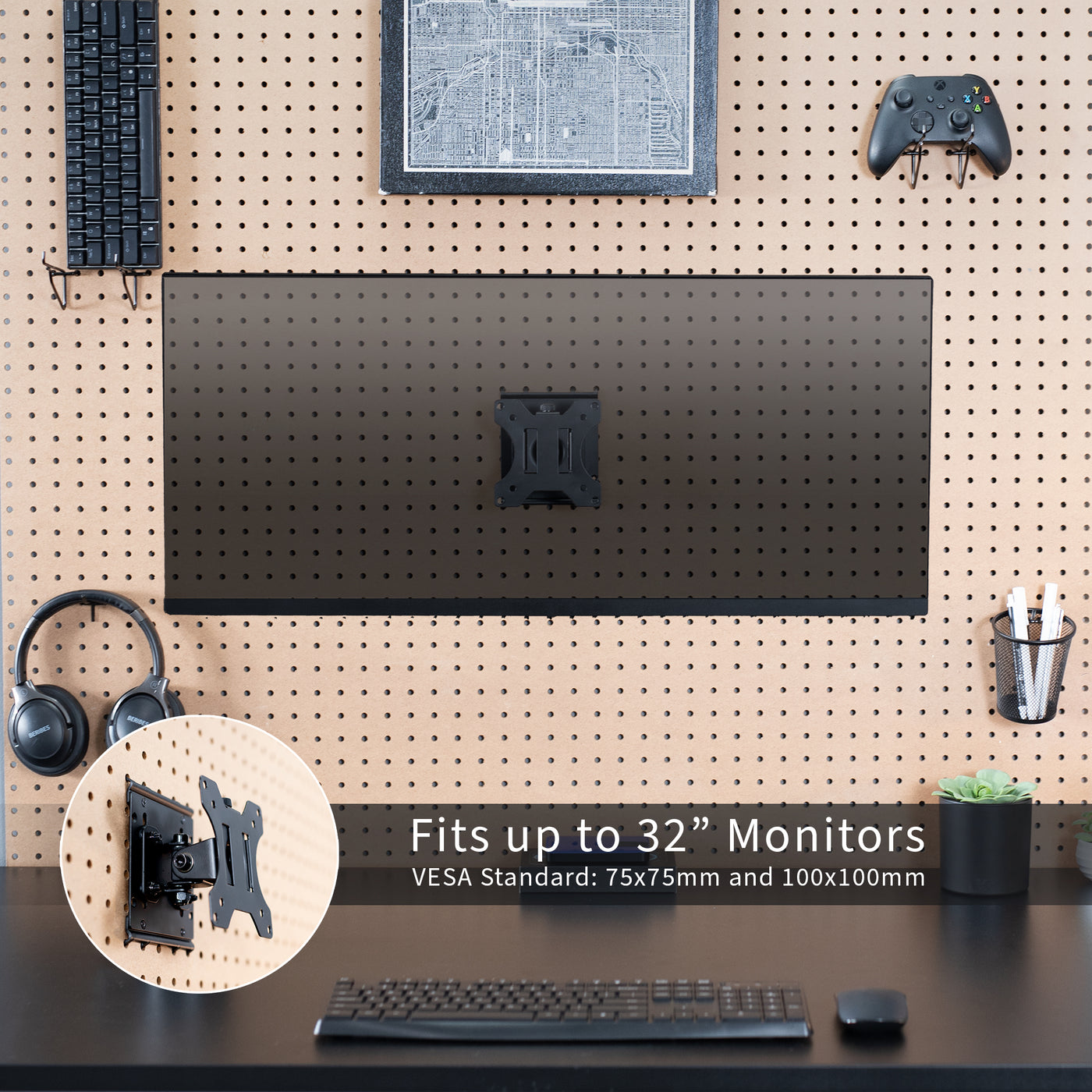

• Screen Size: Fits up to 32” Monitors
• VESA Standard: 75x75mm and 100x100mm

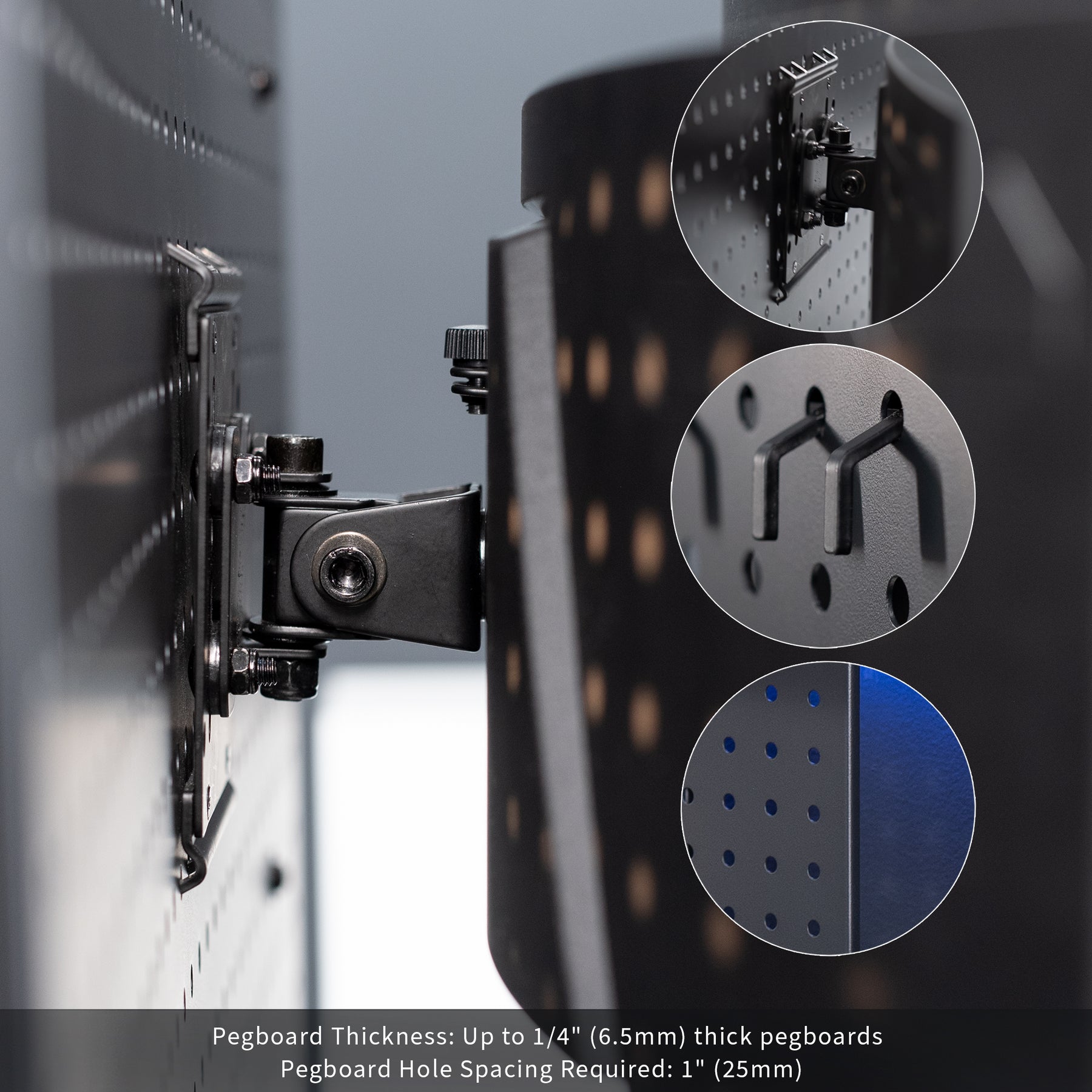

• Compatible Pegboard Thickness: Up to 1/4" (6.5mm) thick pegboards
• Required Pegboard Hole Spacing: 1" (25mm)
• Weight Capacity: 17.6 lbs

• Material: Steel

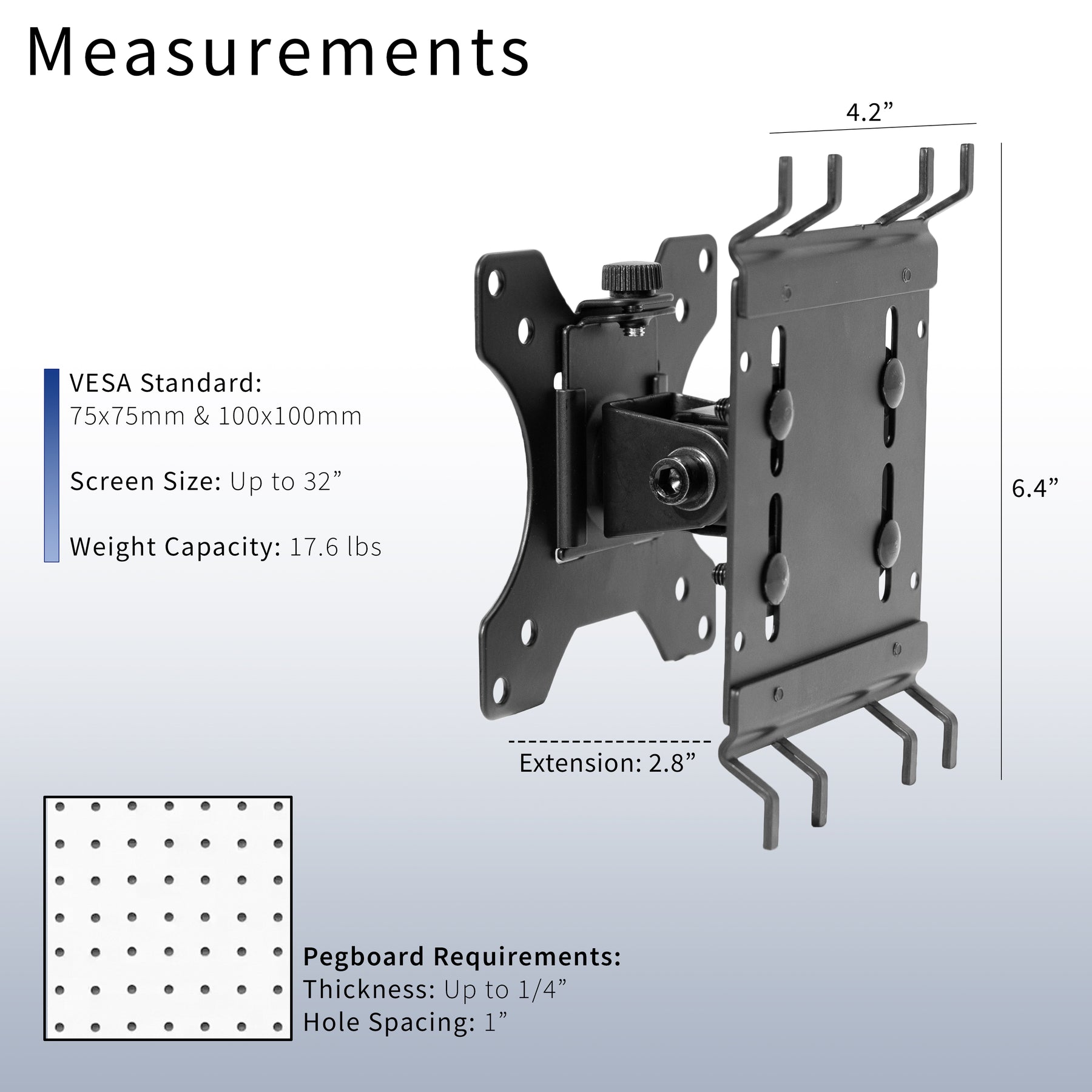

• Product Dimensions: 4.2” x 3.2” x 6.4”

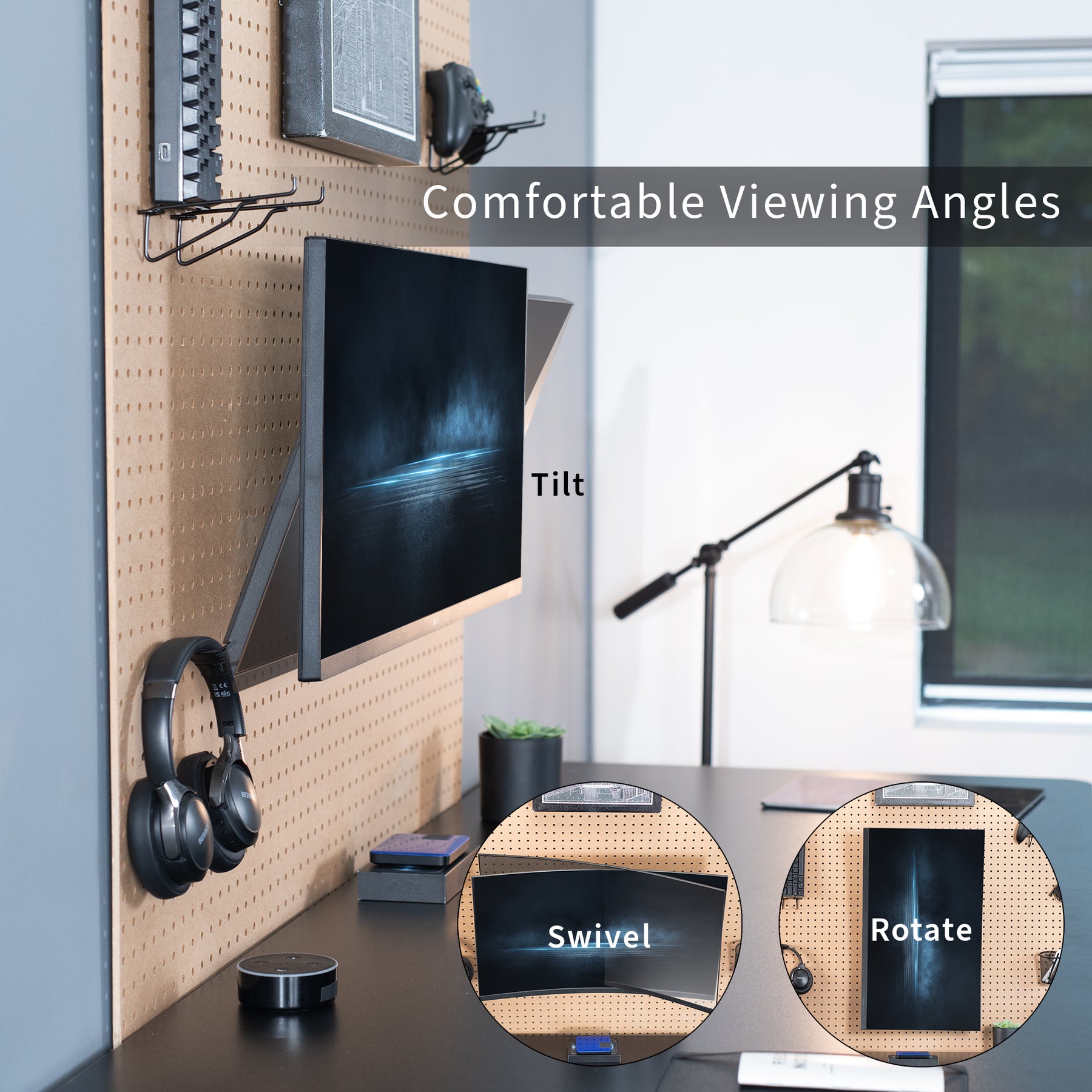

• Articulation: Tilt, Swivel (will vary depending on screen size), and 360° Rotation
• Extension: 2.8”

• Assembly Manual PDF
