Outdoor Full Motion TV Wall Mount

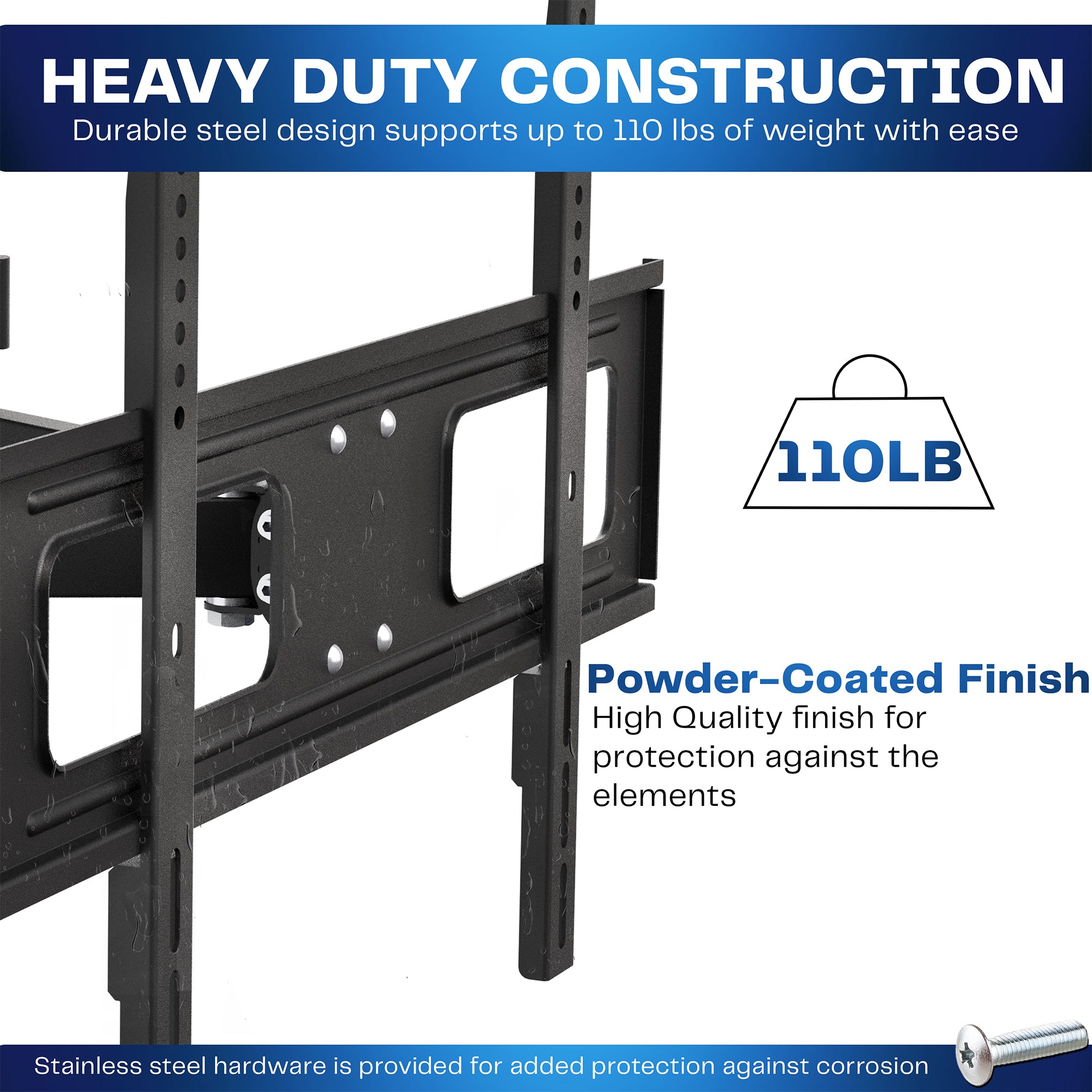

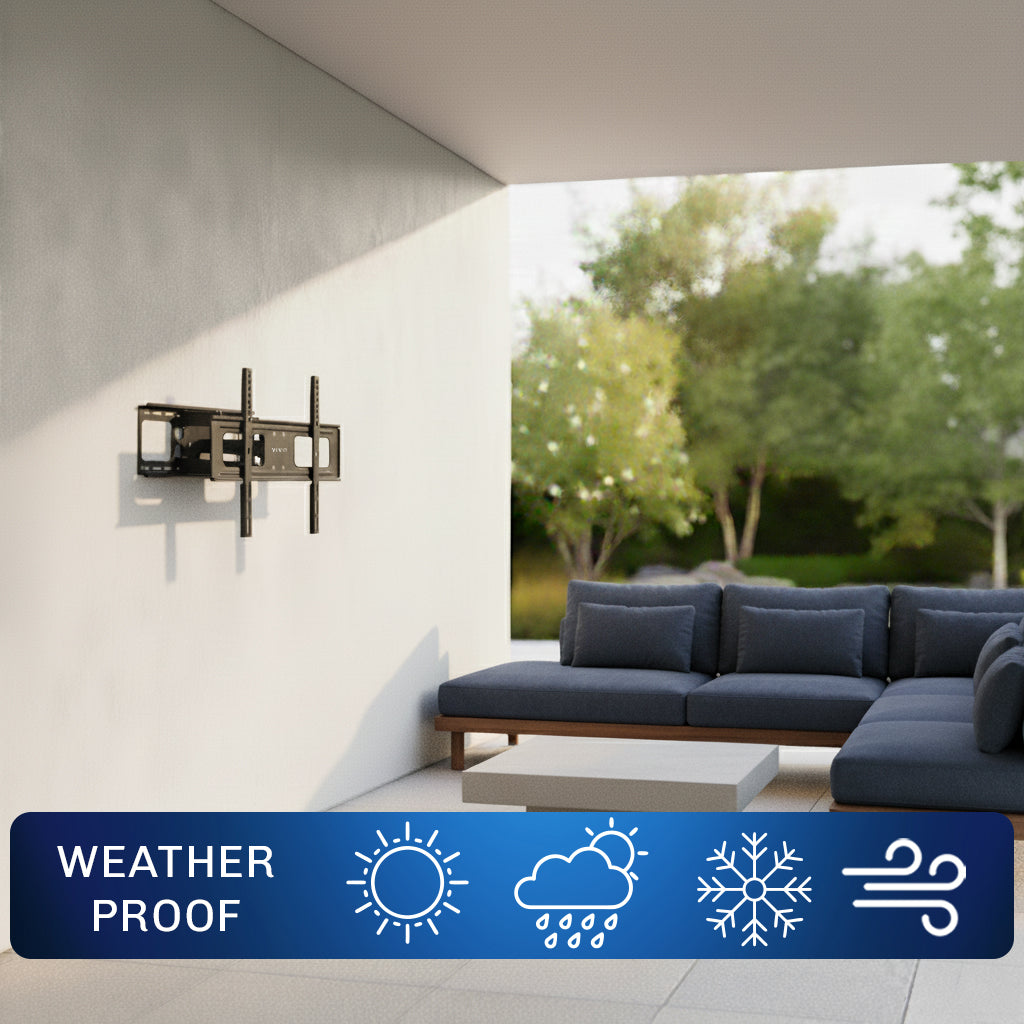

Create your own patio screen display with the Outdoor Full Motion TV Wall Mount (MOUNT-TV80WP) from VIVO! Supporting 37” to 80” screens weighing up to 110 lbs with 200x200mm to 600x400mm VESA patterns, this mount will keep your large screen safe and secure. Features include solid steel construction for strength and durability, a high-quality outdoor powder-coated finish for protection against the elements, and smooth articulation for effortless screen positioning. The sleek arm holds your TV 2.8" to 20” from the wall for low profile capability and viewing flexibility. Assembly is an easy process, and we provide all the hardware to get your screen properly mounted in no time!

• Screen Sizes: 37” to 80”
• Screen Type: Flat and Curved
• Mounting Options: Wood Stud, Brick/Concrete Wall
• VESA Standard: 200x200mm, 300x200mm, 400x200mm, 300x300mm, 400x300mm, 400x400mm, 600x400mm
• Weight Capacity: 110 lbs

• Material: Steel
• Extension (Profile): 2.8” to 20”

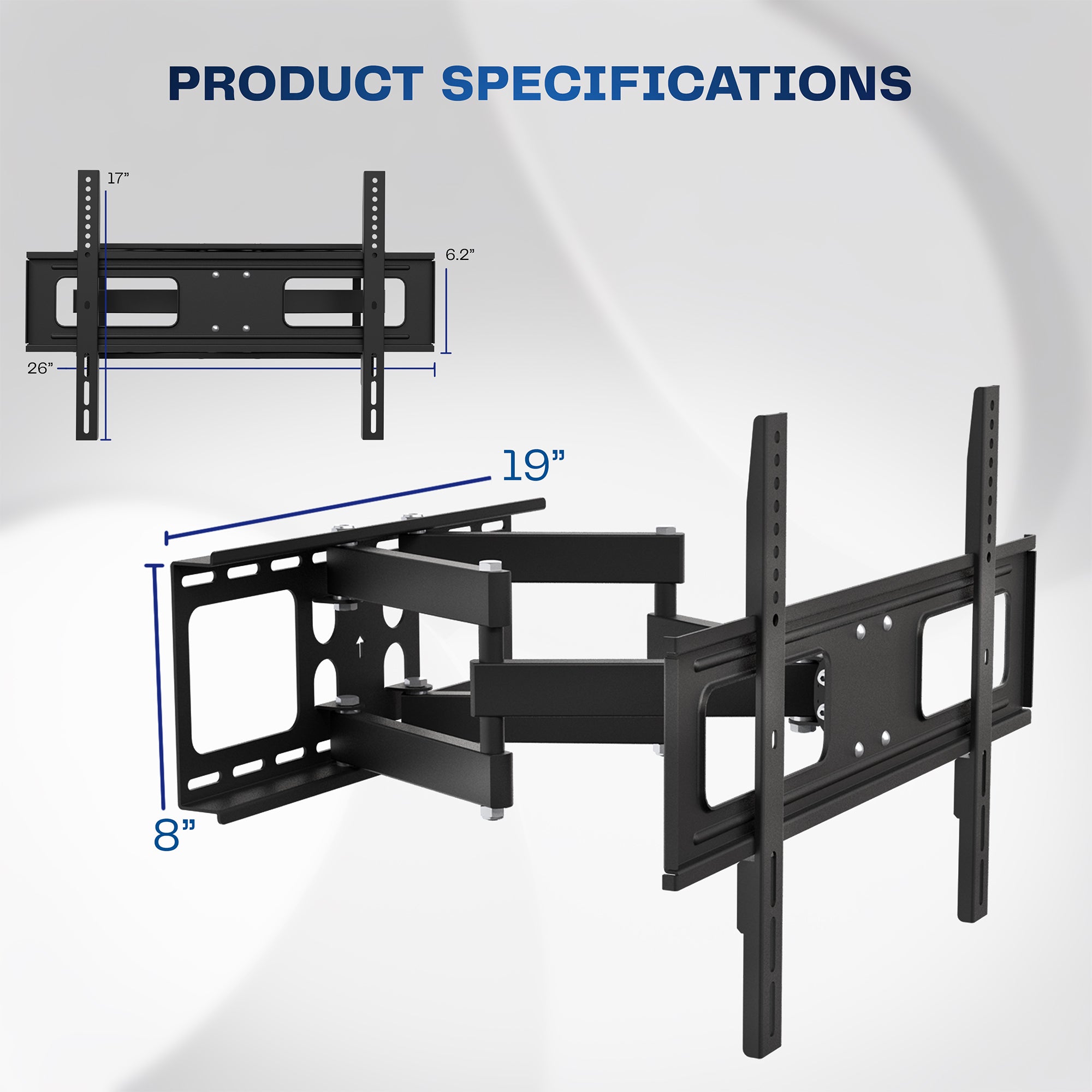

• Wall Base Dimensions: 19” x 8”
• Main Bracket Dimensions: 26” x 6.2”
• VESA Bracket Dimensions: 17” x 1.2”
• Articulation: +15° to -15° tilt, +60° to -60° swivel, +3° to -3° screen leveling
• Total Product Dimensions: 26” x 2.8” x 17”

• Assembly Manual PDF
