Easy to build and use
About Product

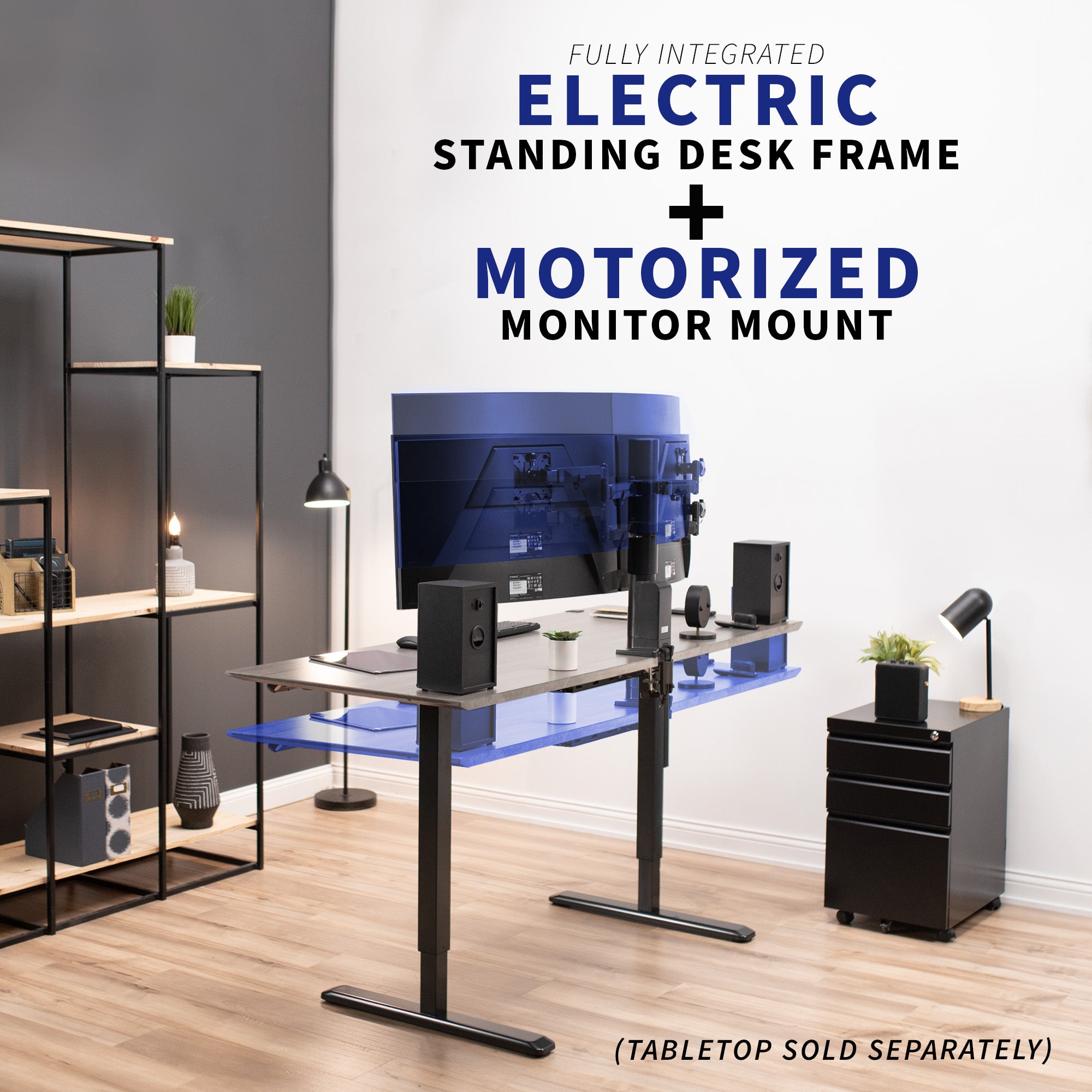

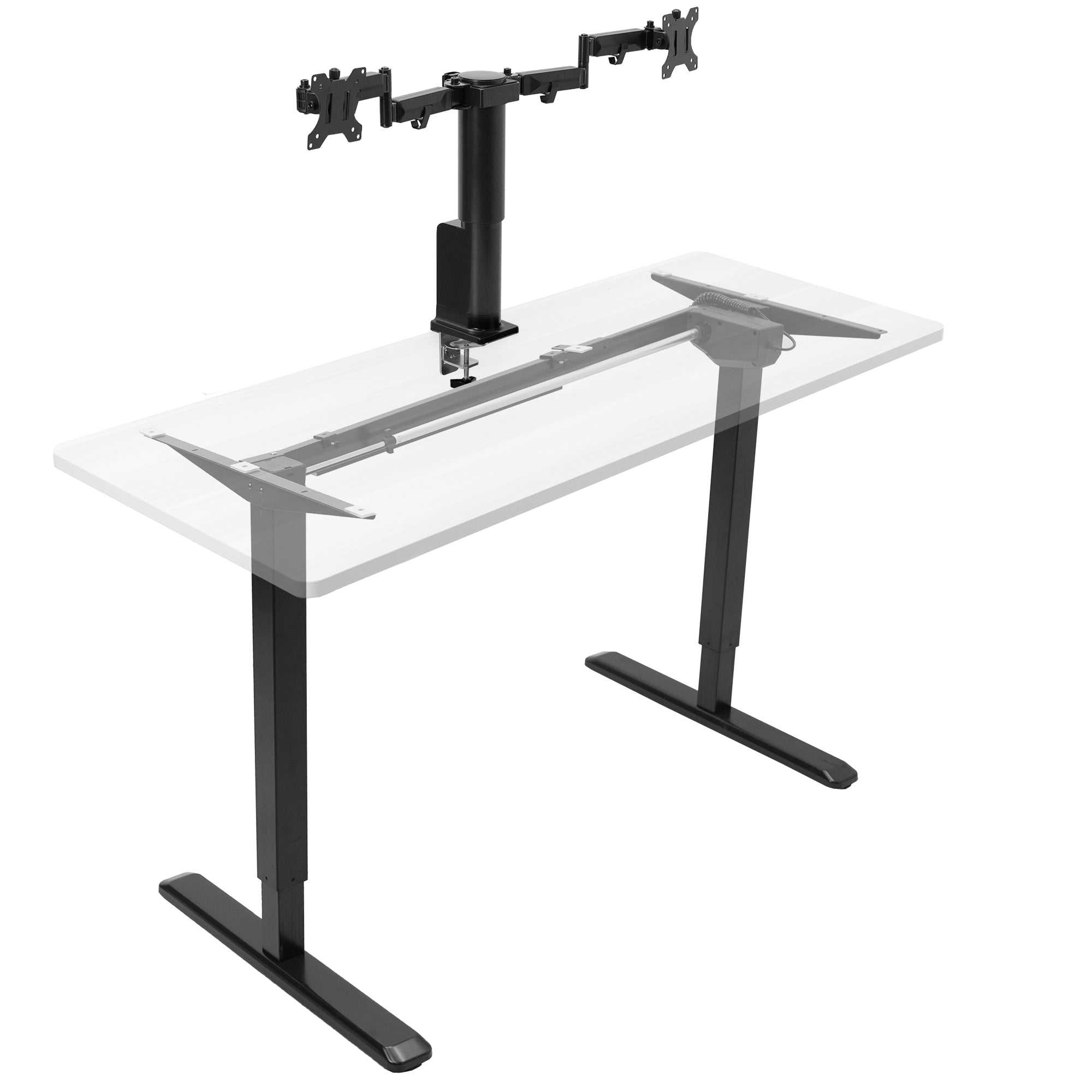

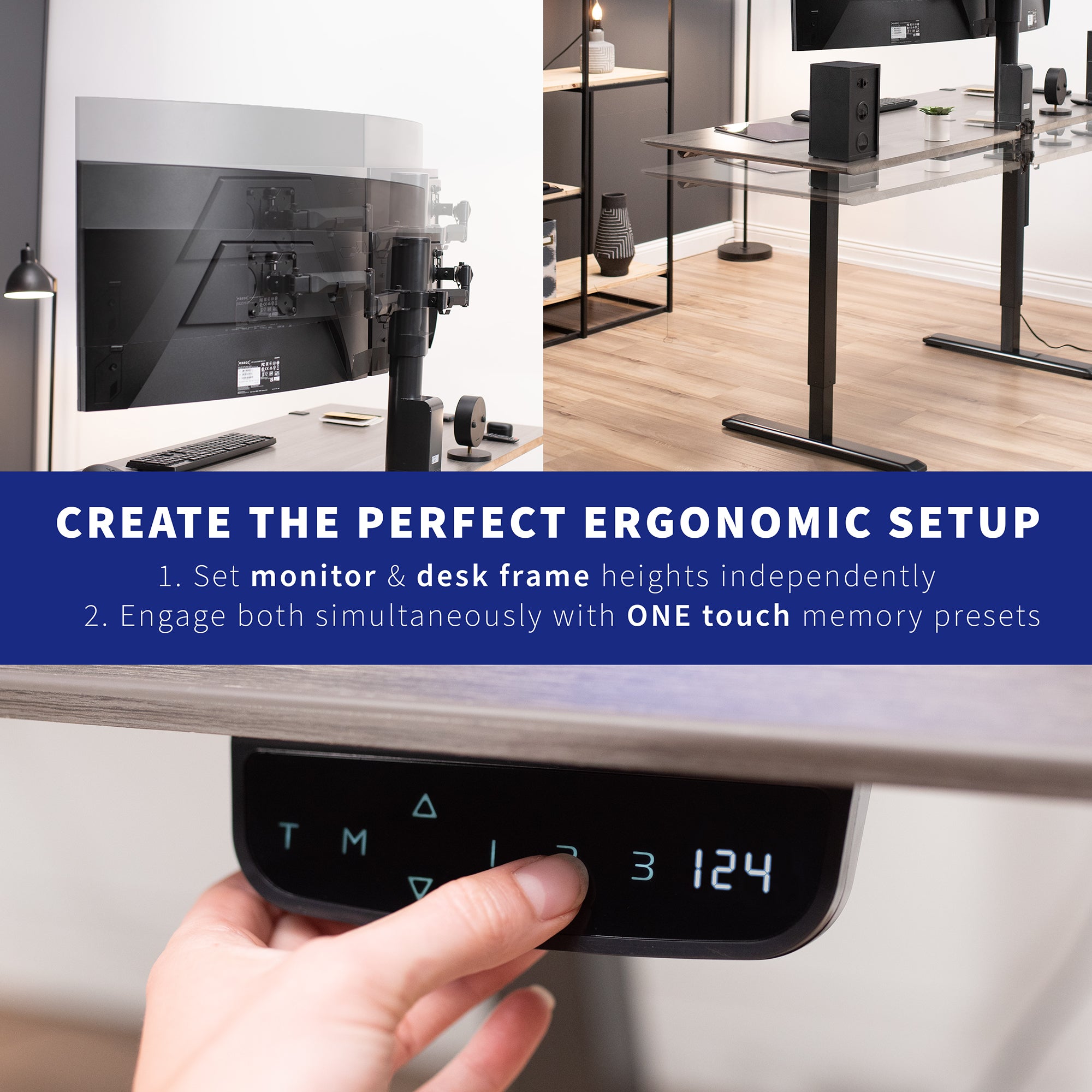

Take ergonomics to a new level with the first-on-the-market Black Single Motor Desk Frame with Electric Dual Monitor Arm (STAND-E-102B) from VIVO! The sleek touch panel controller allows for independent height adjustments of the electric desk frame and motorized dual monitor mount, making it easy to find the perfect ergonomic height for both viewing and typing. Heights are individually set when customizing memory function, then simultaneously engaged when the memory key is selected. The monitor mount also includes a single monitor converter collar if your setup only has one monitor. Solid steel construction keeps your desk frame and monitor stand stable for long-lasting use. Please note this product requires a separate purchase of a compatible table top.
Compatibility
- --- Monitor Stand ---
- Screen Sizes: 20" to 32"
- VESA Standard: 75x75mm and 100x100mm
- Compatible Desktop Thickness: 0.75” to 3.35”
- Recommended Desktop Length: 41” to 85”
- Recommended Desktop Width: 23” to 44”
- Recommended Desktop Thickness: 0.75” to 3.35”
- Weight Capacity: 22 lbs
- --- Desk Frame ---
- Weight Capacity: 176 lbs
Specifications

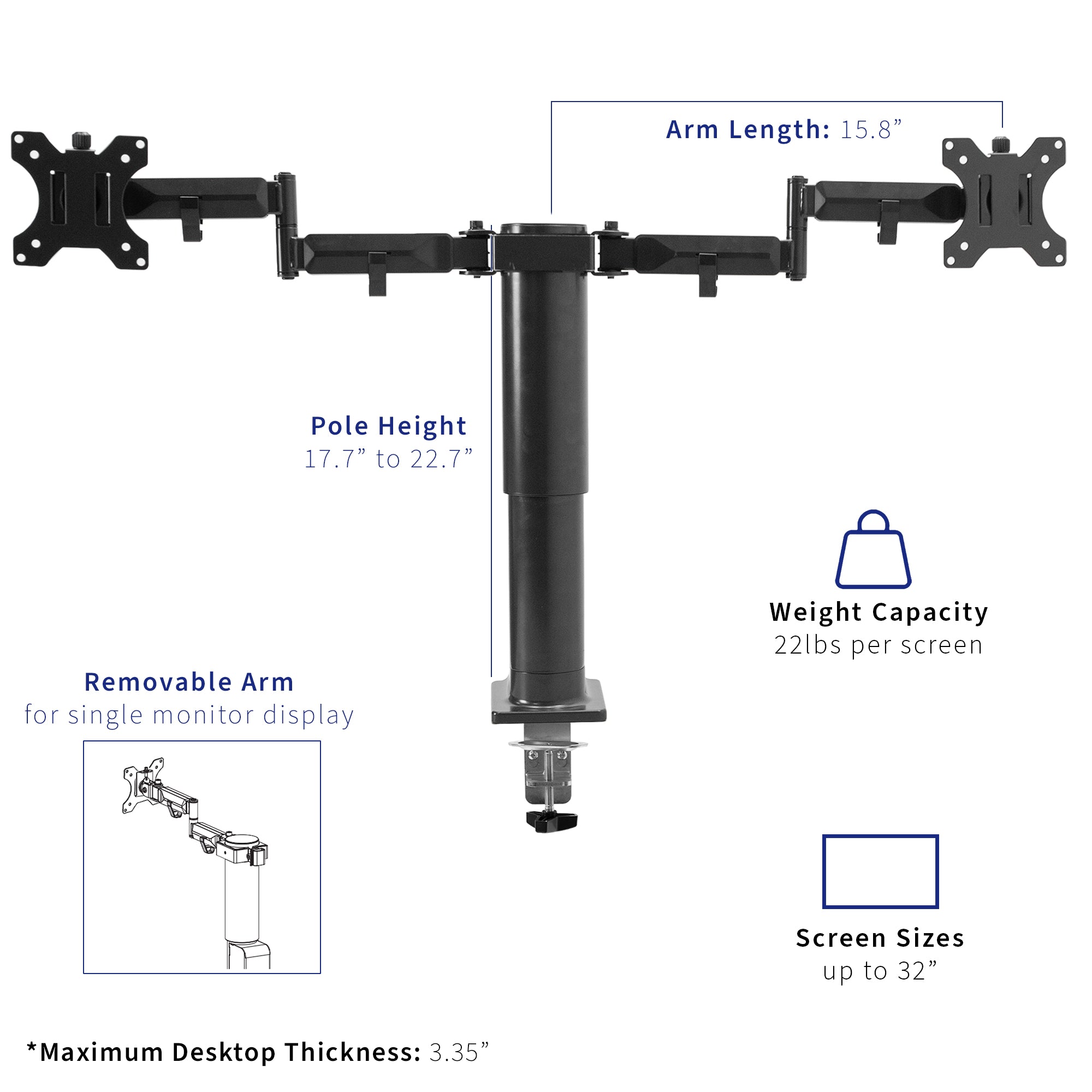

- --- Monitor Stand ---
- Pole Height Adjustment: 17.7” to 22.7”
- Arm Length (to center of pole): 15.8”

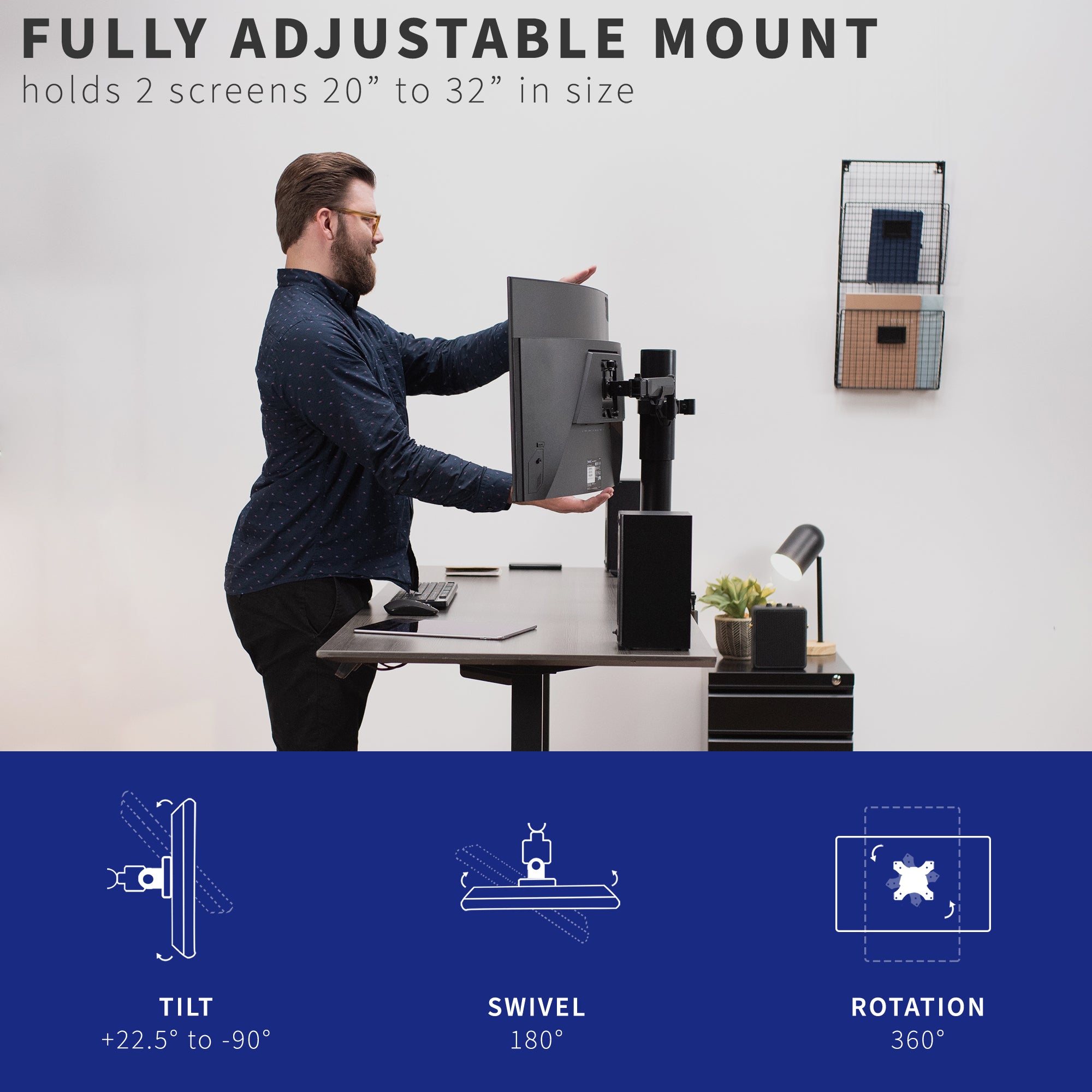

- Articulation: +22.5° to -90° tilt, 180° swivel, 360° rotation

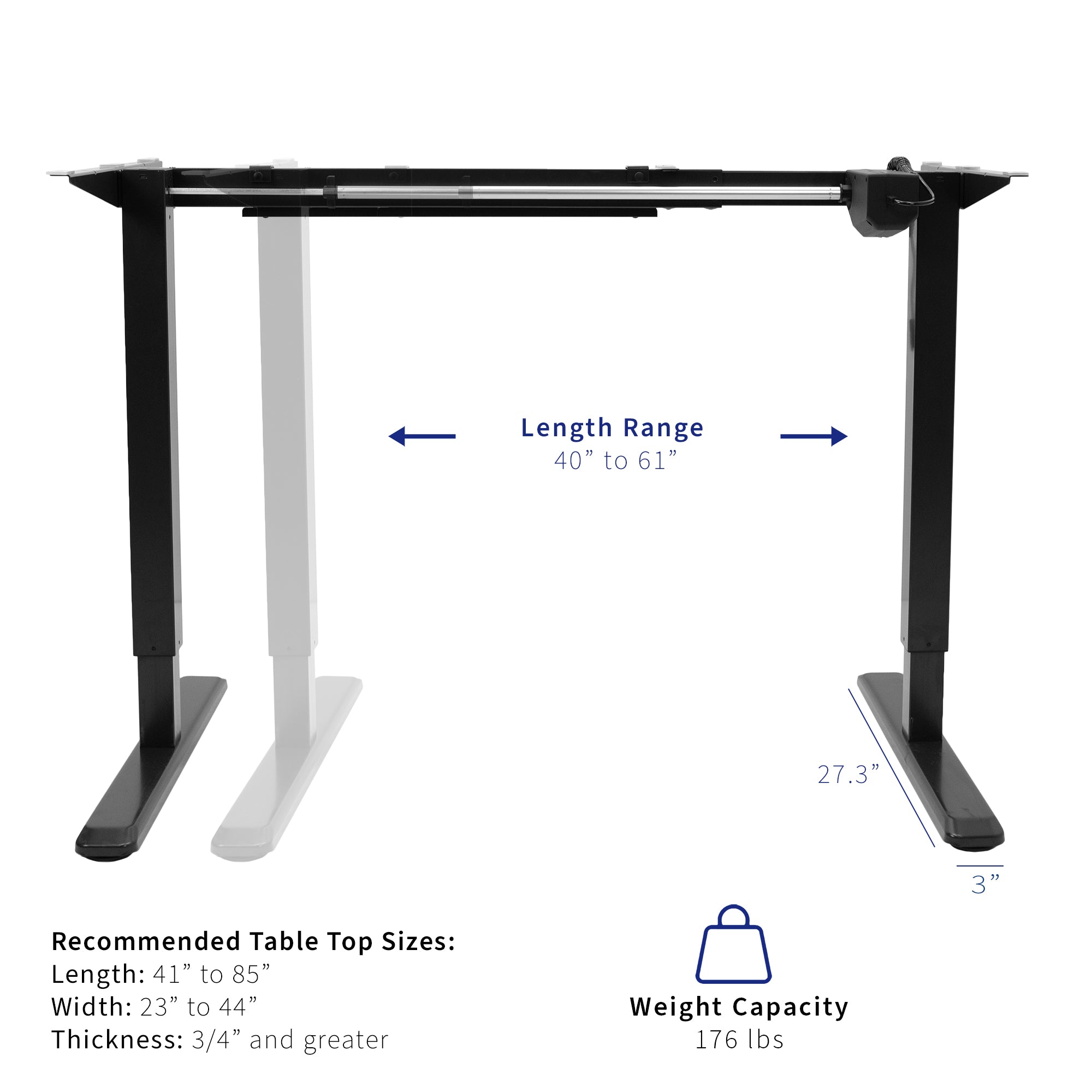

- -- Desk Frame ---
- Type: Electric (single motor)

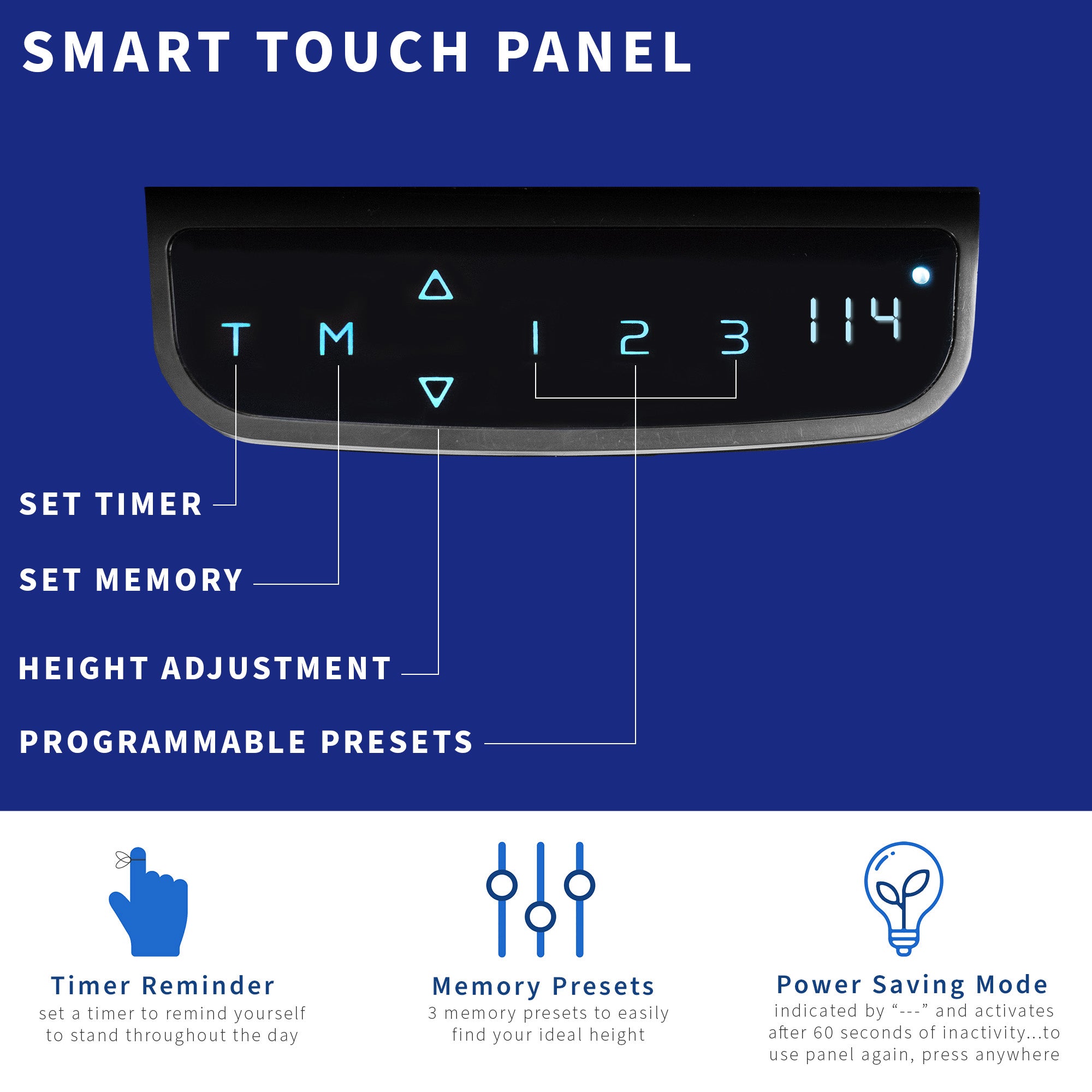

- Controller Type: Touch Screen (3 memory settings)
- Height Range: 28.7” to 48.5”
- Length Range: 40” to 61”
- Foot Length: 27.3”
- Input: 100V - 240V
- Maximum Speed: 1.5”/second
- Duty Cycle: 10%, Max. 2 minutes on/18 minutes off
Assembly Instructions
Prop 65 Warning
This product can expose you to chemicals including Diisononyl phthalate (DINP) which is known to the State of California to cause cancer and Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
